Whiteline Adjustable Rear Sway Bar Link for 2017-2020 BMW 230i xDrive 2 Series (F22/F23) KLC174

Whiteline

|

SKU: KLC174

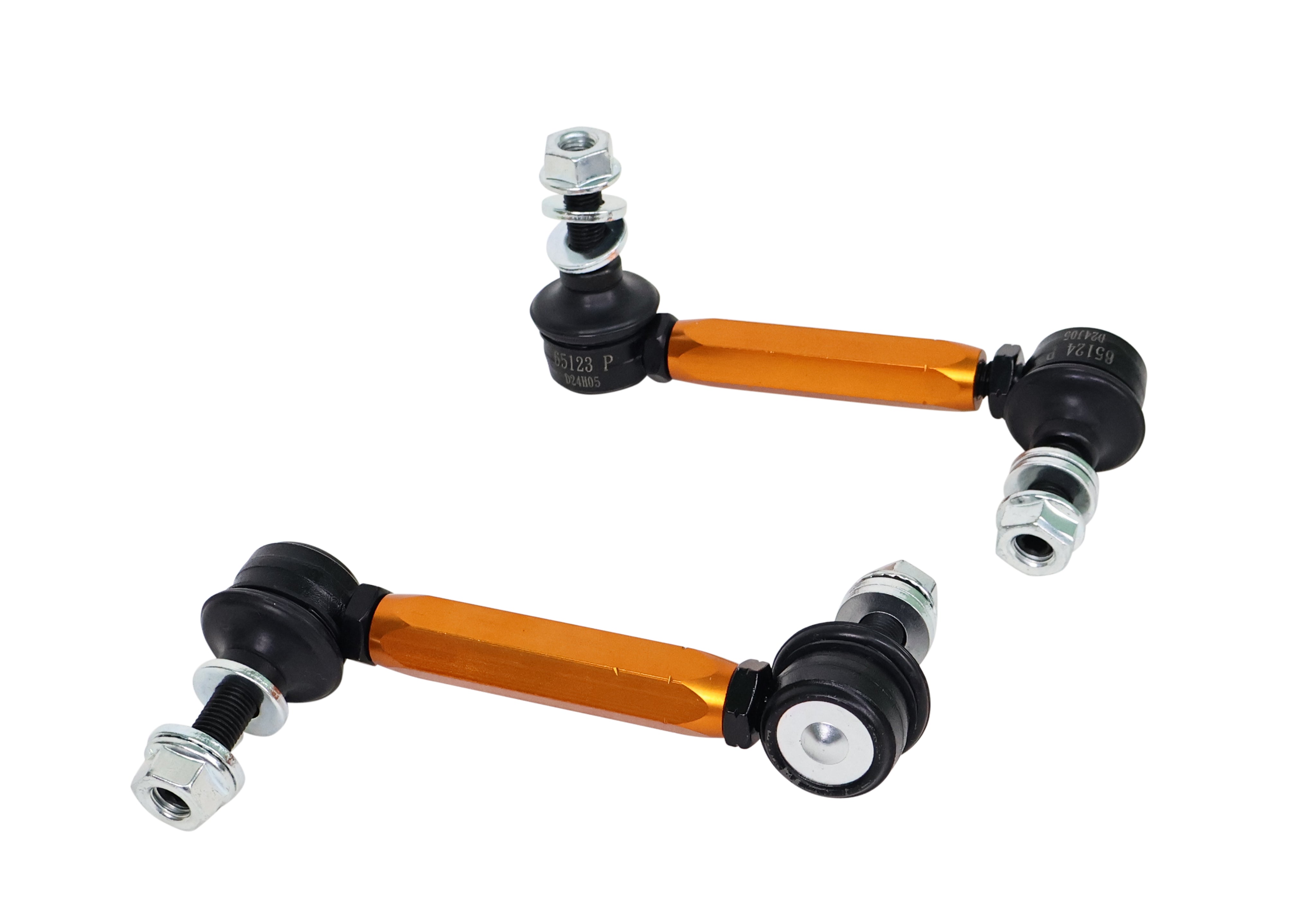

Whiteline Adjustable Rear Sway Bar Link for 2017-2020 BMW 230i xDrive 2 Series (F22/F23)

$169.09

MSRP $187.88 You save $18.79

Ask a question
In stock, ready to ship

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

Lifetime Manufacturer Warranty

All Whiteline products, except those listed below, are covered by a lifetime warranty against manufacturing defects in material and workmanship, valid for the original vehicle the product was installed on.

Whiteline Ball Joints, Tie Rod Ends, Bearings, Links and Springs are covered for 3 years or 60,000 km (36,000 miles), whichever comes first.

Exclusions
The warranty does not cover:

  • Incorrect installation or misuse.
  • Modification or alteration of parts.
  • Damage due to competition, motorsport, or off-road use.
  • Wear and tear from normal use.
  • Accidental or collision damage.

More Information

Product Details

This Whiteline Adjustable Rear Sway Bar Link fits the 2017-2020 BMW 230i xDrive 2 Series. This part is for the rear of the vehicle. Chassis code: F22/F23. Order it as part number KLC174. Included: 2 links. Application note: Adjustable Extra Heavy Duty.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. To go with it on the 230i xDrive 2 Series, see Rear Subframe Mount Bushing, Rear Lower Trailing Arm Bushing, and Rear Differential Mount Bushing.

Features

  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Preload-free setup: Setting the length on the car lets the bar rest without preload.
  • Install guide: Written install instructions are included with the part.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Construction: High-strength alloy gives the strength needed without much weight.
  • Hardware: Also in the box: locking nuts and washers.
Specifications
Part Number KLC174
Part Name Sway Bar Link
Vehicle 2017-2020 BMW 230i xDrive 2 Series
Chassis Code F22/F23
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 130-155 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased No
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
Fitment for 230i sway bar links

Fits the 2017-2020 BMW 230i xDrive 2 Series. Each model year is listed below.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2017BMW230iAWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
2018BMW230iAWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
2019BMW230iAWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
2020BMW230iAWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
