Product Details

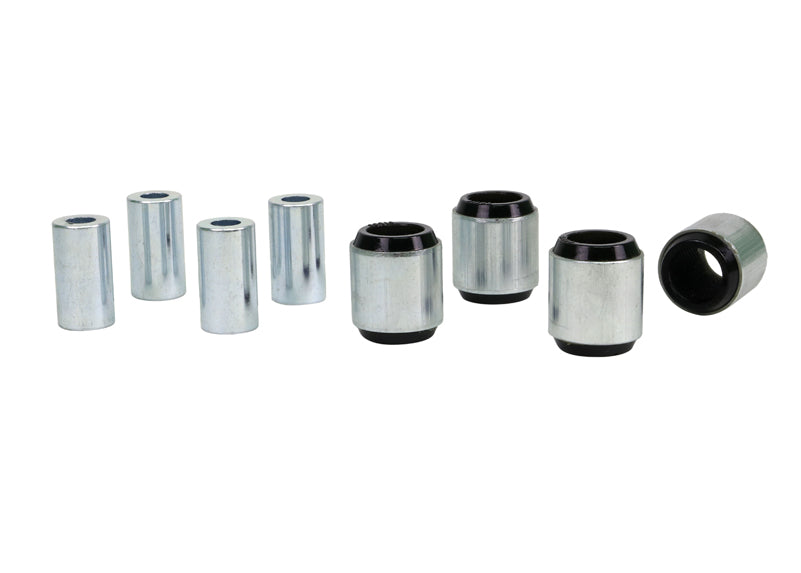

This Whiteline Rear Control Arm Lower Inner and Outer Bushing fits the 2012-2016 BMW 328i xDrive 3 Series. Order it as part number W63594. Placement: rear. In the box: 4 shell bushings and 4 tubes. Application note: Fits OEM Arm 33-32-6-792-533.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as moderate and lists about 2 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the 328i xDrive 3 Series: Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Rear Differential Mount Bushing.
Features
- Material: Built from polyurethane.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Install guide: An install guide comes in the box.
Specifications
| Part Number | W63594 |
| Part Name | Control Arm Bushing |
| Vehicle | 2012-2016 BMW 328i xDrive 3 Series |
| Chassis Code | F30 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 37 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits OEM Arm 33-32-6-792-533 |
Fitment for 328i control arm bushings
Fits the 2012-2016 BMW 328i xDrive 3 Series. Each model year is listed below.
