Product Details

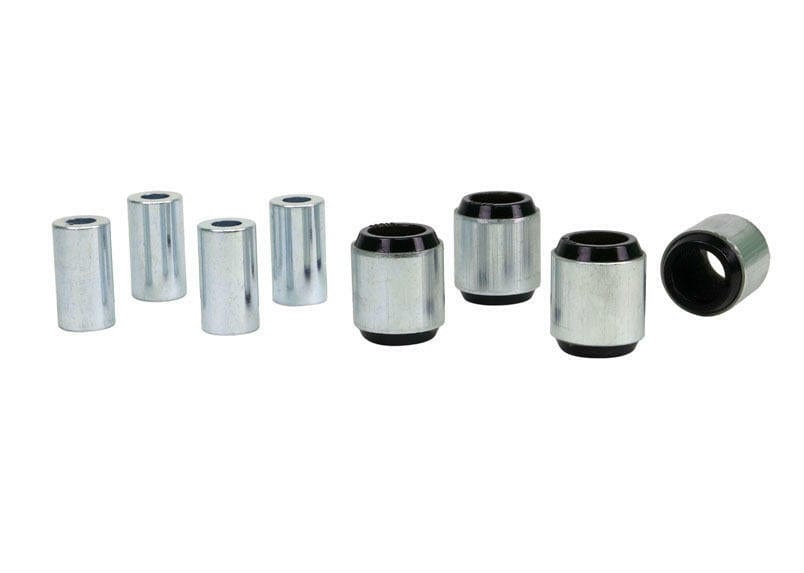

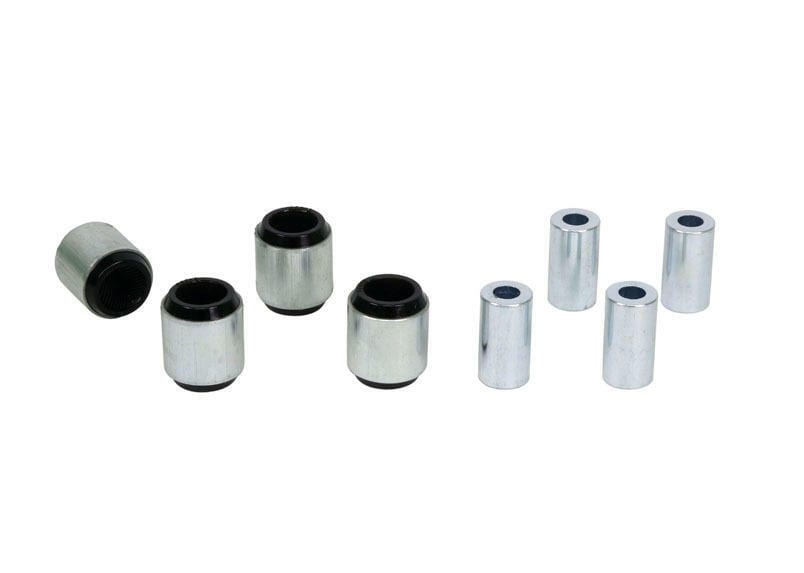

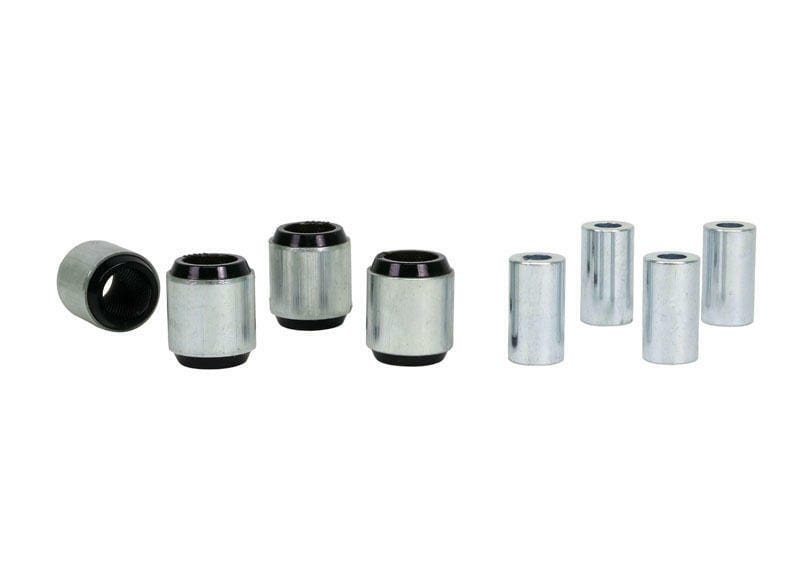

This Whiteline Rear Control Arm Lower Inner and Outer Bushing fits the 2014-2016 BMW 228i 2 Series. It is listed for the F22/F23 chassis. Whiteline's note for this fit: Fits OEM Arm 33-32-6-792-533. The part number is W63594. Placement: rear. You receive 4 shell bushings and 4 tubes.
Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.
Whiteline rates the install as moderate and lists about 2 hours. An alignment is required after installation. Other Whiteline parts we list for the 228i 2 Series: Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Front Sway Bar Link Assembly.
Features
- Install guide: An install guide comes in the box.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Bonded design: The bushing is bonded for strength where loads are highest.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Corrosion protection: A protective plating covers the metal components to guard against corrosion.
Specifications
| Part Number | W63594 |
| Part Name | Control Arm Bushing |
| Vehicle | 2014-2016 BMW 228i 2 Series |
| Chassis Code | F22/F23 |
| Drivetrain | RWD |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 37 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits OEM Arm 33-32-6-792-533 |
