Product Details

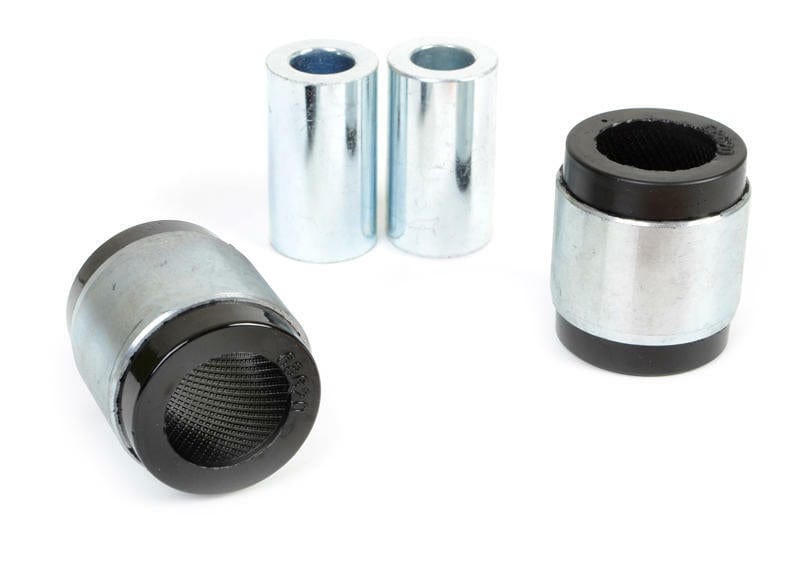

This Whiteline Rear Control Arm Lower Front Outer Bushing fits the 2008 Volkswagen Eos Turbo, VR6 (1F). Part number W63552. The kit contains 2 shell bushings and 2 tubes. Placement: rear.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as moderate and lists about 3 hours. Plan on a wheel alignment afterward. To go with it on the Volkswagen Eos, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.
Features
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Finish: Powder coating covers the metal for protection against chips and rust.
- Material: Polyurethane construction.
- Corrosion protection: Plated finish keeps rust off the hardware.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
| Part Number | W63552 |
| Part Name | Control Arm Bushing |
| Vehicle | 2008 Volkswagen Eos Turbo, VR6 |
| Chassis Code | 1F |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 40.4 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
