Product Details

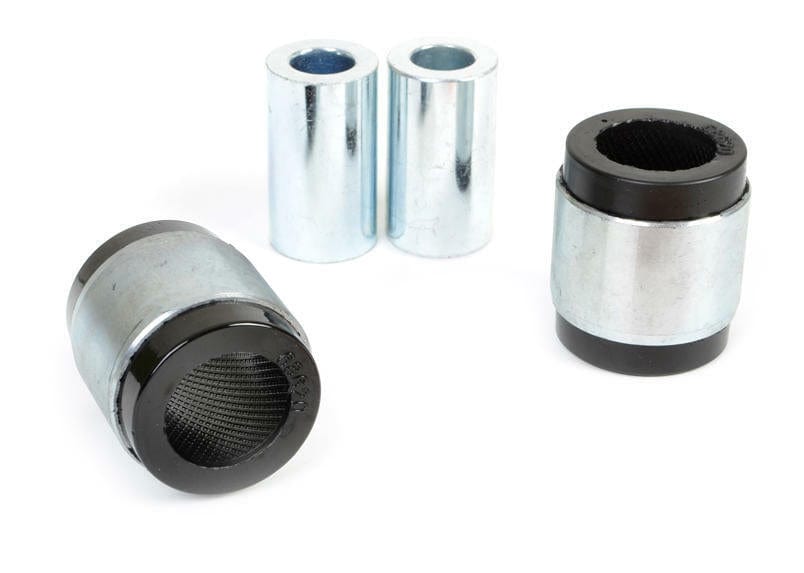

This Whiteline Rear Control Arm Lower Front Outer Bushing fits the 2008-2016 Volkswagen Eos Komfort (1F). You receive 2 shell bushings and 2 tubes. Whiteline part number: W63552. Position: rear.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. The polyurethane used here deflects much less than the original rubber under the same load.
Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Volkswagen Eos: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.
Features
- Bonded design: The bushing is bonded for extra strength under heavy loads.
- Material: Built from polyurethane.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Finish: The metal is powder coated, which resists corrosion and wear.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
| Part Number | W63552 |
| Part Name | Control Arm Bushing |
| Vehicle | 2008-2016 Volkswagen Eos Komfort |
| Chassis Code | 1F |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 40.4 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
