Product Details

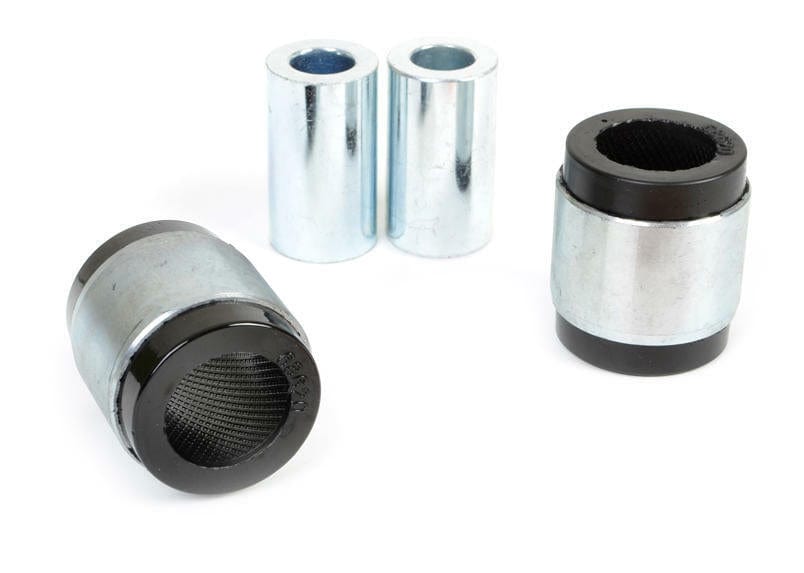

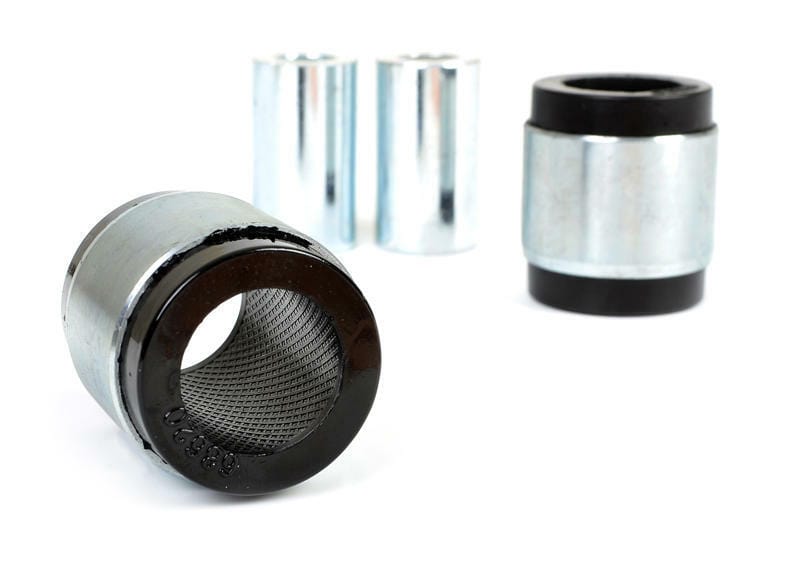

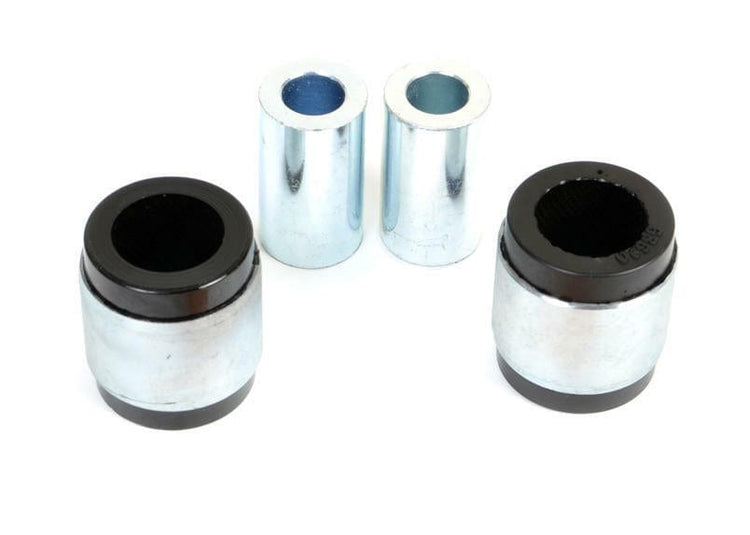

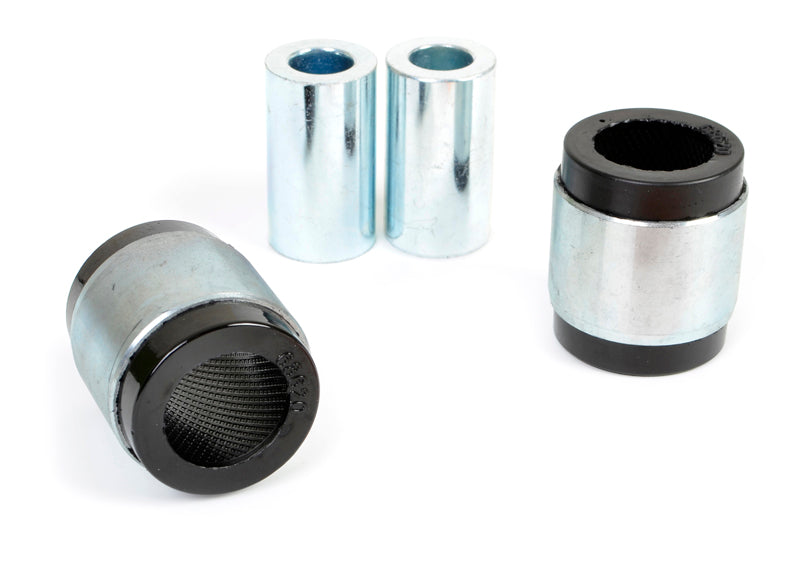

This Whiteline Rear Control Arm Lower Front Outer Bushing fits the 2008-2010 Volkswagen Passat Komfort (B6). It goes on the rear of the vehicle. Included: 2 shell bushings and 2 tubes. The part number is W63552.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a moderate job of about 3 hours. An alignment is required after installation. Other Whiteline parts we list for the Passat: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Material: The part is made of polyurethane.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Finish: A powder coated finish resists corrosion and wear.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
Part Number W63552
Part Name Control Arm Bushing
Vehicle 2008-2010 Volkswagen Passat Komfort
Chassis Code B6
Drivetrain FWD
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 40.4 mm
Bushing Quantity 2 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolkswagenPassatFWD
2009VolkswagenPassatFWD
2010VolkswagenPassatFWD
