Product Details

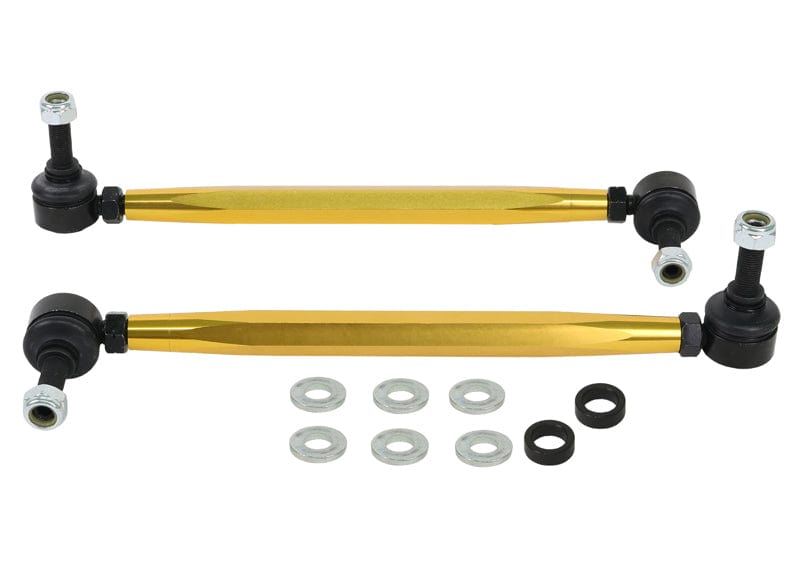

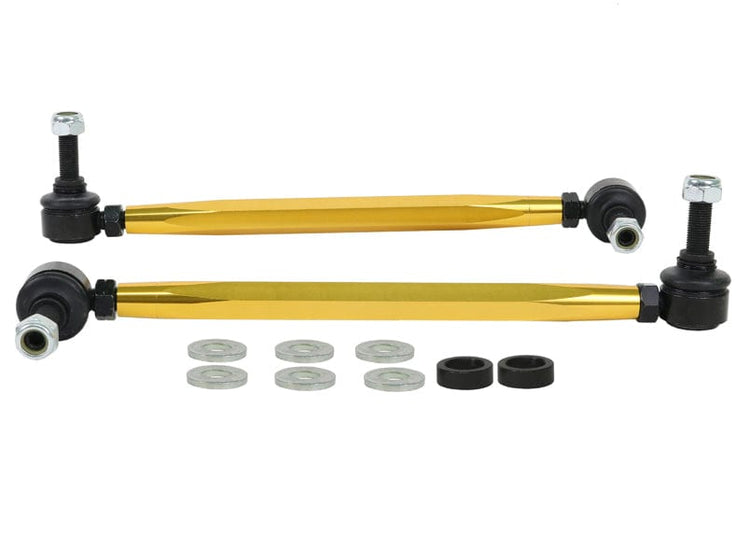

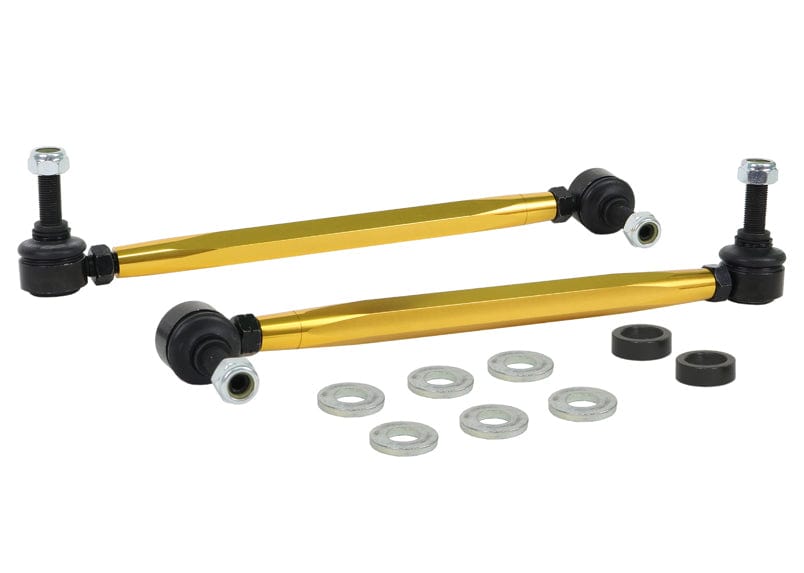

This Whiteline Adjustable Front Sway Bar Link fits the 2008-2010 Volkswagen Passat Komfort (B6). This part is for the front of the vehicle. The kit contains 2 links. Application note: Adjustable Extra Heavy Duty. The part number is KLC167A.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Expect a moderate job of about 1 hour. No alignment is needed afterward. We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Front and Rear Sway Bar Kit for the Passat.

Features

  • Preload-free setup: Setting the length on the car lets the bar rest without preload.
  • Construction: High-strength alloy gives the strength needed without much weight.
  • Install guide: An install guide comes in the box.
  • Hardware: The kit includes locking nuts and washers.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
  • Anodized alloy: The alloy carries an anodized finish for durability.
Specifications
Part Number KLC167A
Part Name Sway Bar Link
Vehicle 2008-2010 Volkswagen Passat Komfort
Chassis Code B6
Drivetrain FWD
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 320-345 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolkswagenPassatFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2009VolkswagenPassatFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
2010VolkswagenPassatFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
