Product Details

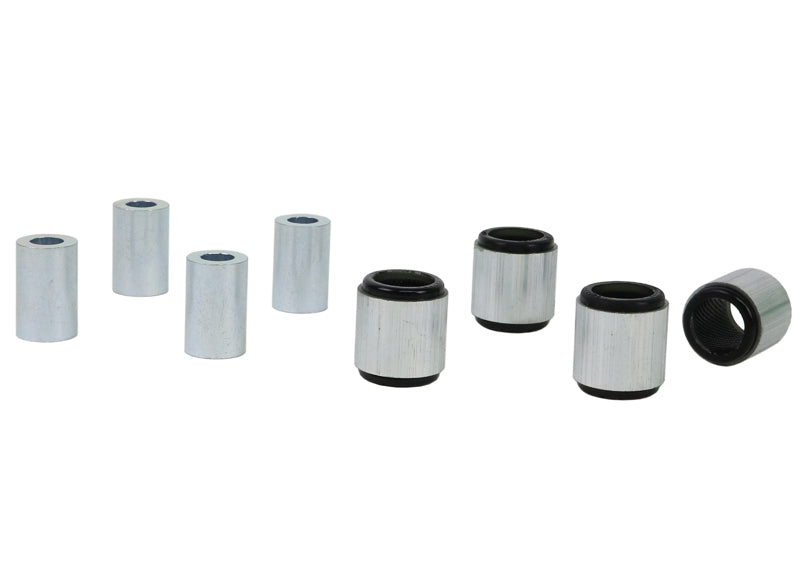

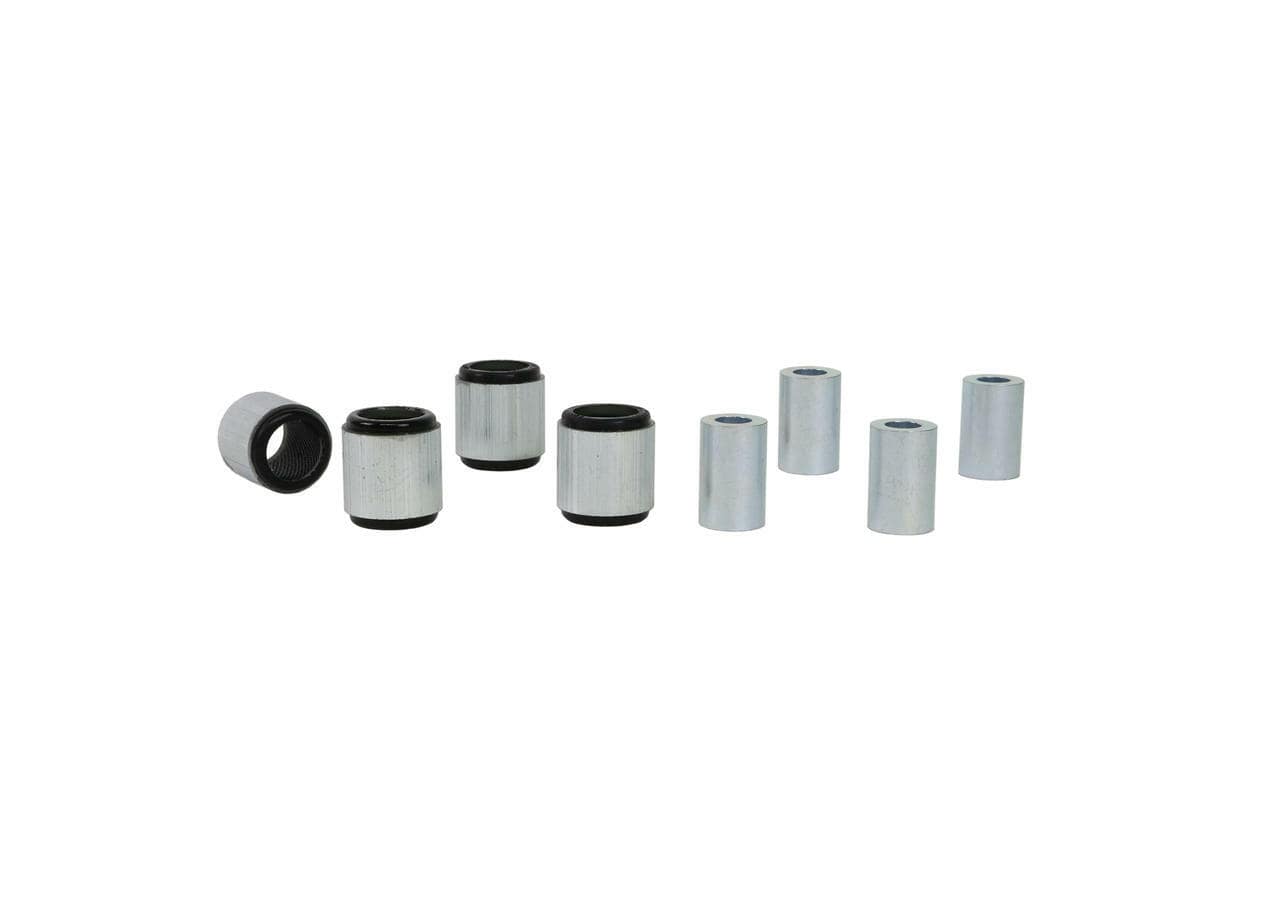

This Whiteline Rear Control Arm Lower Front Inner and Outer Bushing fits the 2009-2012 Ford Focus SEL (C307). Part number W63320. The kit contains 4 shell bushings and 4 tubes. Placement: rear. Chassis code: C307.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 3 hours of work listed. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Focus: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Material: Built from polyurethane.
Specifications
Part Number W63320
Part Name Control Arm Bushing
Vehicle 2009-2012 Ford Focus SEL
Chassis Code C307
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 32 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009FordFocusFWD
2010FordFocusFWD
2011FordFocusFWD
2012FordFocusFWD
