Product Details

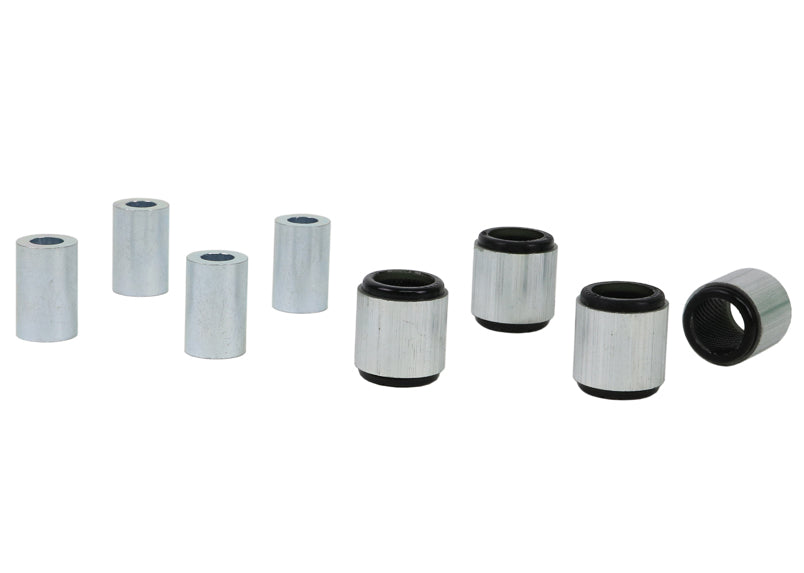

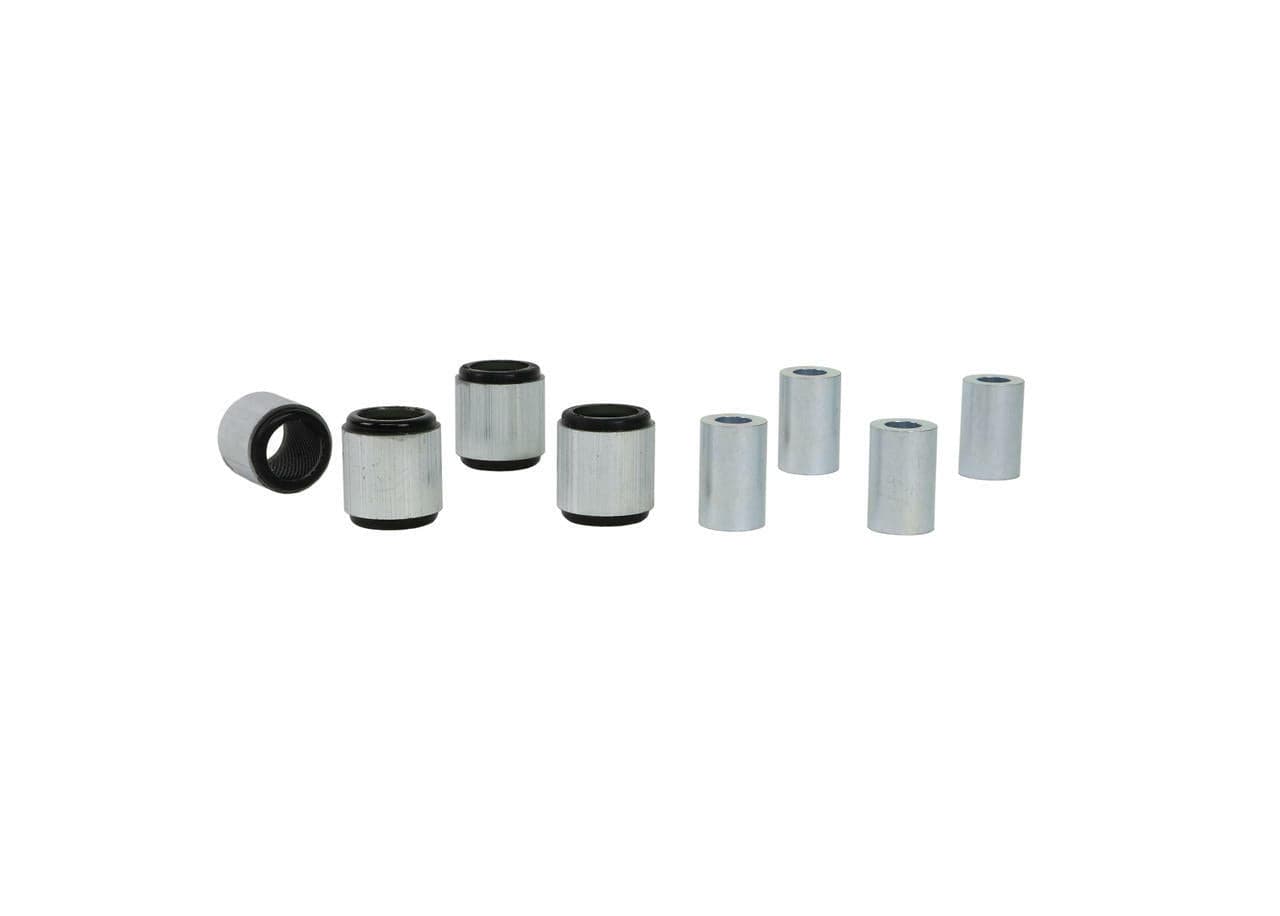

This Whiteline Rear Control Arm Lower Front Inner and Outer Bushing fits the 2004-2009 Mazda 3 i, S (BK). The part number is W63320. Placement: rear. You receive 4 shell bushings and 4 tubes.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the Mazda 3: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Material: The part is made of polyurethane.
Specifications
Part Number W63320
Part Name Control Arm Bushing
Vehicle 2004-2009 Mazda 3 i, S
Chassis Code BK
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 32 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004MazdaMazda 3FWD
2005MazdaMazda 3FWD
2006MazdaMazda 3FWD
2007MazdaMazda 3FWD
2008MazdaMazda 3FWD
2009MazdaMazda 3FWD
