Product Details

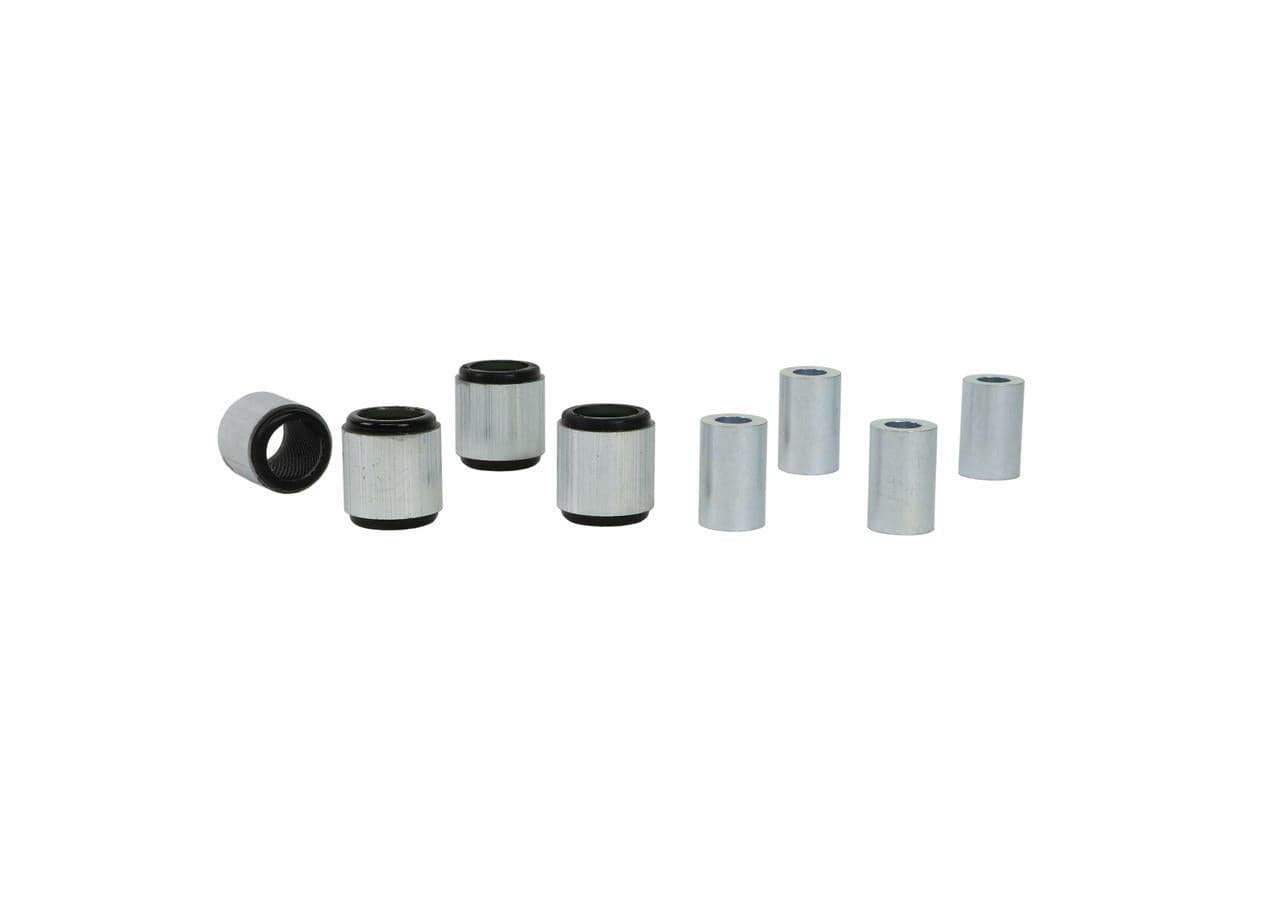

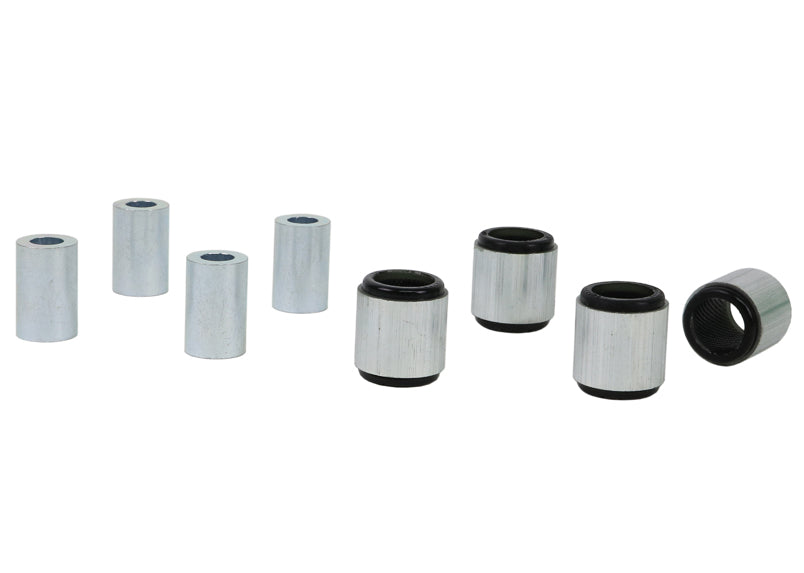

This Whiteline Rear Control Arm Lower Front Inner and Outer Bushing fits the 2002-2006 Ford Focus ZX5 (C170). It goes on the rear of the vehicle. In the box: 4 shell bushings and 4 tubes. Order it as part number W63320.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. To go with it on the Focus, see Adjustable Front Sway Bar Link, Rear Sway Bar Link, and Heavy Duty Blade Adjustable 22mm Rear Sway Bar.
Features
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Material: Polyurethane construction.
- Bonded design: Bonding adds durability in high-load use.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Grease: Molybdenum disulfide grease is included to help the parts last.
Specifications
| Part Number | W63320 |
| Part Name | Control Arm Bushing |
| Vehicle | 2002-2006 Ford Focus ZX5 |
| Chassis Code | C170 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 32 mm |
| Bushing Quantity | 4 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Shell Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
