Product Details

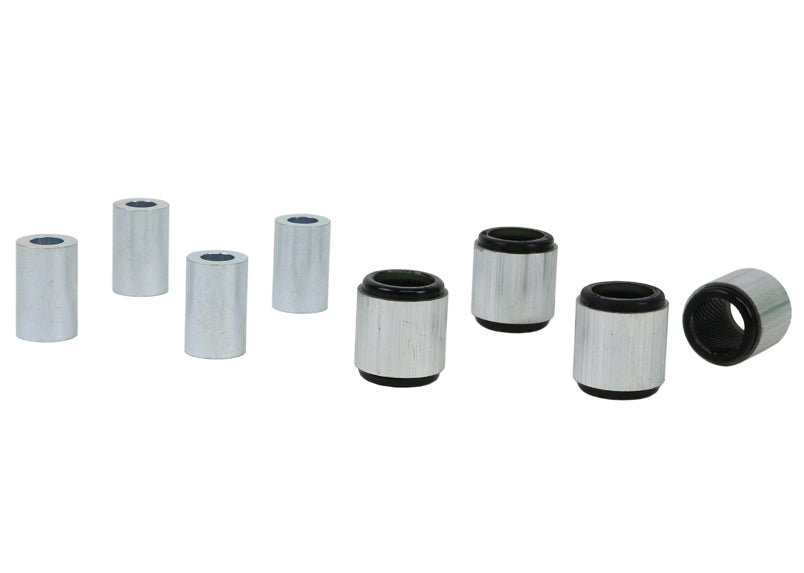

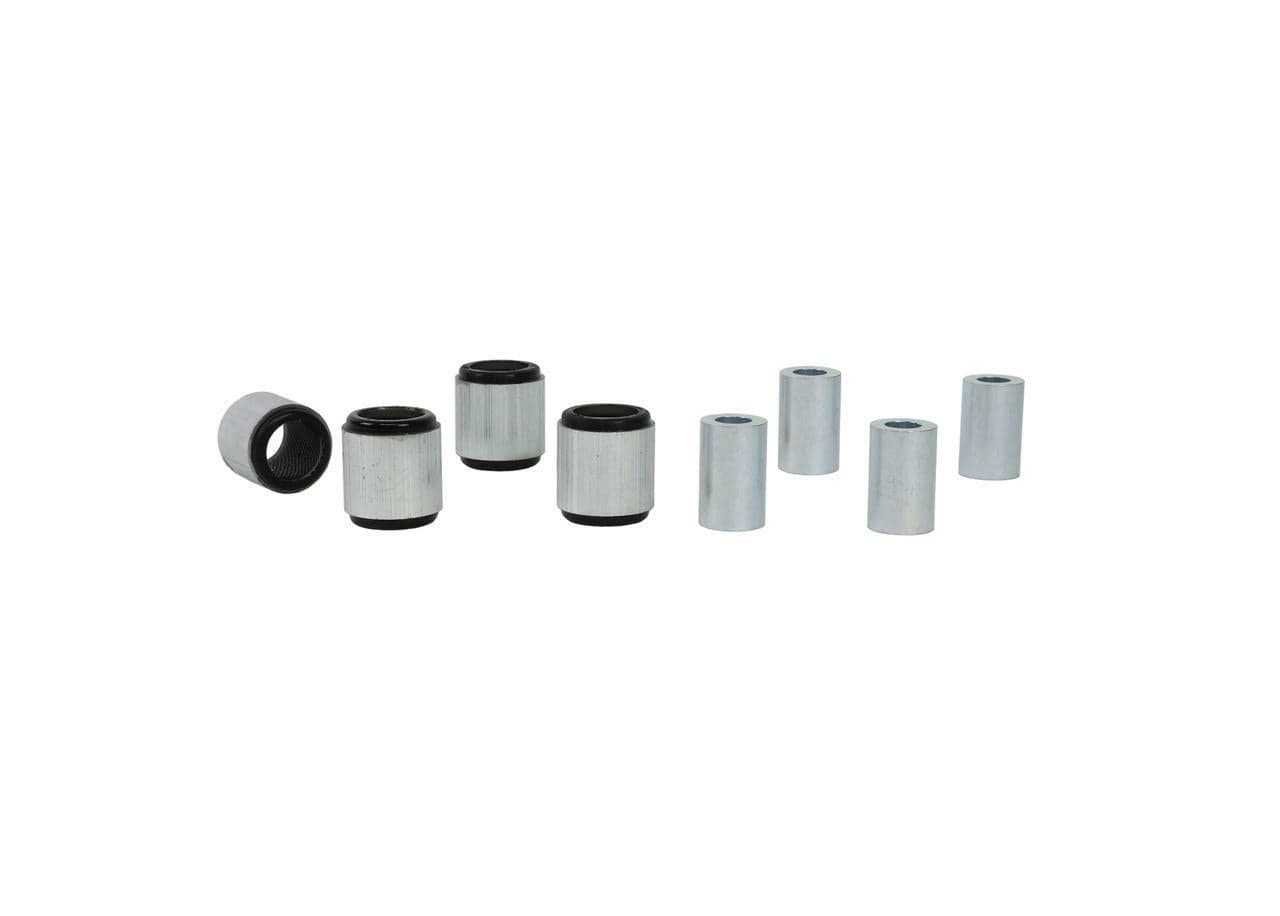

This Whiteline Rear Control Arm Lower Front Inner and Outer Bushing fits the 2000-2004 Ford Focus LX, ZTS (C170). You receive 4 shell bushings and 4 tubes. Position: rear. Whiteline part number: W63320. Chassis code: C170.

Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 3 hours. An alignment is required after installation. To go with it on the Focus, see Adjustable Front Sway Bar Link, Rear Sway Bar Link, and Heavy Duty Blade Adjustable 22mm Rear Sway Bar.

Features

  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Material: Made from polyurethane.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
Part Number W63320
Part Name Control Arm Bushing
Vehicle 2000-2004 Ford Focus LX, ZTS
Chassis Code C170
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 32 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Shell Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2000FordFocusFWD
2001FordFocusFWD
2002FordFocusFWD
2003FordFocusFWD
2004FordFocusFWD
