Product Details

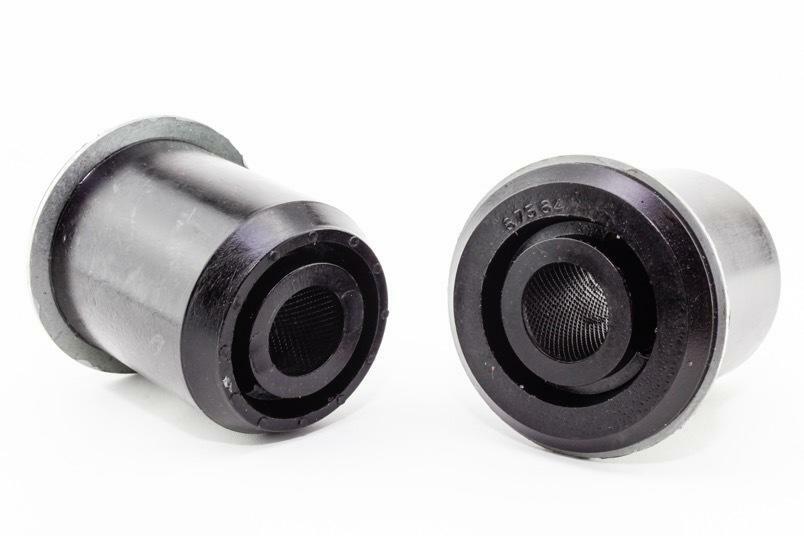

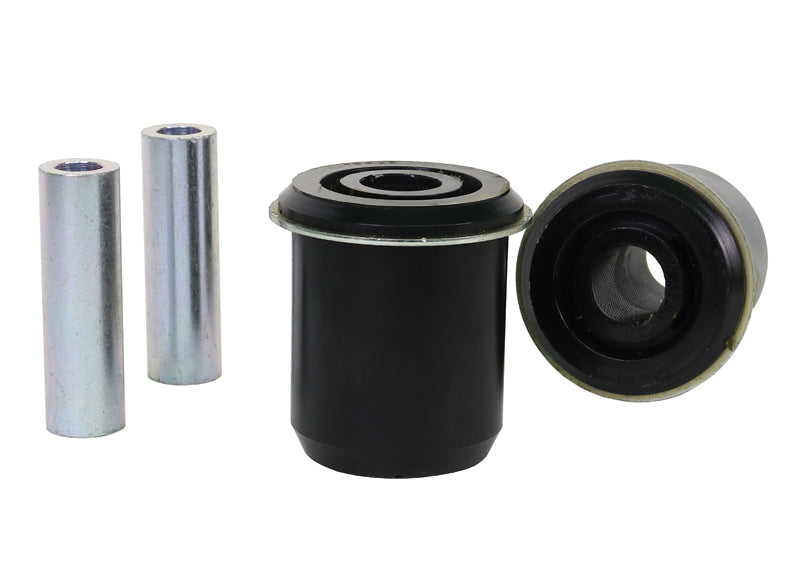

This Whiteline Rear Control Arm Lower Front Bushing fits the 2009 Land Rover LR3 HSE Lux (L319). Whiteline part number: W63422. Position: rear. Chassis code: L319. Included: 2 bushings and 2 tubes.
A control arm bushing is the pivot where the arm joins the chassis or the wheel carrier. Factory rubber is chosen for quiet and comfort, so it squashes under braking, acceleration, and cornering and lets the arm move more than it should. A firmer replacement keeps the arm where it belongs, which steadies the alignment and gives the car a more consistent feel. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as moderate and lists about 3 hours. An alignment is required after installation. Other Whiteline parts we list for the Land Rover LR3: Front Control Arm Lower Inner Rear Bushing and Rear Sway Bar Link.
Features
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Finish: The metal parts are powder coated for durability.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Material: The part is made of polyurethane.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Install guide: Instructions for fitting are packed in the box.
Specifications
| Part Number | W63422 |
| Part Name | Control Arm Bushing |
| Vehicle | 2009 Land Rover LR3 HSE Lux |
| Chassis Code | L319 |
| Bushing 1 Inner Diameter | 16.2 mm |
| Bushing 1 Outer Diameter | 70.2 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
