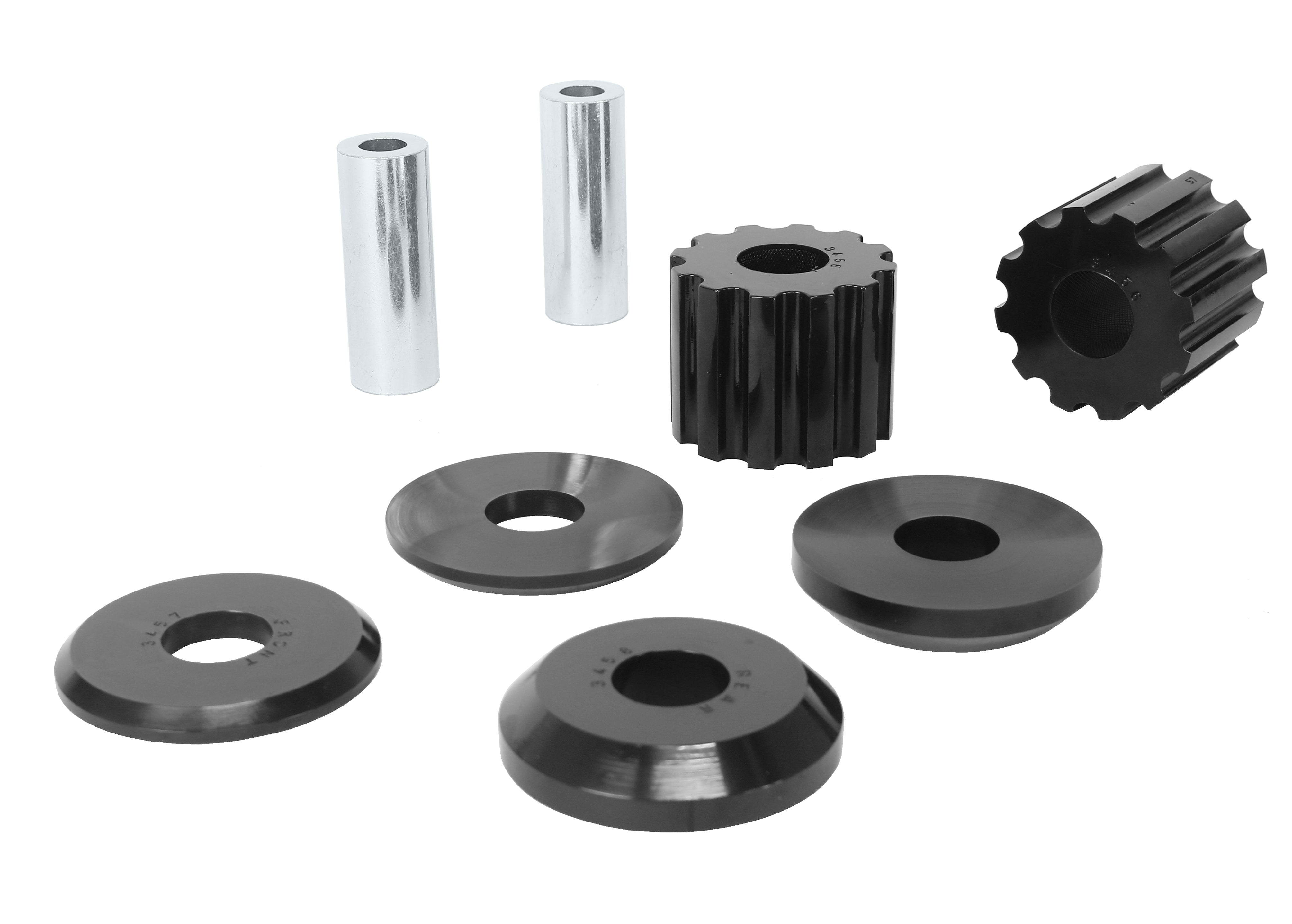

This Whiteline Front Control Arm Lower Inner Rear Bushing fits the 2005-2009 Land Rover LR3 HSE (L319). Order it as part number W53480. In the box: 6 bushings and 2 tubes. This part is for the front of the vehicle.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as difficult and lists about 3 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Land Rover LR3: Rear Sway Bar Link and Rear Control Arm Lower Front Bushing.

Features

  • Install guide: Step-by-step installation instructions come with it.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Material: Built from polyurethane.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
Specifications
Part Number W53480
Part Name Control Arm Bushing
Vehicle 2005-2009 Land Rover LR3 HSE
Chassis Code L319
Drivetrain 4WD
Bushing 1 Inner Diameter 16 mm
Bushing 1 Outer Diameter 71.3 mm
Bushing Quantity 6 Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 3
Kit Contents 6 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005Land RoverLR34WD
2006Land RoverLR34WD
2007Land RoverLR34WD
2008Land RoverLR34WD
2009Land RoverLR34WD
