Product Details

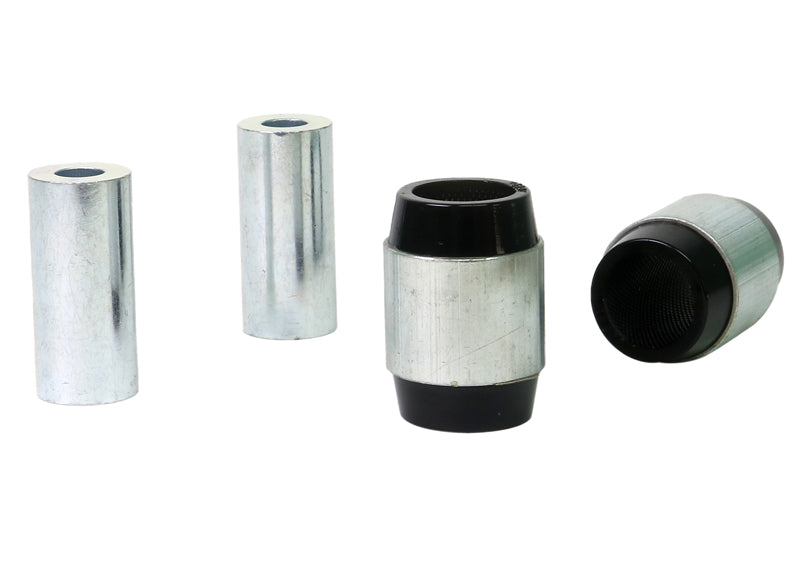

This Whiteline Rear Control Arm Bushing fits the 2013-2018 BMW 320i 3 Series (F30/F31). You receive 2 shell bushings and 2 tubes. Whiteline's note for this fit: Fits Inner Position of OEM Arm 33-32-6-867-540. Order it as part number W63592. It goes on the rear of the vehicle.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. The polyurethane used here deflects much less than the original rubber under the same load.
Expect a moderate job of about 2 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Front Sway Bar Link Assembly for the 320i 3 Series.
Features
- Install guide: Instructions for fitting are packed in the box.
- Material: The part is made of polyurethane.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Corrosion protection: Plated finish keeps rust off the hardware.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
| Part Number | W63592 |
| Part Name | Control Arm Bushing |
| Vehicle | 2013-2018 BMW 320i 3 Series |
| Chassis Code | F30/F31 |
| Drivetrain | RWD |
| Bushing 1 Inner Diameter | 14.4 mm |
| Bushing 1 Outer Diameter | 45.2 mm |
| Bushing Quantity | 2 Shell Bushings |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 2 Shell Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits Inner Position of OEM Arm 33-32-6-867-540 |
