Product Details

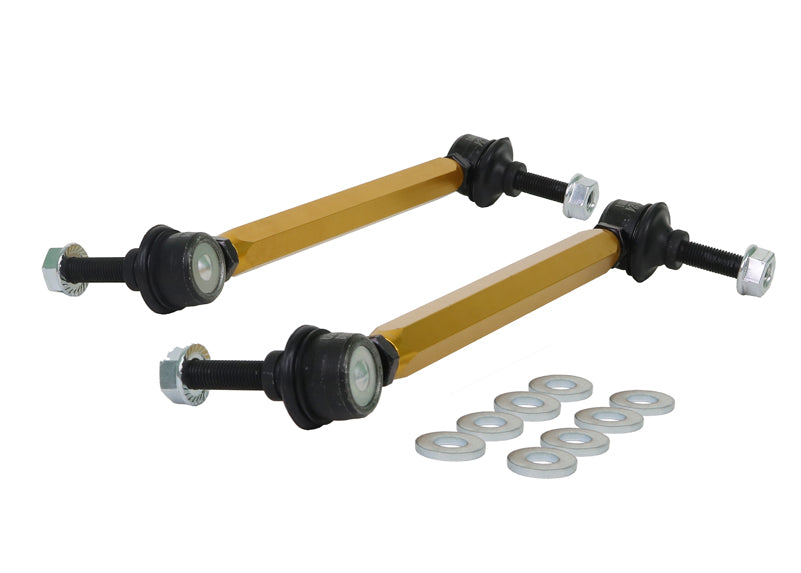

This Whiteline Front Sway Bar Link Assembly fits the 2013-2018 BMW 320i 3 Series. Position: front. Whiteline's note for this fit: Adjustable extra heavy duty. Whiteline part number: KLC140-255. Included: 2 links.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Expect a moderate job of about 1 hour. No alignment is needed afterward. Working on the same car? We also list Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Rear Lower Trailing Arm Bushing for the 320i 3 Series.
Features
- Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Install guide: Instructions for fitting are packed in the box.
- Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
- Pre-greased: Joints arrive pre-greased and ready to install.
- Construction: High-strength alloy gives the strength needed without much weight.
Specifications
| Part Number | KLC140-255 |
| Part Name | Sway Bar Link |
| Vehicle | 2013-2018 BMW 320i 3 Series |
| Chassis Code | F30/F31 |
| Drivetrain | RWD |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 250-275 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm. |
Fitment for 320i sway bar links
Fits the 2013-2018 BMW 320i 3 Series. Each model year is listed below.
