Product Details

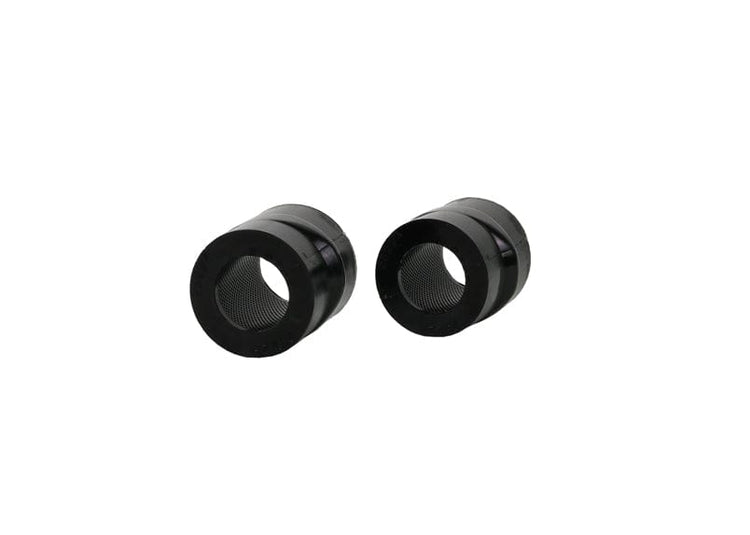

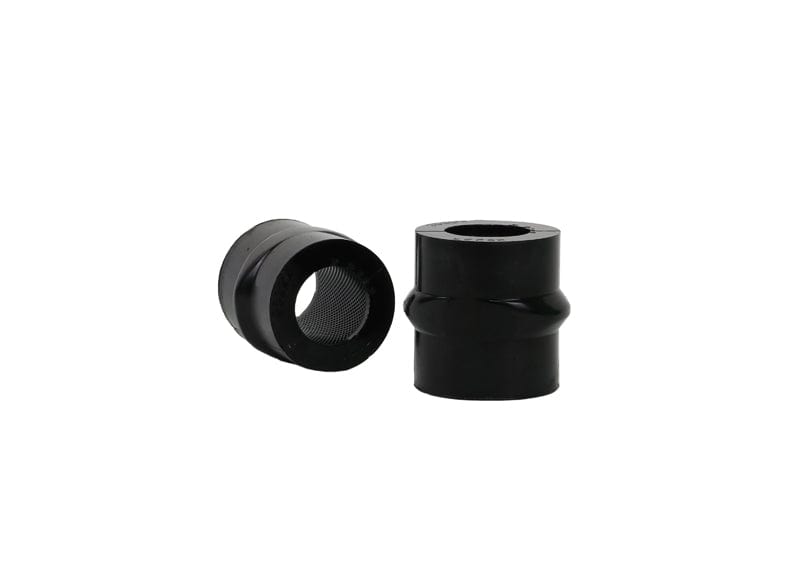

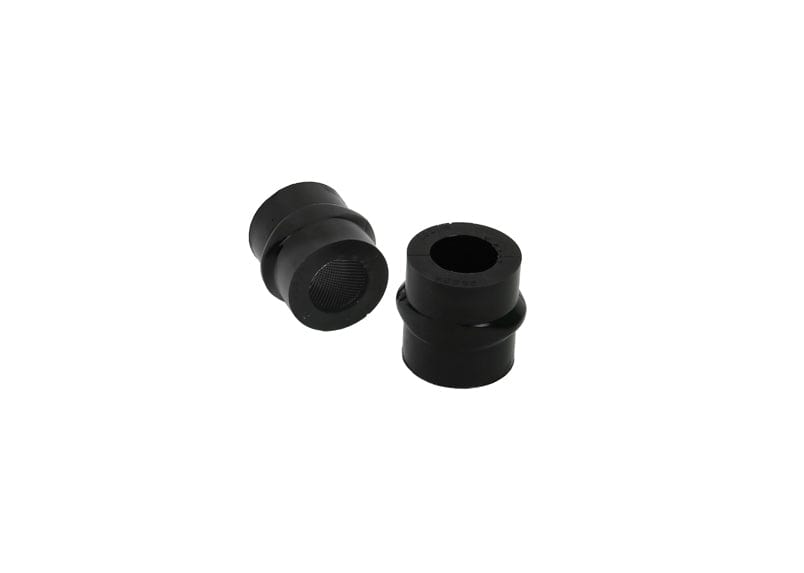

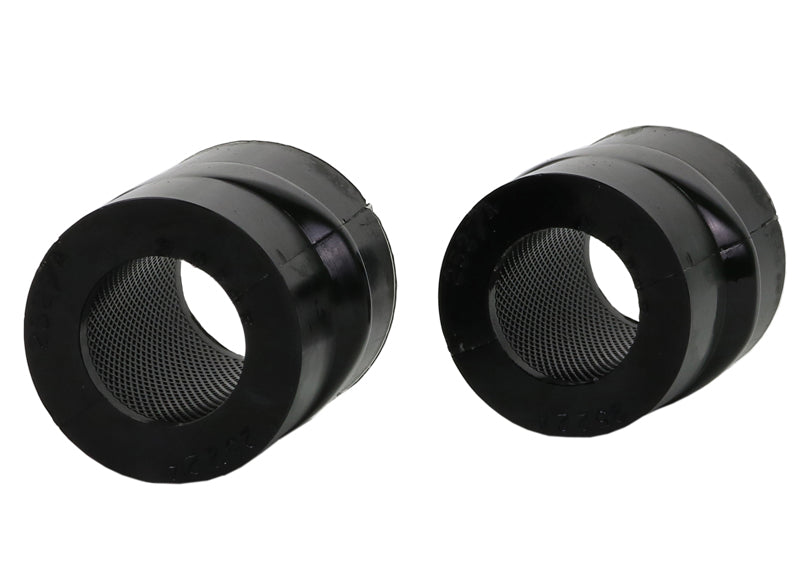

This Whiteline 30mm Front Sway Bar Bushing Kit fits the 2005-2011 Chrysler 300C Touring (LX). In the box: 2 bushings. Placement: front. The part number is W23328.
The sway bar sits in rubber bushings that let it rotate as it twists. When those bushings wear or compress, the bar slides and shifts in its mounts, which causes clunking and a slight delay before it begins to resist roll. Replacement bushings hold the bar in its proper place while still letting it turn.
Whiteline rates the install as easy and lists about 1 hour. A wheel alignment is not required. We also list Front and Rear Sway Bar Kit, Rear Trailing Arm Lower Front Bushing, and Rear Subframe Mount Bushing for the 300C.
Features
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
Specifications
| Part Number | W23328 |
| Part Name | Sway Bar Bushing |
| Vehicle | 2005-2011 Chrysler 300C Touring |
| Drivetrain | RWD/AWD |
| Chassis Code | LX |
| Bar Diameter | 30 mm |
| Grade Type | Regular |
| Grease Fitting Included | No |
| Inside Diameter | 29.5 mm |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Bushings |
| Mounting Hardware Included | No |
| Outside Diameter | 53.5 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | - |
