Product Details

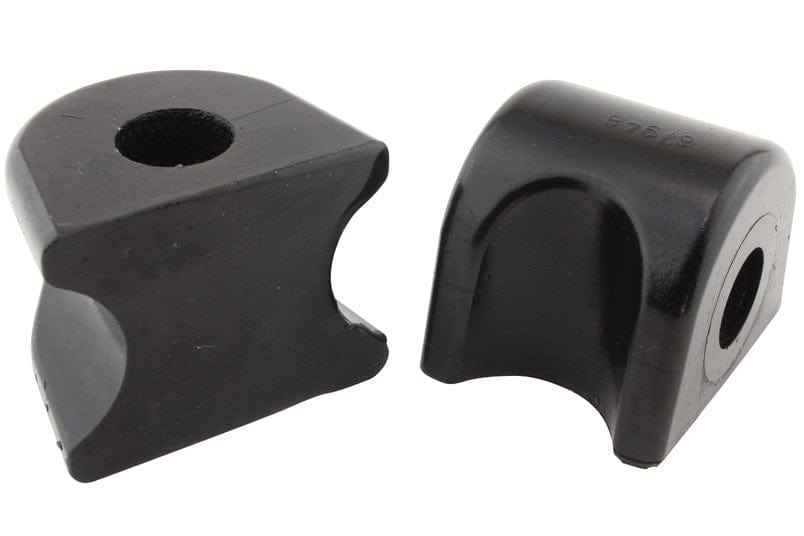

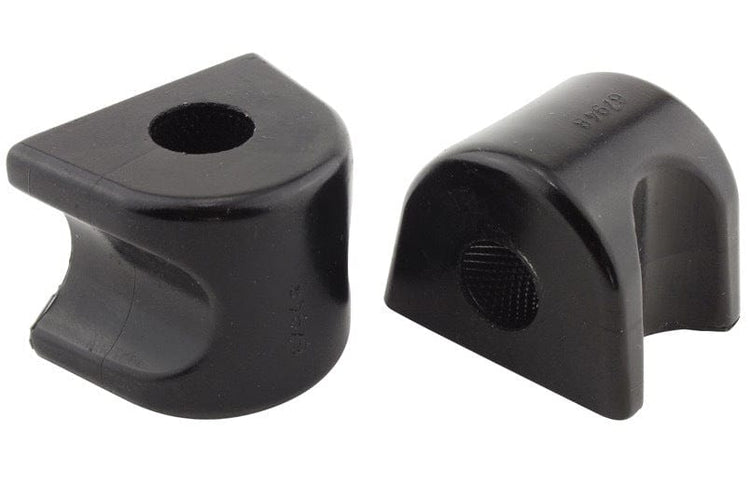

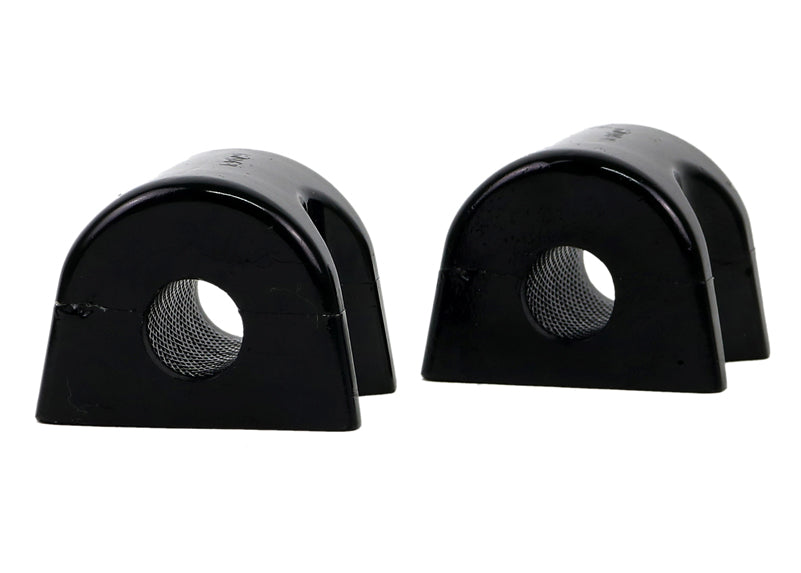

This Whiteline Front Sway Bar Bushing Kit fits the 2013-2016 Scion FR-S Base (ZN6). It goes on the front of the vehicle. The kit contains 2 bushings. Order it as part number W23447.

Sway bar mount bushings work as the bearings of the roll-control system. They need to hold the bar firmly without binding, and they have to cope with constant twisting. A new set restores that balance and quiets the knocks that worn ones make.

Whiteline rates the install as easy and lists about 1 hour. A wheel alignment is not required. To go with it on the FR-S, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
Specifications
Part Number W23447
Part Name Sway Bar Bushing
Vehicle 2013-2016 Scion FR-S Base
Chassis Code ZN6
Bar Diameter 18 mm
Grade Type Regular
Grease Fitting Included No
Inside Diameter 18 mm
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Bushings
Mounting Hardware Included No
Outside Diameter 43.5 mm
Vehicle Placement Front
Wheel Alignment Required No
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2013ScionFR-SRWD
2014ScionFR-SRWD
2015ScionFR-SRWD
2016ScionFR-SRWD
