Product Details

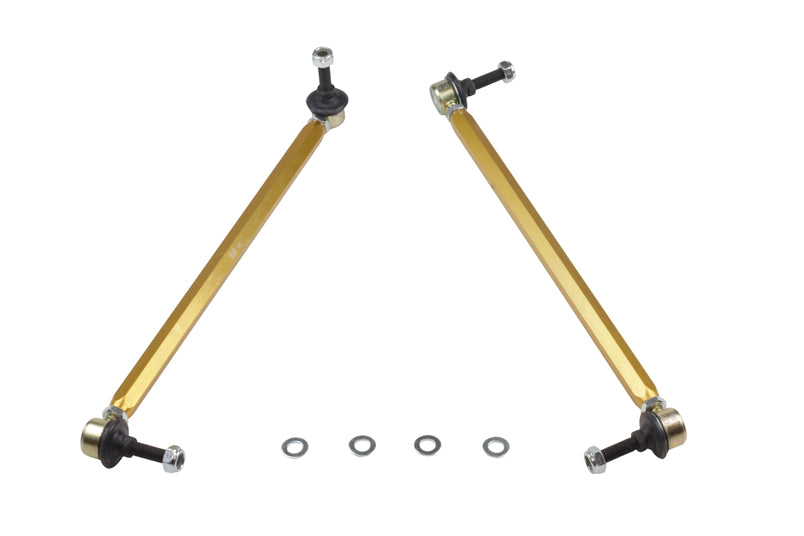

This Whiteline Front Sway Bar Link (Standard Repl.) fits the 2014 Chevrolet Camaro Z28 (Zeta). Application note: Adjustable Extra Heavy Duty. The kit contains 2 links. Whiteline part number: KLC177. It goes on the front of the vehicle.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. To go with it on the Camaro, see Front and Rear Sway Bar Kit, Front Steering Rack And Pinion Mount Bushing, and Rear Subframe Mount Bushing.

Features

  • Pre-greased: Joints arrive pre-greased and ready to install.
  • Hardware: Supplied with locking nuts and washers.
  • Construction: Made from strong, light alloy.
  • Anodized alloy: The alloy is anodized, adding a durable protective layer.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
Specifications
Part Number KLC177
Part Name Sway Bar Link
Vehicle 2014 Chevrolet Camaro Z28
Chassis Code Zeta
Adjustable Yes
Bolt Thread Diameter 10 mm
Bushings Included Yes
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 390-415 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Standard height vehicle replacement with 10mm studs - Adjustable Extra Heavy Duty. Length 390-415mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2014ChevroletCamaroRWDStandard height vehicle replacement with 10mm studs - Adjustable Extra Heavy Duty. Length 390-415mm.
