Product Details

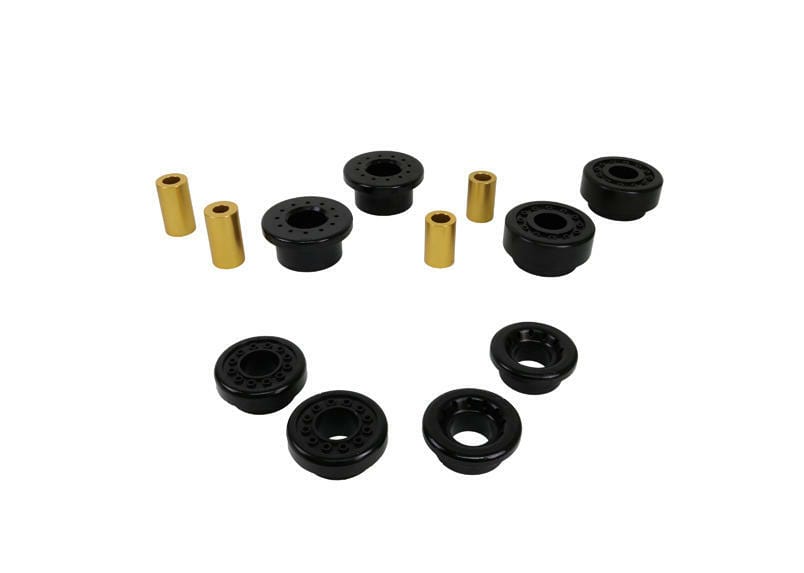

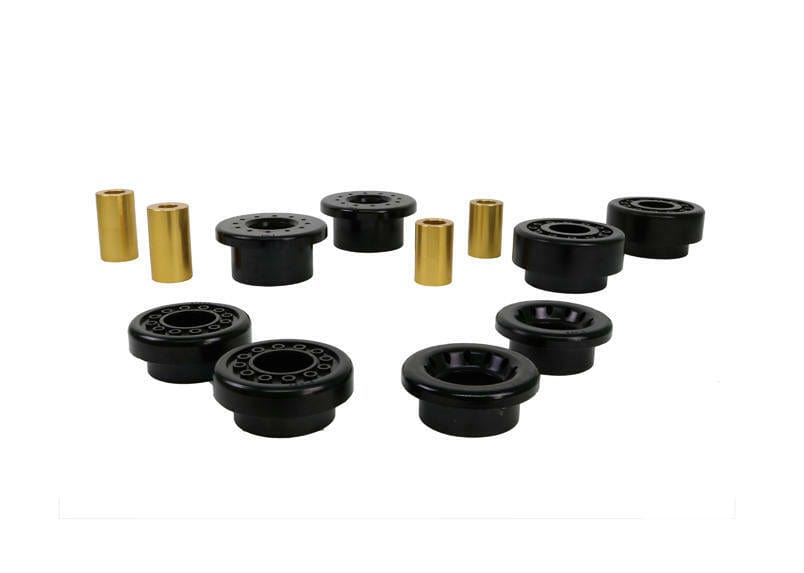

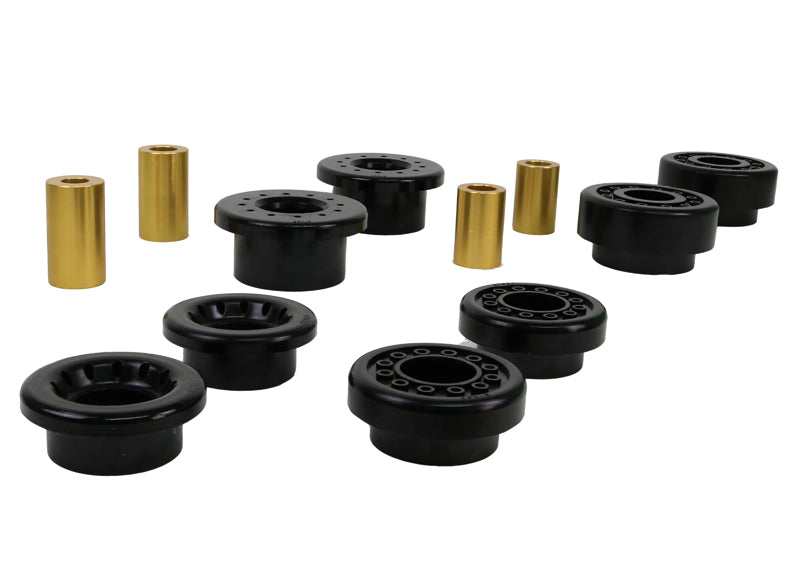

This Whiteline Rear Subframe Mount Bushing fits the 2010-2015 Chevrolet Camaro LS, LT, SS (Zeta). This part is for the rear of the vehicle. The kit contains 8 bushings and 4 tubes. The part number is W93193. Application note: Reduces axle tramp.

The rear subframe is the cradle that the rear suspension arms bolt to, and the car is attached to it through rubber mounts that are soft on purpose. That softness lets the subframe shift under hard cornering or acceleration, which dulls the feel of the rear end. A firmer bushing set holds the subframe in position, so the rear responds more directly to steering and throttle. Whiteline also notes that it helps reduce axle tramp.

Whiteline rates the install as moderate and lists about 2 hours. Plan on a wheel alignment afterward. To go with it on the Camaro, see Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front and Rear Sway Bar Kit.

Features

  • Easy to fit: Designed for an easy install with ordinary shop equipment.
  • Serviceable: A grease fitting lets the part be serviced later.
  • Install guide: Whiteline packs an install guide with it.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Compliance voids: Molded voids give the bushing room to flex where it needs to.
Specifications
Part Number W93193
Part Name Subframe Mount Bushing
Vehicle 2010-2015 Chevrolet Camaro LS, LT, SS
Chassis Code Zeta
Bushing Color Black
Bushing Material Polyurethane
Durometer 85
Grade Type Performance
Grease Fitting Included No
Greaseable Yes
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 8 Bushings, 4 Tubes
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Reduces axle tramp

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010ChevroletCamaroRWDReduces axle tramp
2011ChevroletCamaroRWDReduces axle tramp
2012ChevroletCamaroRWDReduces axle tramp
2013ChevroletCamaroRWDReduces axle tramp
2014ChevroletCamaroRWDReduces axle tramp
2015ChevroletCamaroRWDReduces axle tramp
