Product Details

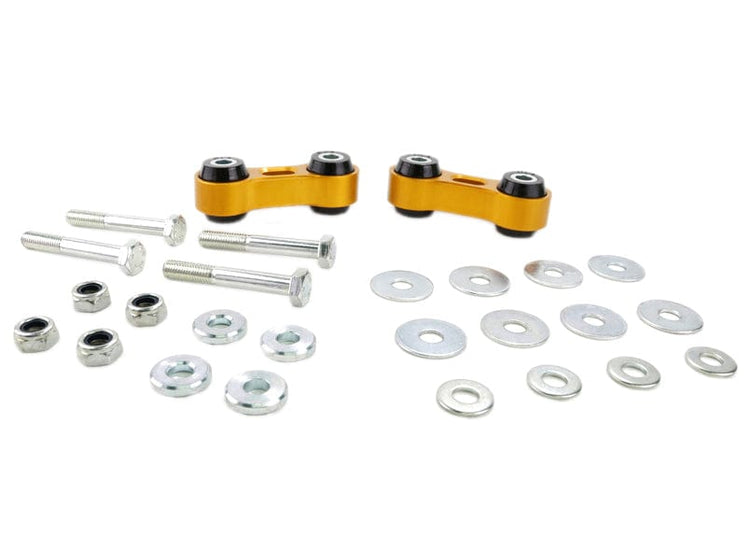

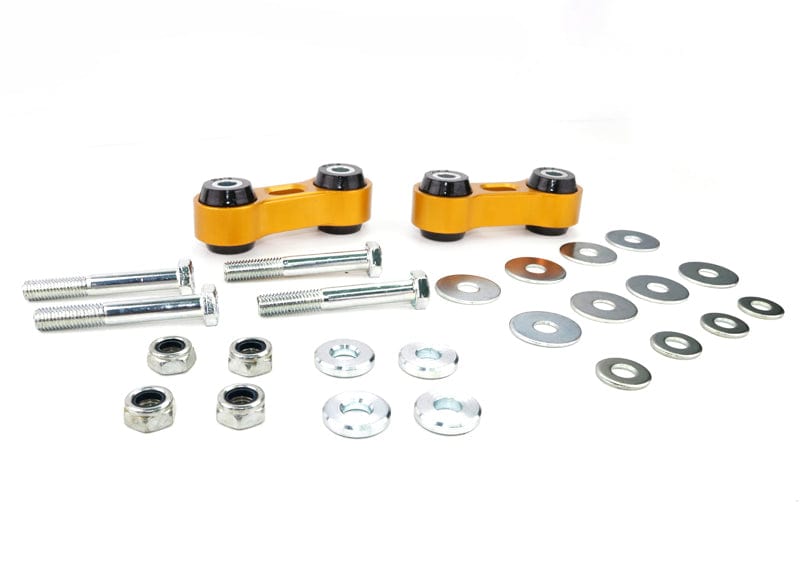

This Whiteline Front Sway Bar Link (OEM Bar Only) fits the 2014 Subaru WRX STI Base (GR/GV). Application note: Replaces OE Ball Joint Link & OE Style Bar Only. Chassis code: GR/GV. It goes on the front of the vehicle. You receive 2 links, 4 spacers, 4 bolts, 12 washers, and 4 nuts. Order it as part number KLC32.

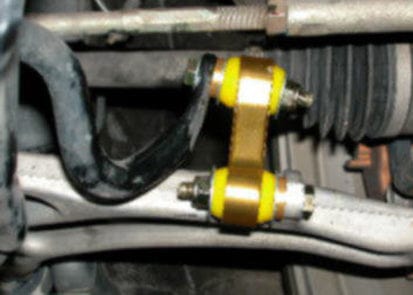

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system.

Whiteline rates the install as easy and lists about 1 hour. A wheel alignment is not required. To go with it on the WRX STI, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Rear Subframe Mount Bushing.

Features

  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Construction: Made from strong, light alloy.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Install guide: An install guide comes in the box.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
Specifications
Part Number KLC32
Part Name Sway Bar Link
Vehicle 2014 Subaru WRX STI Base
Drivetrain AWD
Chassis Code GR/GV
Bushing Material Polyurethane
Grade Type Performance
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Spacers, 4 Bolts, 12 Washers, 4 Nuts
Length 65 mm
Vehicle Placement Front
Wheel Alignment Required No
Notes Replaces OE Ball Joint Link & OE Style Bar Only

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2014SubaruWRX STIAWDReplaces OE Ball Joint Link & OE Style Bar Only
