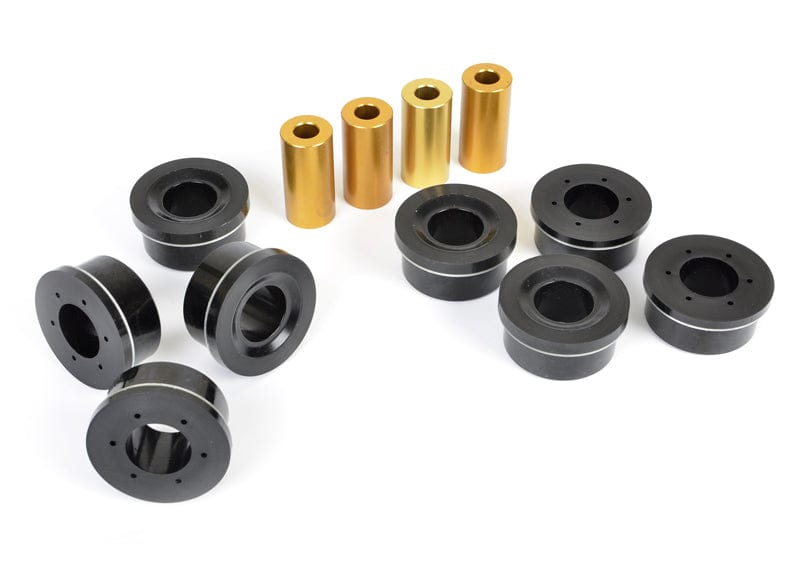

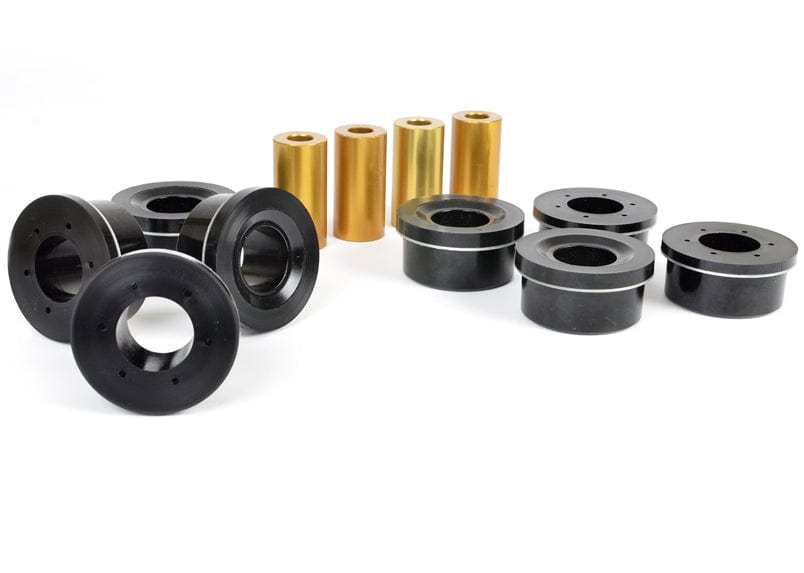

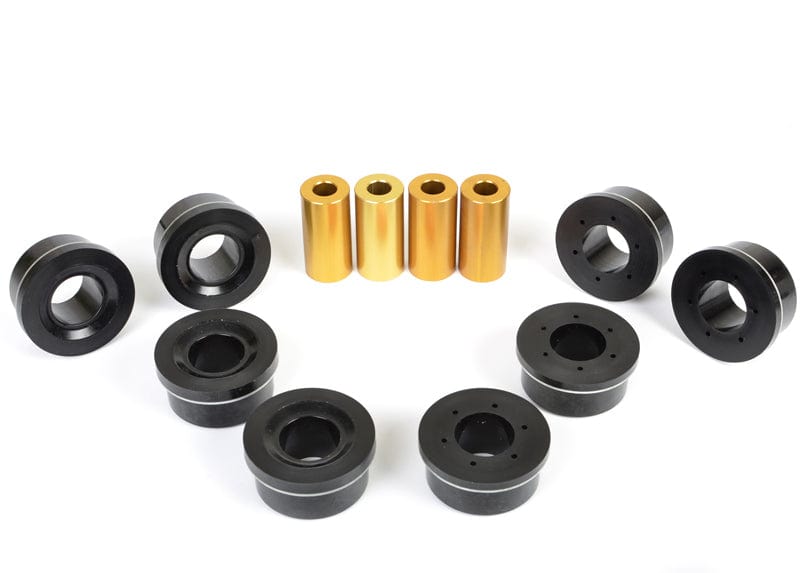

This Whiteline Rear Subframe Mount Bushing fits the 2008-2014 Subaru WRX STI Base (GR/GV). It goes on the rear of the vehicle. Order it as part number KDT907. You receive 8 bushings and 4 tubes. Whiteline's note for this fit: Positive Traction Kit: Locks Subframe To Body.

The rear subframe is the cradle that the rear suspension arms bolt to, and the car is attached to it through rubber mounts that are soft on purpose. That softness lets the subframe shift under hard cornering or acceleration, which dulls the feel of the rear end. A firmer bushing set holds the subframe in position, so the rear responds more directly to steering and throttle. This is a positive traction style kit, designed to lock the subframe to the body.

Expect a difficult job of about 4 hours. An alignment is required after installation. Other Whiteline parts we list for the WRX STI: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Heavy Duty 20mm Rear Sway Bar.

Features

  • Install guide: Whiteline packs an install guide with it.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
Part Number KDT907
Part Name Subframe Mount Bushing
Vehicle 2008-2014 Subaru WRX STI Base
Drivetrain AWD
Chassis Code GR/GV
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Bushings, 4 Tubes
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Positive Traction Kit - Locks Subframe To Body

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008SubaruWRX STIAWDPositive Traction Kit - Locks Subframe To Body
2009SubaruWRX STIAWDPositive Traction Kit - Locks Subframe To Body
2010SubaruWRX STIAWDPositive Traction Kit - Locks Subframe To Body
2011SubaruWRX STIAWDPositive Traction Kit - Locks Subframe To Body
2012SubaruWRX STIAWDPositive Traction Kit - Locks Subframe To Body
2013SubaruWRX STIAWDPositive Traction Kit - Locks Subframe To Body
2014SubaruWRX STIAWDPositive Traction Kit - Locks Subframe To Body
