Product Details

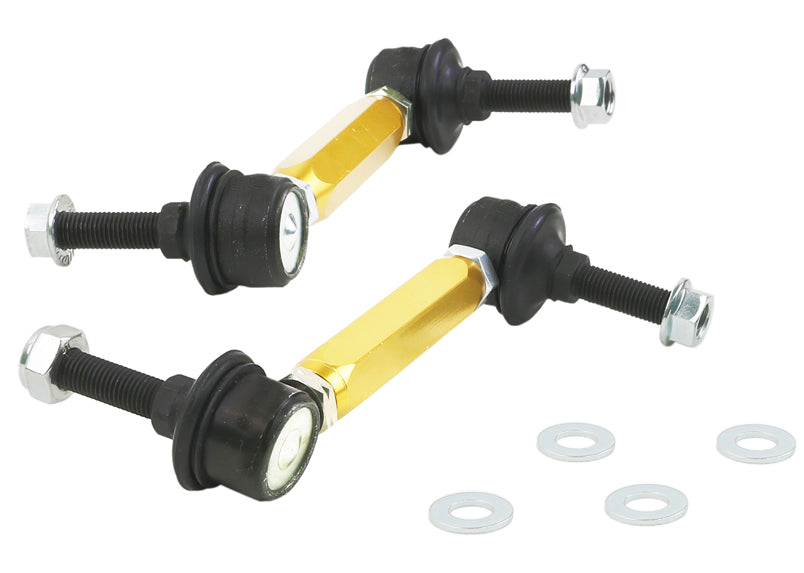

This Whiteline Front Sway Bar Link Kit fits the 2020-2026 Toyota GR Supra. Whiteline part number: KLC140-395. This part is for the front of the vehicle. It is listed for the DB chassis. Whiteline's note for this fit: Adjustable Extra Heavy Duty. The kit contains 2 links.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Expect a moderate job of about 1 hour. No alignment is needed afterward. Working on the same car? We also list Adjustable Rear Sway Bar Link, Adjustable Sway Bar Vehicle Link Kit, and Front and Rear Sway Bar Kit for the GR Supra.
Features
- Easy to fit: Designed for an easy install with ordinary shop equipment.
- Install guide: Instructions for fitting are packed in the box.
- Hardware: Supplied with locking nuts and washers.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Material: The part is made of steel.
- Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
| Part Number | KLC140-395 |
| Part Name | Sway Bar Links |
| Vehicle | 2020-2026 Toyota GR Supra |
| Chassis Code | DB |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 390-415 mm |
| Locking Nuts Included | Yes |
| Material | Steel |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 390-415mm. Bolt Diameter 10mm. |
