Product Details

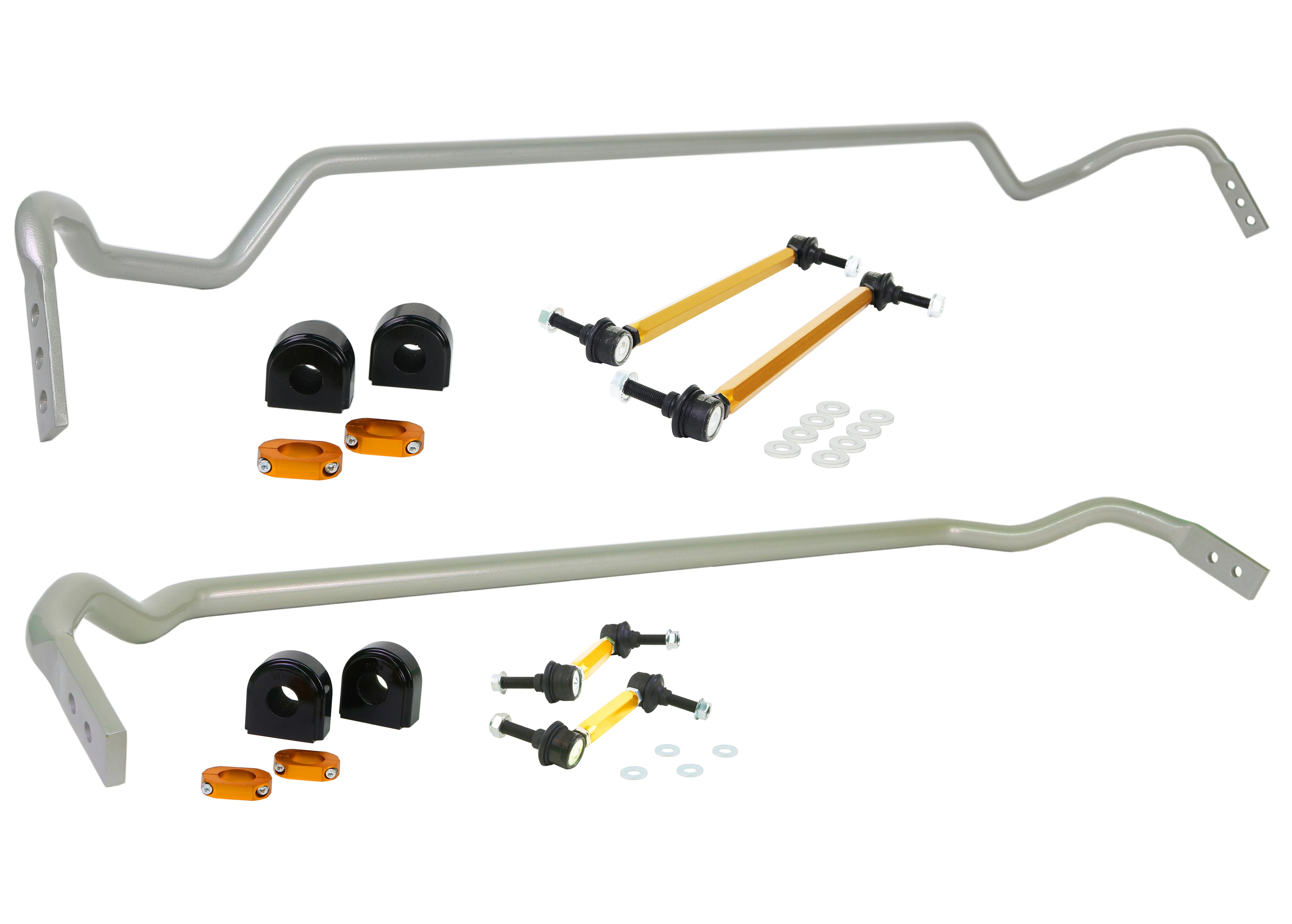

This Whiteline Front and Rear Sway Bar Kit fits the 2020-2026 Toyota GR Supra. Included: 2 sway bars, 4 bushings, and 4 lateral locks. It is listed for the DB chassis. Position: front and rear. Application note: Includes BTF99Z, BTR99Z, KLC140-395 and KLC174. Order it as part number BTK009.
Front and rear sway bars work as a team. The bars resist roll by twisting, and their relative stiffness shapes whether the car feels planted or loose at the limit. This kit supplies both ends so the balance stays under control. The bar is adjustable, so the stiffness can be changed to suit the car and the road.
Installation is rated difficult, with about 5 hours of work listed. Get the car aligned once it is back on the ground. Working on the same car? We also list Adjustable Rear Sway Bar Link, Adjustable Sway Bar Vehicle Link Kit, and Front Sway Bar Link Kit for the GR Supra.
Features
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Install guide: An install guide comes in the box.
- Easy to fit: Designed for an easy install with ordinary shop equipment.
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
Specifications
| Part Number | BTK009 |
| Part Name | Sway Bar Kit |
| Vehicle | 2020-2026 Toyota GR Supra |
| Chassis Code | DB |
| Bushing Material | Polyurethane |
| Sway Bar Adjustable - Front | Yes |
| Sway Bar Diameter - Front | 24 mm |
| Sway Bar Included - Front | Yes |
| Sway Bar Links Included - Front | Yes |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 5 |
| Kit Contents | 2 Sway Bars, 4 Bushings, 4 Lateral Locks |
| Sway Bar Adjustable - Rear | Yes |
| Sway Bar Diameter - Rear | 18 mm |
| Sway Bar Included - Rear | Yes |
| Sway Bar Links Included - Rear | Yes |
| Vehicle Placement | Front and Rear |
| Wheel Alignment Required | Yes |
| Notes | Includes BTF99Z, BTR99Z, KLC140-395 and KLC174 |
Fitment for GR Supra sway bar kits
Fits the 2020-2026 Toyota GR Supra. Each model year is listed below.
