Product Details

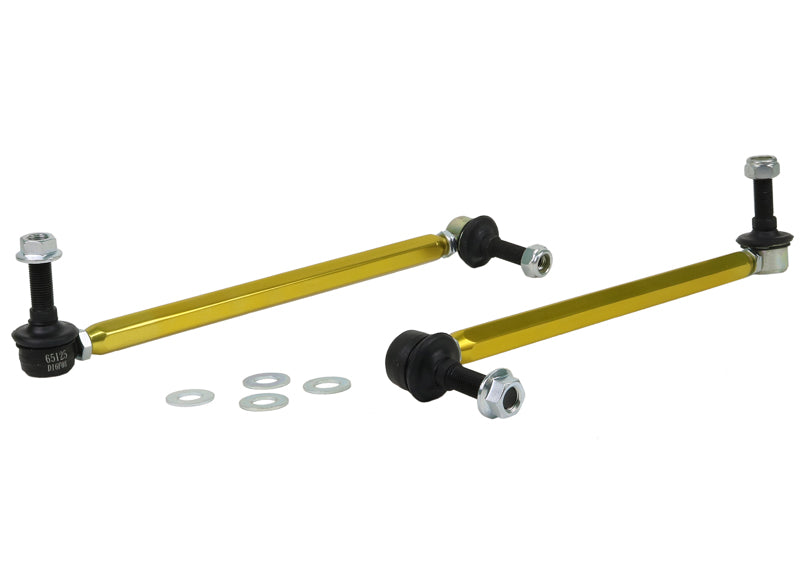

This Whiteline Front Sway Bar Link Kit fits the 2018-2022 Toyota C-HR (X10). Part number KLC180-315. Placement: front. In the box: 2 links.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Expect an easy job of about 1 hour. It does not require a wheel alignment. To go with it on the C-HR, see 17mm Adjustable Front Camber Bolts, Adjustable Rear Sway Bar Link Kit, and Adjustable Rear Lower Toe Arm Set.
Features
- Material: Aluminum Alloy construction.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Easy to fit: Made with the installer in mind, so it goes in without special equipment.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Hardware: Hardware supplied: locking nuts and washers.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
| Part Number | KLC180-315 |
| Part Name | Sway Bar Links |
| Vehicle | 2018-2022 Toyota C-HR |
| Chassis Code | X10 |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 310-335 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | - |
