Product Details

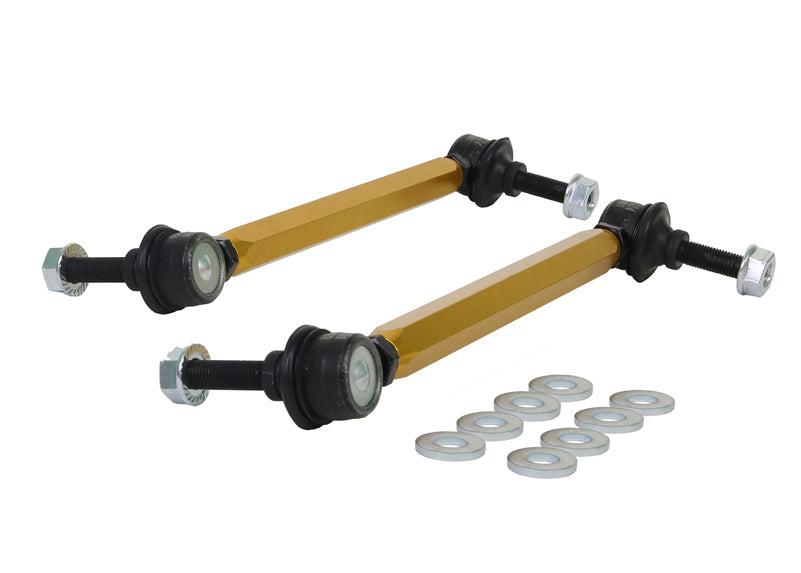

This Whiteline Front Sway Bar Link Assembly fits the 2016-2021 BMW M2. Whiteline's note for this fit: Adjustable extra heavy duty. Part number KLC140-255. Placement: front. In the box: 2 links.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. To go with it on the BMW M2, see Adjustable Rear Sway Bar Link Kit, Rear Control Arm Bushing, and Blade Adjustable 30mm Front Sway Bar.
Features
- Hardware: Also in the box: locking nuts and washers.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Pre-greased: Comes pre-greased, so it can go straight on the car.
- Install guide: Whiteline packs an install guide with it.
- Construction: The body is made from high-grade alloy for strength without added weight.
- Preload-free setup: Setting the length on the car lets the bar rest without preload.
Specifications
| Part Number | KLC140-255 |
| Part Name | Sway Bar Link |
| Vehicle | 2016-2021 BMW M2 |
| Chassis Code | F87 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 250-275 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable extra heavy duty. Length 250-275mm. Bolt Diameter 10mm. |
Fitment for M2 sway bar links
Fits the 2016-2021 BMW M2. Each model year is listed below.
