Product Details

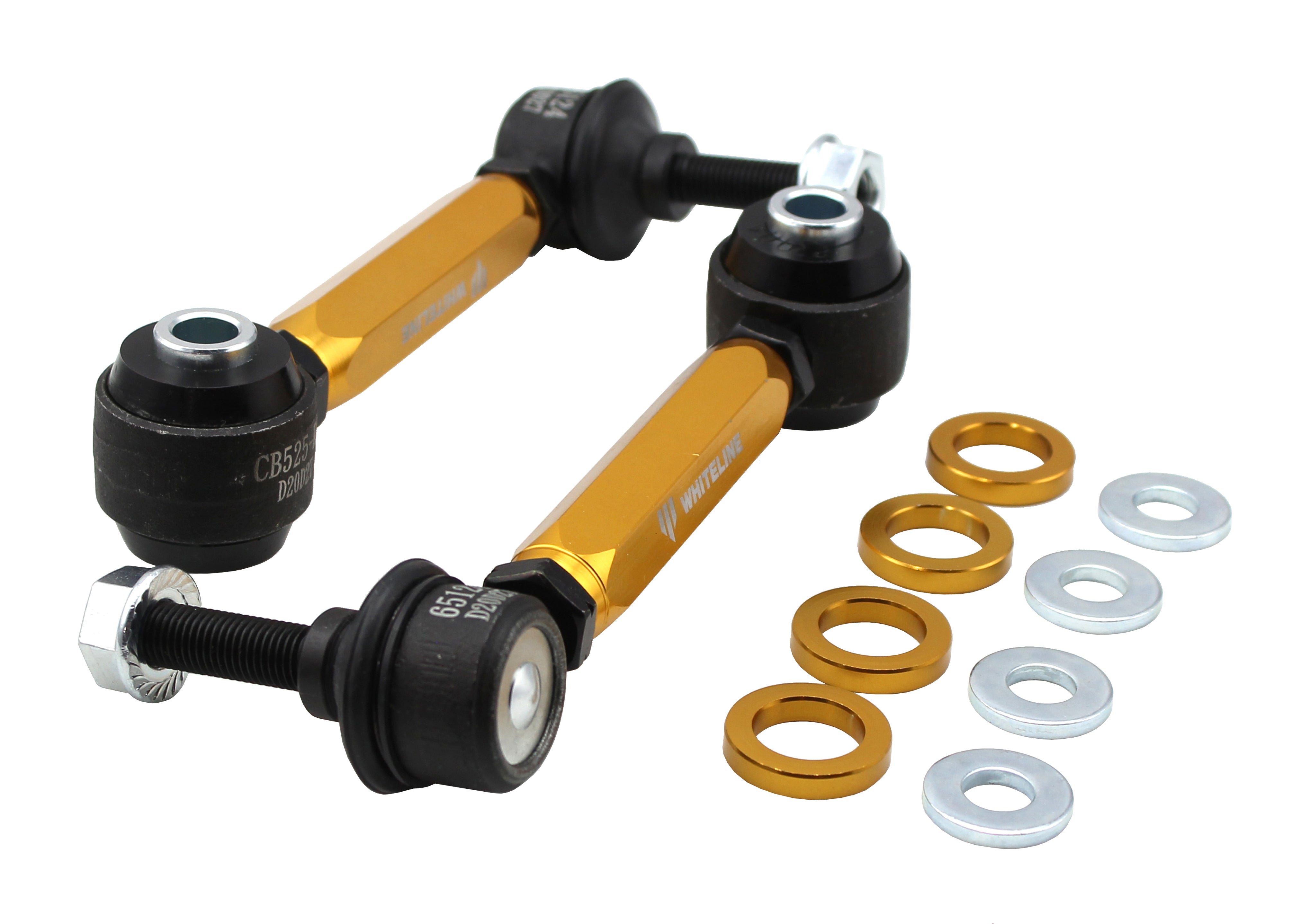

This Whiteline Adjustable Rear Sway Bar Link Kit fits the 2016-2021 BMW M2 (F87). The part number is KLC233. Chassis code: F87. Position: rear. You receive 2 links, 4 spacers, 2 bolts, 4 washers, and 2 nuts. Application note: Adjustable extra heavy duty.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Installation is rated easy, with about 1 hour of work listed. No alignment is needed afterward. Other Whiteline parts we list for the BMW M2: Front Sway Bar Link Assembly, Rear Control Arm Bushing, and Blade Adjustable 30mm Front Sway Bar.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Easy to fit: Made with the installer in mind, so it goes in without special equipment.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Install guide: Whiteline packs an install guide with it.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
Specifications
Part Number KLC233
Part Name Sway Bar Links
Vehicle 2016-2021 BMW M2
Chassis Code F87
Bolt Thread Diameter 10 mm
Bushing Material Polyurethane
Grade Type Performance
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Spacers, 2 Bolts, 4 Washers, 2 Nuts
Length 130 mm-155 mm
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable extra heavy duty. Length 130-155mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2016BMWM2RWDAdjustable extra heavy duty. Length 130-155mm. Bolt Diameter 10mm.
2017BMWM2RWDAdjustable extra heavy duty. Length 130-155mm. Bolt Diameter 10mm.
2018BMWM2RWDAdjustable extra heavy duty. Length 130-155mm. Bolt Diameter 10mm.
2019BMWM2RWDAdjustable extra heavy duty. Length 130-155mm. Bolt Diameter 10mm.
2020BMWM2RWDAdjustable extra heavy duty. Length 130-155mm. Bolt Diameter 10mm.
2021BMWM2RWDAdjustable extra heavy duty. Length 130-155mm. Bolt Diameter 10mm.
