Product Details

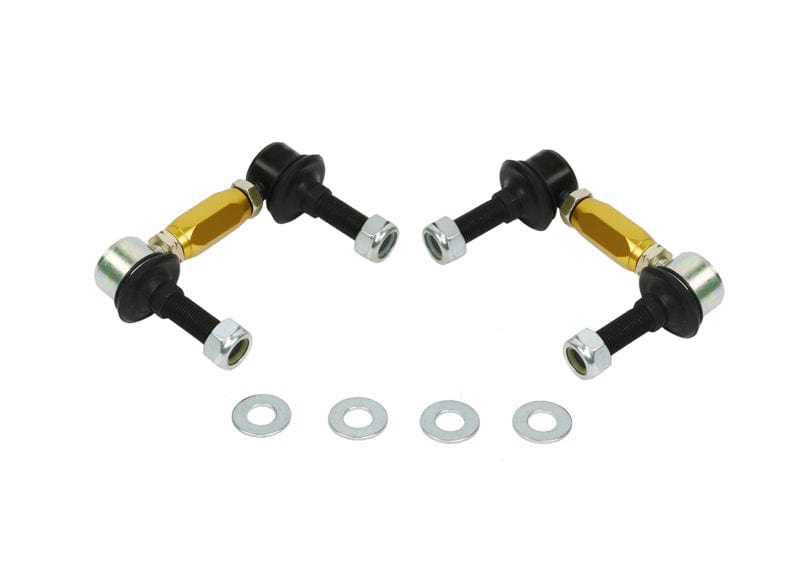

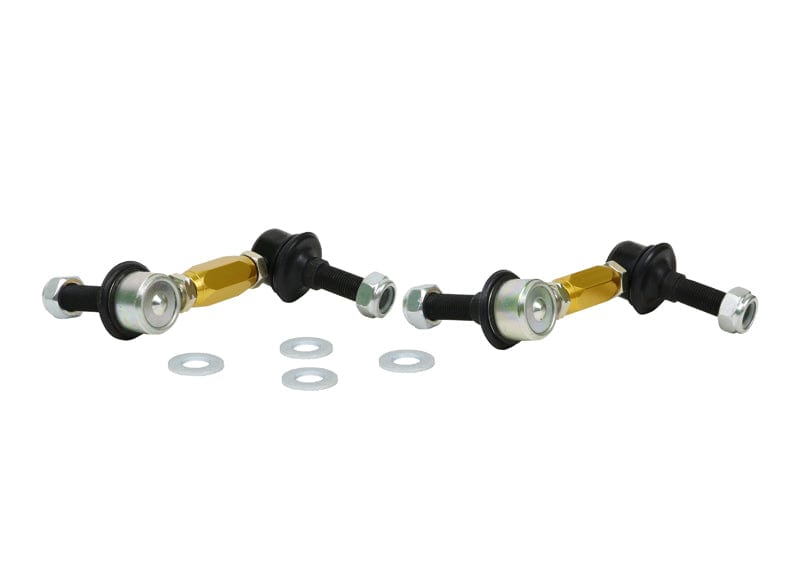

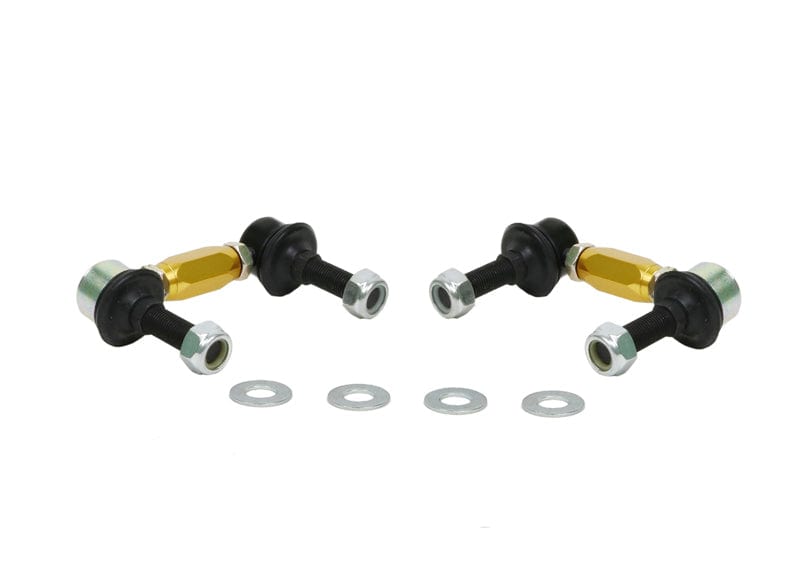

This Whiteline Front Sway Bar Link Assembly fits the 2005 Nissan Pathfinder XE (R51). The kit contains 2 links and 4 washers. Whiteline's note for this fit: Adjustable Extra Heavy Duty. It goes on the front of the vehicle. The part number is KLC180-090.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this front link is built to keep that connection firm. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. To go with it on the Pathfinder, see Front Lower Inner Control Arm Bushing, Rear Differential Bushing Kit, and Front Upper Control Arm Set - Fixed Offset.

Features

  • Install guide: Written install instructions are included with the part.
  • Hardware: Also in the box: locking nuts and washers.
  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
Specifications
Part Number KLC180-090
Part Name Sway Bar Link
Vehicle 2005 Nissan Pathfinder XE
Drivetrain RWD/4WD
Chassis Code R51
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Washers
Length 90-115 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased No
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005NissanPathfinderRWDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
2005NissanPathfinder4WDAdjustable Extra Heavy Duty. Length 90-115mm. Bolt Diameter 12mm.
