Product Details

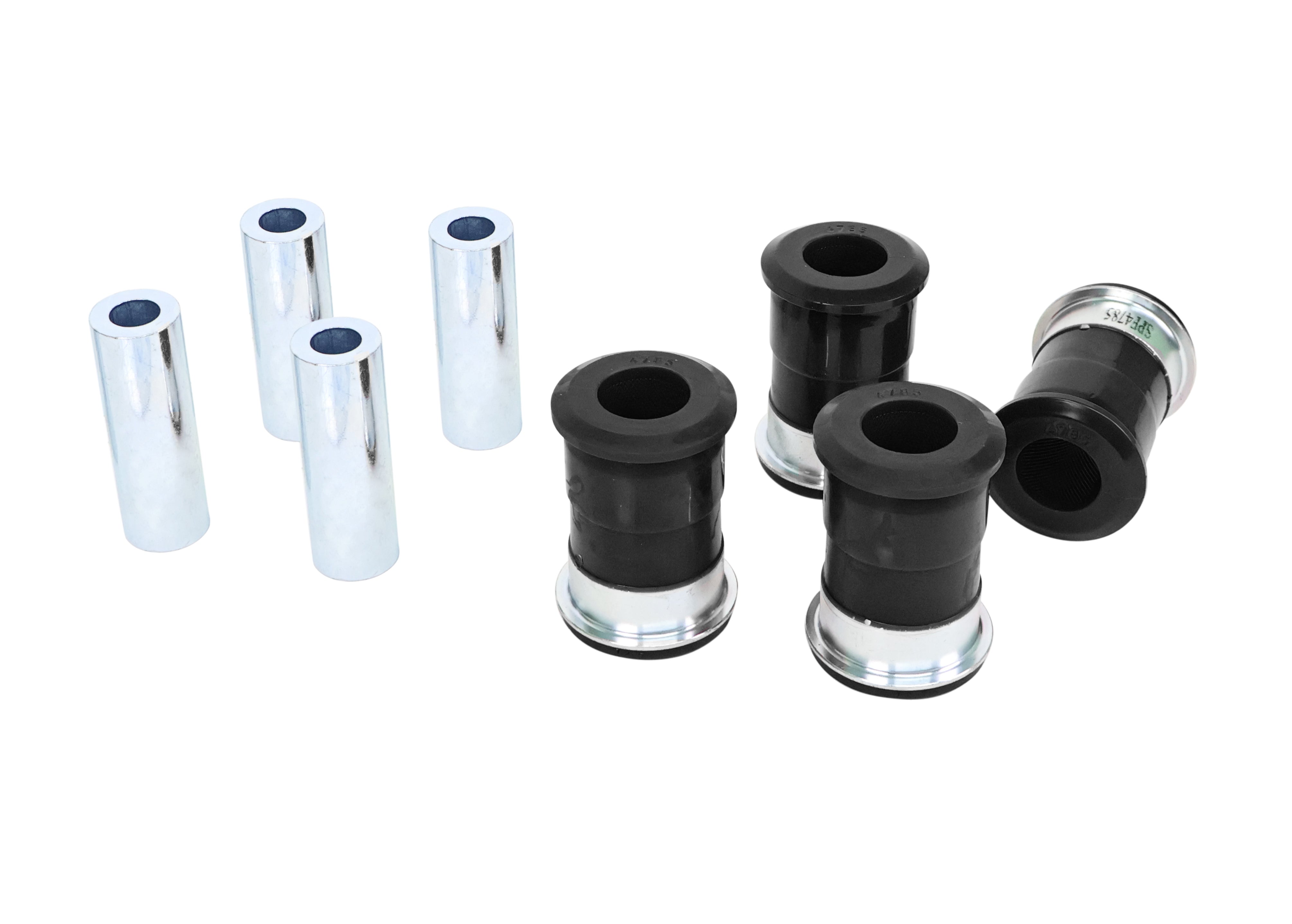

This Whiteline Front Lower Inner Control Arm Bushing fits the 2005-2009 Nissan Pathfinder SE Off-Road (R51). Placement: front. The kit contains 4 shell bushings, 4 tubes, and 8 washers. Whiteline's note for this fit: Standard Replacement. Order it as part number W53272.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired control arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a difficult job of about 4 hours. Get the car aligned once it is back on the ground. To go with it on the Pathfinder, see Front Sway Bar Link Assembly, Rear Differential Bushing Kit, and Front Upper Control Arm Set - Fixed Offset.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Material: Polyurethane construction.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Install guide: Instructions for fitting are packed in the box.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Finish: Powder coating covers the metal for protection against chips and rust.
Specifications
Part Number W53272
Part Name Control Arm Bushing
Vehicle 2005-2009 Nissan Pathfinder SE Off-Road
Drivetrain RWD/4WD
Chassis Code R51
Bushing 1 Inner Diameter 14.3 mm
Bushing 1 Outer Diameter 43 mm
Bushing Quantity 4 Shell Bushings
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 4 Shell Bushings, 4 Tubes, 8 Washers
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005NissanPathfinderRWDStandard Replacement
2005NissanPathfinder4WDStandard Replacement
2006NissanPathfinderRWDStandard Replacement
2006NissanPathfinder4WDStandard Replacement
2007NissanPathfinderRWDStandard Replacement
2007NissanPathfinder4WDStandard Replacement
2008NissanPathfinderRWDStandard Replacement
2008NissanPathfinder4WDStandard Replacement
2009NissanPathfinderRWDStandard Replacement
2009NissanPathfinder4WDStandard Replacement
