Product Details

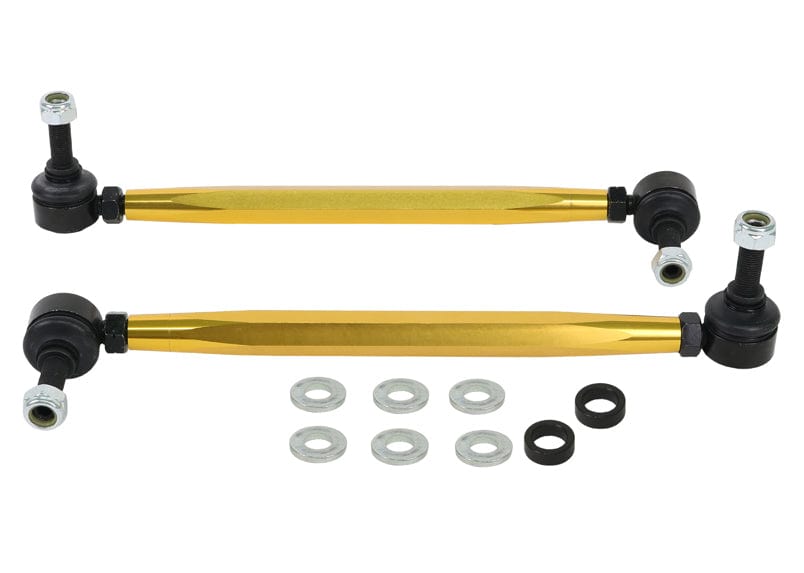

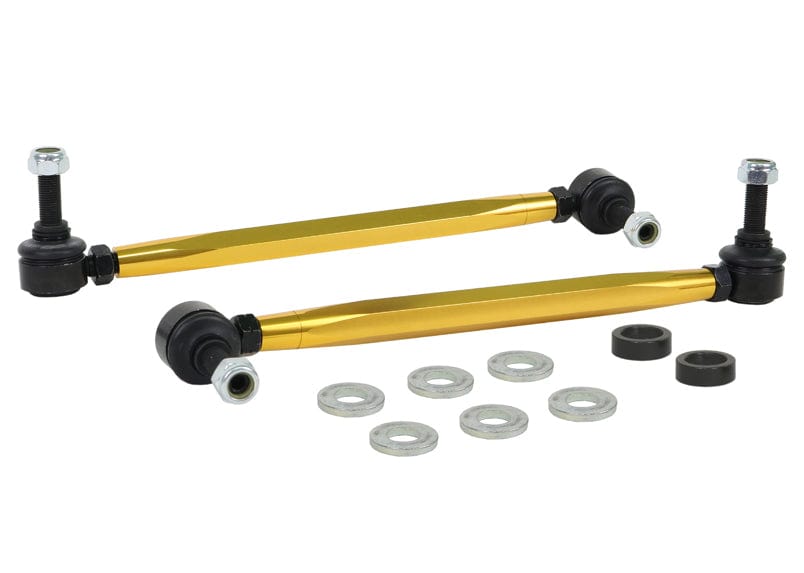

This Whiteline Adjustable Front Sway Bar Link fits the 2010 Volkswagen Jetta TDI Cup Edition (1K). Whiteline's note for this fit: Adjustable Extra Heavy Duty. In the box: 2 links. Order it as part number KLC167A. Placement: front.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. To go with it on the Jetta, see Adjustable Rear Sway Bar Link, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Install guide: Whiteline packs an install guide with it.
  • Construction: Alloy construction keeps the weight down while handling the loads.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Anodized alloy: The alloy carries an anodized finish for durability.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Hardware: Supplied with locking nuts and washers.
Specifications
Part Number KLC167A
Part Name Sway Bar Link
Vehicle 2010 Volkswagen Jetta TDI Cup Edition
Chassis Code 1K
Adjustable Yes
Bolt Thread Diameter 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 320-345 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010VolkswagenJettaFWDAdjustable Extra Heavy Duty. Length 320-345mm. Bolt Diameter 12mm.
