Product Details

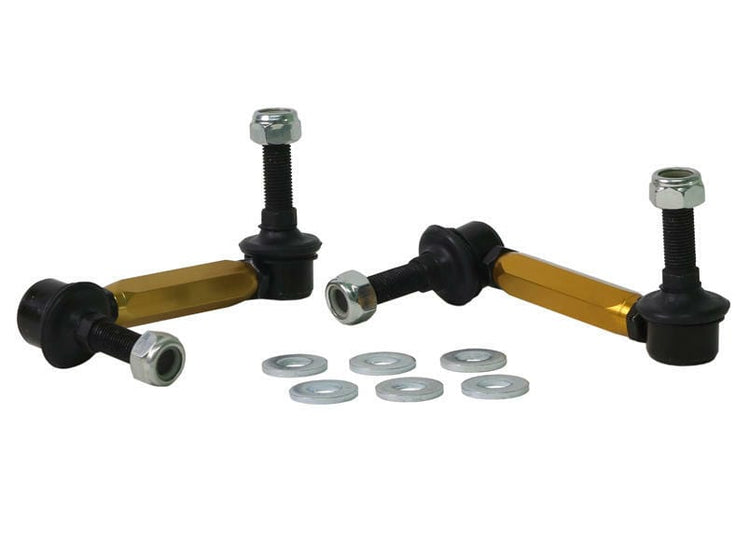

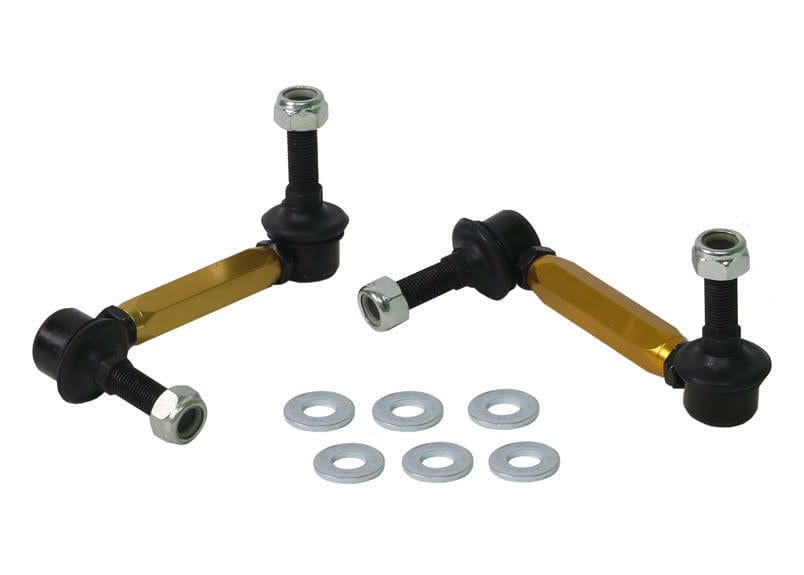

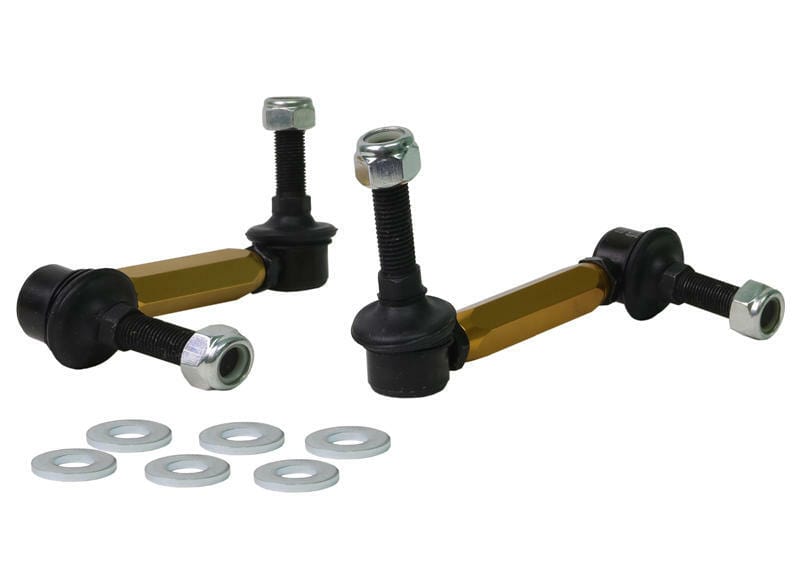

Here is the Whiteline Front Sway Bar Link for the 2007 Toyota FJ Cruiser TRD Special Edition. It goes on the front of the vehicle. The listing names the TRD Special Edition trim. The kit contains 2 links and 6 washers. Application note: Adjustable Extra Heavy Duty. Order it as part number KLC220. The chassis code on the listing is J150.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.
Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. To go with it on the FJ Cruiser, see Front Steering Rack And Pinion Mount Bushing, Rear Sway Bar Link, and Front Upper Control Arm Bushing Kit.
Features
- Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
- Ball joints: Steel ball joint ends are built for heavy loads and free movement.
- Hardware: The kit includes locking nuts and washers.
- Install guide: Instructions for fitting are packed in the box.
- Pre-greased: Comes pre-greased, so it can go straight on the car.
- Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
Specifications
| Part Number | KLC220 |
| Part Name | Sway Bar Link |
| Vehicle | 2007 Toyota FJ Cruiser TRD Special Edition |
| Chassis Code | J150 |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links, 6 Washers |
| Length | 125-150 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 125-150mm. Bolt Diameter 12mm. |
