Product Details

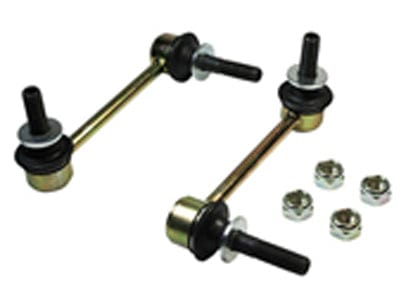

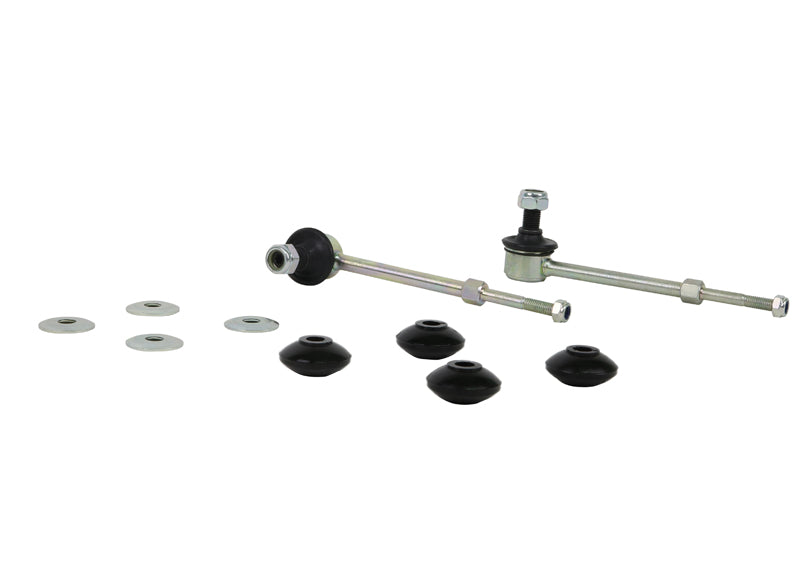

This Whiteline Rear Sway Bar Link fits the 2007-2014 Toyota FJ Cruiser Base (J150). Order it as part number W23440. Whiteline's note for this fit: Pair: vehicle specific ball/bushing style link. This part is for the rear of the vehicle. Included: 2 links, 4 bushings, and 4 washers.
The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in.
Expect an easy job of about 1 hour. A wheel alignment is not required. To go with it on the FJ Cruiser, see Front Steering Rack And Pinion Mount Bushing, Front Sway Bar Link, and Front Upper Control Arm Bushing Kit.
Features
- Corrosion protection: A protective plating covers the metal components to guard against corrosion.
- Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
Specifications
| Part Number | W23440 |
| Part Name | Sway Bar Link |
| Vehicle | 2007-2014 Toyota FJ Cruiser Base |
| Drivetrain | RWD/4WD |
| Chassis Code | J150 |
| Bolt Thread Diameter | 12 mm |
| Bushing Material | Polyurethane |
| Grade Type | Performance |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links, 4 Bushings, 4 Washers |
| Length | 140 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Pair - vehicle specific ball/bushing style link |
