Product Details

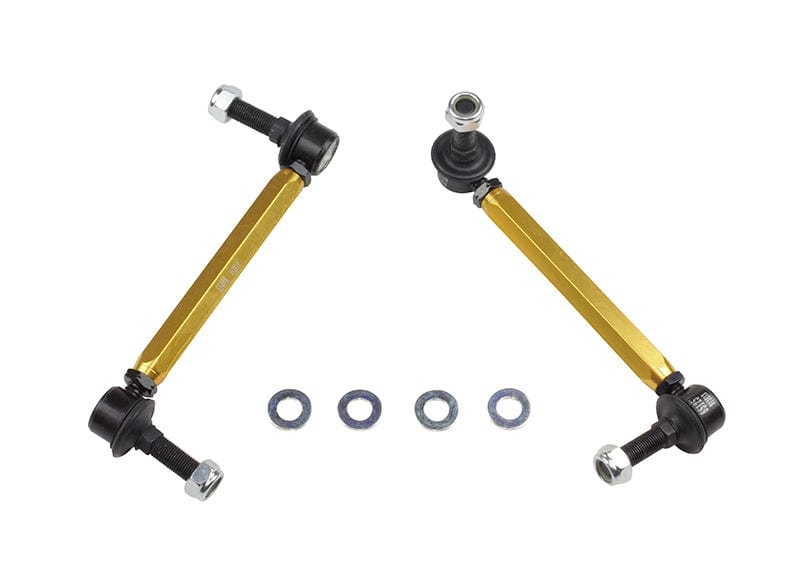

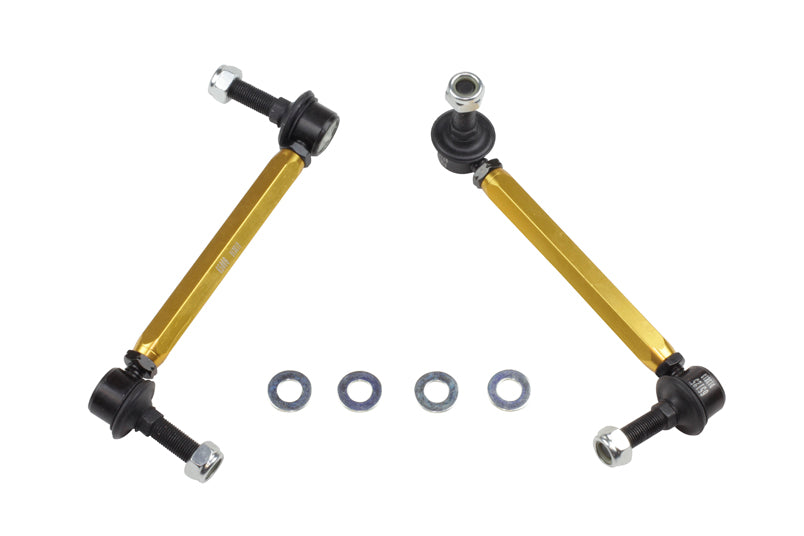

This Whiteline Front Sway Bar Link fits the 1997-2003 Infiniti QX4 Base (WD21). Application note: Adjustable Extra Heavy Duty. Included: 2 links. Order it as part number KLC180-195. Placement: front.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Expect a moderate job of about 1 hour. A wheel alignment is not required. We also list 14mm Adjustable Front Camber Bolts, Front Control Arm Lower Inner Rear Bushing, and Front Sway Bar Link Bushing (28.5mm OD) for the Infiniti QX4.
Features
- Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
- Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
- Pre-greased: Comes pre-greased, so it can go straight on the car.
- Install guide: Written install instructions are included with the part.
- Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
Specifications
| Part Number | KLC180-195 |
| Part Name | Sway Bar Link |
| Vehicle | 1997-2003 Infiniti QX4 Base |
| Chassis Code | WD21 |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 190-215 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 190-215mm. Bolt Diameter 12mm. |
