Product Details

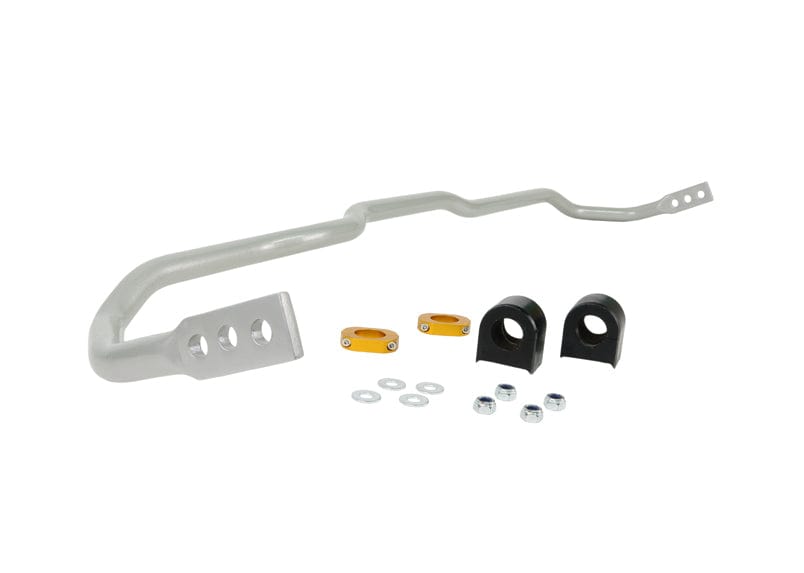

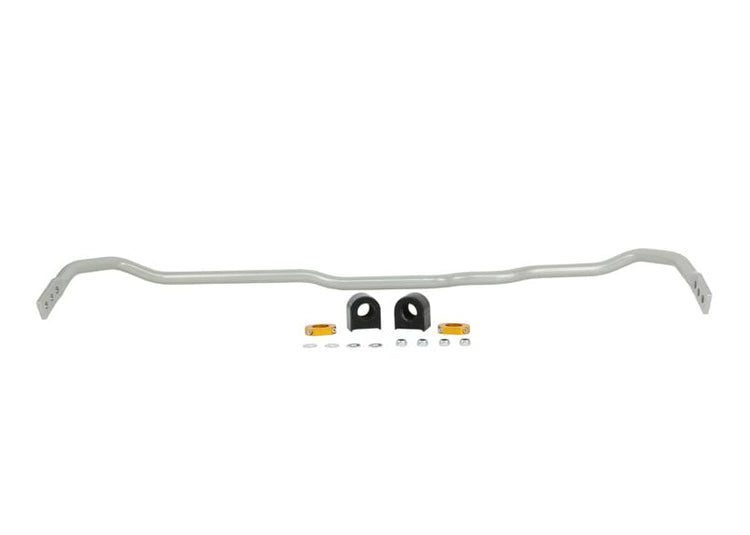

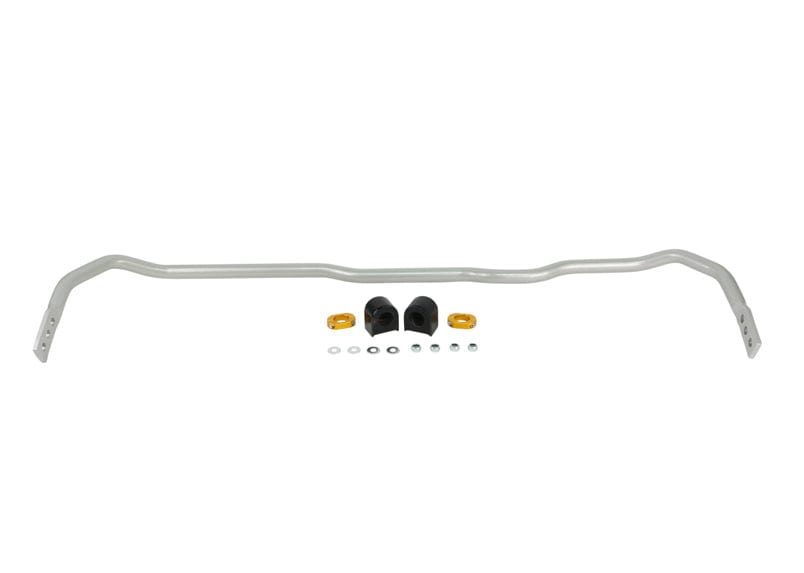

This Whiteline Heavy Duty Blade Adjustable 24mm Front Sway Bar fits the 2008-2010 Volkswagen Passat Komfort (B6). The part number is BWF19XZ. Drivetrain: FWD. Position: front. In the box: 1 sway bar, 2 bushings, 2 lateral locks, 4 washers, and 4 nuts.

A sway bar is a torsion spring that links the left and right wheels. When the body leans, the bar twists and resists, which keeps the car flatter and spreads load more evenly across the tires. In general, a stiffer front bar reduces roll and helps the nose stay planted, with a tendency toward understeer if it is overdone. The bar is adjustable, so the stiffness can be changed to suit the car and the road.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Passat: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Roll control: Built to reduce body roll and sway in corners.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Bar mounts: Mount bushings use an internally knurled bore and grease retention lips for lasting lubrication.
  • Adjustable stiffness: More than one adjustment point lets you set the stiffness of the bar.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
Specifications
Part Number BWF19XZ
Part Name Sway Bar
Vehicle 2008-2010 Volkswagen Passat Komfort
Chassis Code B6
Drivetrain FWD
Adjustable Yes
Bar Color Silver
Bar Diameter 24 mm
Bushing Color Black
Bushing Material Polyurethane
Bushings Included Yes
Finish Powder Coated
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 1 Sway Bar, 2 Bushings, 2 Lateral Locks, 4 Washers, 4 Nuts
Material Solid Spring Steel
Mounting Brackets Included No
Mounting Hardware Included No
Suspension Grade Type Performance
Sway Bar Links Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008VolkswagenPassatFWD
2009VolkswagenPassatFWD
2010VolkswagenPassatFWD
