Product Details

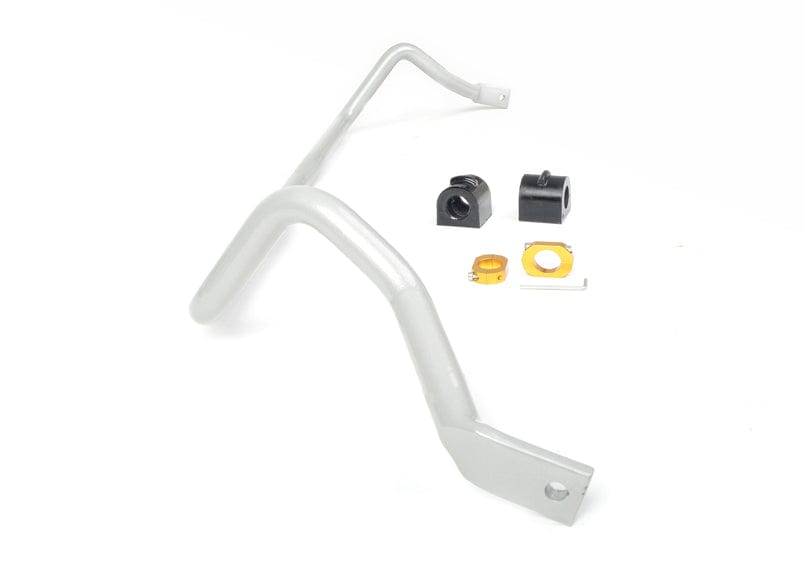

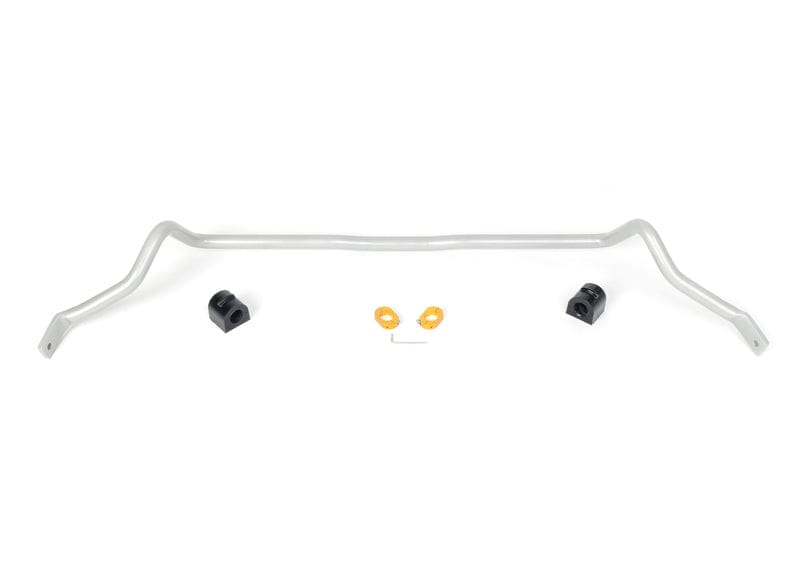

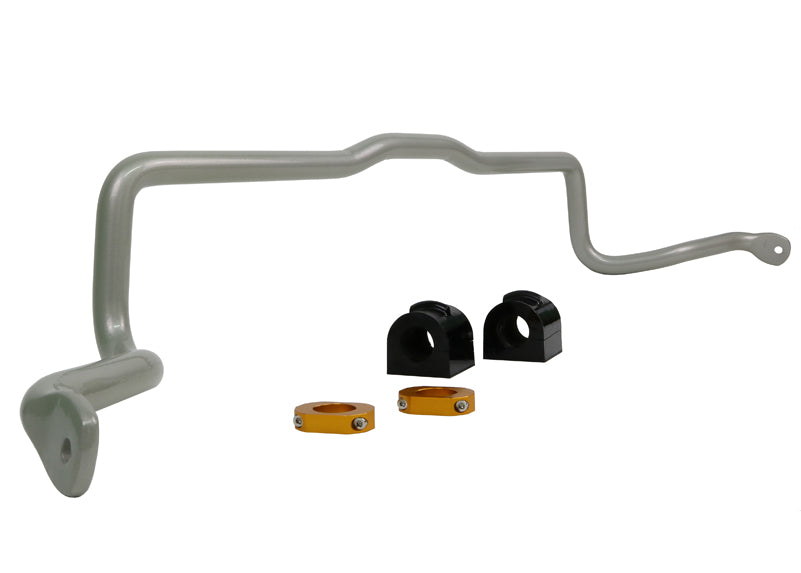

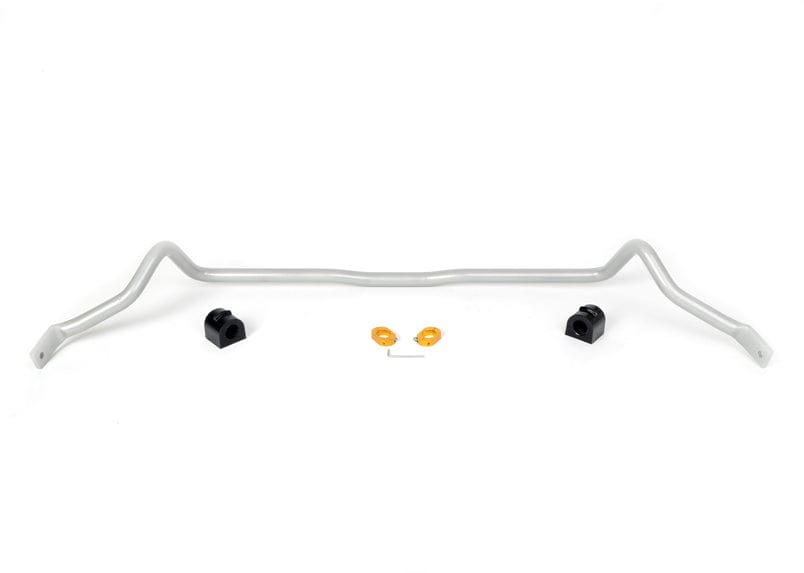

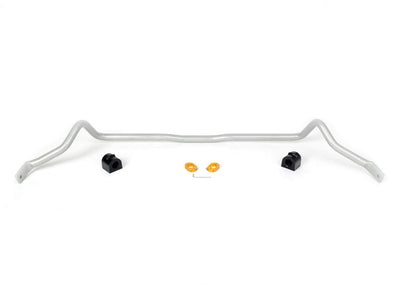

This Whiteline Heavy Duty 24mm Front Sway Bar fits the 2004-2013 Mazda 3 i, S (BK/BL). Part number BMF51X. Included: 1 sway bar, 2 bushings, and 2 lateral locks. This part is for the front of the vehicle. Application note: Non adjustable.

Roll control starts at the front of most cars, where the steering tires do the hardest work. A stiffer front bar limits the lean of the body, keeps the outside front tire flatter on the road, and gives a more immediate response to steering. It is a fixed design with a single stiffness setting, which keeps it simple.

Whiteline rates the install as moderate and lists about 3 hours. Plan on a wheel alignment afterward. We also list Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link for the Mazda 3.

Features

  • Roll control: Built to reduce lean when cornering.
  • Install guide: An install guide comes in the box.
  • Bar mounts: The mount bushings have a knurled bore and grease-holding lips.
  • Forged ends: Forged bar ends add strength where the bar meets the link.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Lateral locks: Built-in lateral locks hold the bar in position side to side.
Specifications
Part Number BMF51X
Part Name Sway Bar
Vehicle 2004-2013 Mazda 3 i, S
Chassis Code BK/BL
Adjustable No
Bar Color Silver
Bar Diameter 24 mm
Bushing Color Black
Bushing Material Polyurethane
Bushings Included Yes
Finish Powder Coated
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 1 Sway Bar, 2 Bushings, 2 Lateral Locks
Material Solid Spring Steel
Mounting Brackets Included No
Mounting Hardware Included No
Suspension Grade Type Performance
Sway Bar Links Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Non adjustable

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004MazdaMazda 3FWDNon adjustable
2005MazdaMazda 3FWDNon adjustable
2006MazdaMazda 3FWDNon adjustable
2007MazdaMazda 3FWDNon adjustable
2008MazdaMazda 3FWDNon adjustable
2009MazdaMazda 3FWDNon adjustable
2010MazdaMazda 3FWDNon adjustable
2011MazdaMazda 3FWDNon adjustable
2012MazdaMazda 3FWDNon adjustable
2013MazdaMazda 3FWDNon adjustable
