Product Details

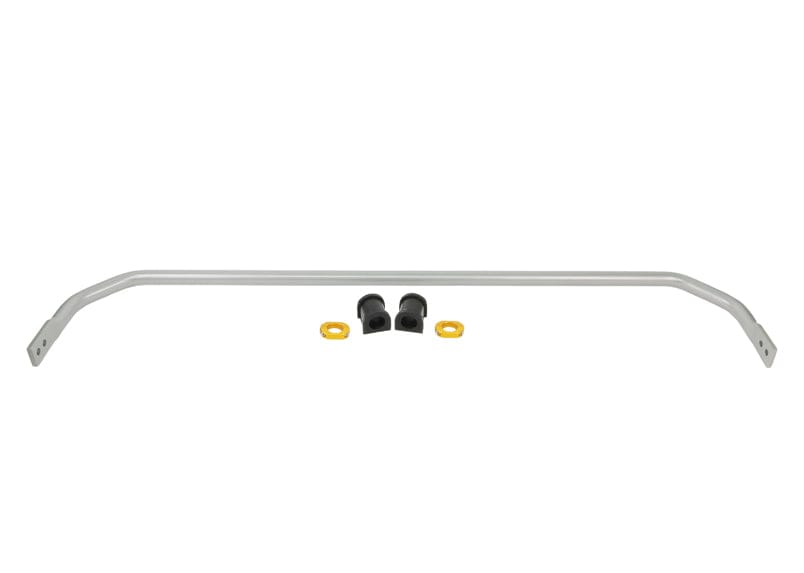

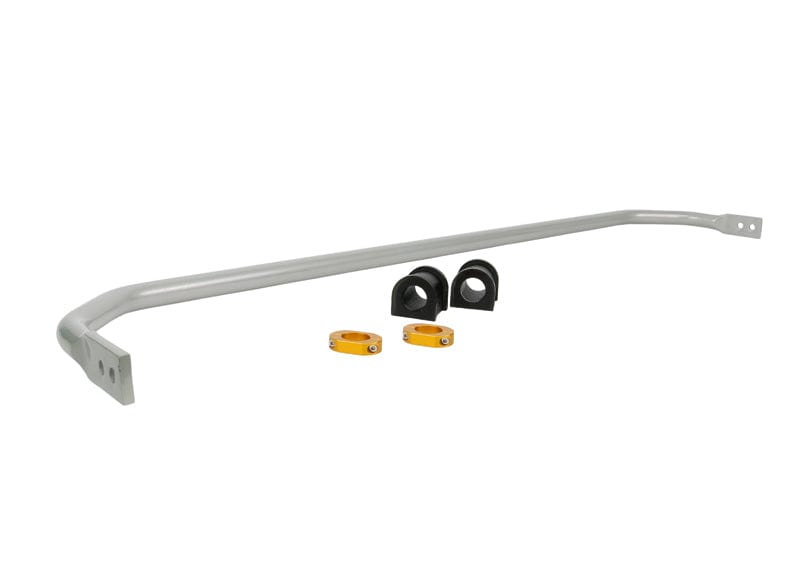

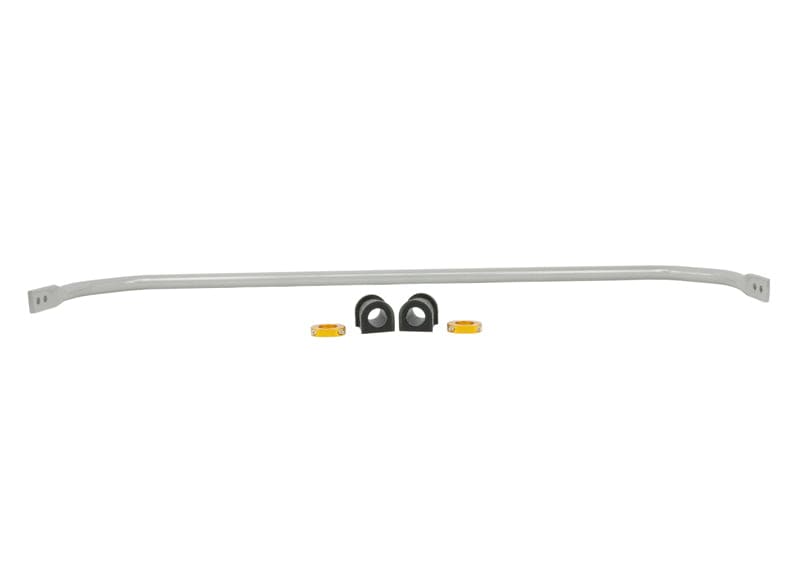

Whiteline built the Heavy Duty Blade Adjustable 24mm Front Sway Bar for the 2011-2012 Mazda MX-5 Miata Special Edition (NC). In the box: 1 sway bar, 2 bushings, and 2 lateral locks. Order it as part number BMF54Z. The listing names the Special Edition trim. It goes on the front of the vehicle.
The front bar connects the two front wheels so that load carried by one side is shared with the other. By stiffening that connection, the car leans less and the front tires work more evenly in a corner. The bar is adjustable, so the stiffness can be changed to suit the car and the road.
Installation is rated moderate, with about 1.5 hours of work listed. A wheel alignment is not required. Working on the same car? We also list Adjustable Rear Sway Bar Link, Adjustable Sway Bar Vehicle Link Kit, and Adjustable Front Sway Bar Link for the MX-5 Miata.
Features
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Roll control: Built to reduce lean when cornering.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Adjustable stiffness: Multiple adjustment points let you tune the bar for how you drive.
Specifications
| Part Number | BMF54Z |
| Part Name | Sway Bar |
| Vehicle | 2011-2012 Mazda MX-5 Miata Special Edition |
| Drivetrain | RWD |
| Chassis Code | NC |
| Adjustable | Yes |
| Bar Color | Silver |
| Bar Diameter | 24 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Finish | Powder Coated |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1.5 |
| Kit Contents | 1 Sway Bar, 2 Bushings, 2 Lateral Locks |
| Material | Solid Spring Steel |
| Mounting Brackets Included | No |
| Mounting Hardware Included | No |
| Suspension Grade Type | Performance |
| Sway Bar Links Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | - |
