Product Details

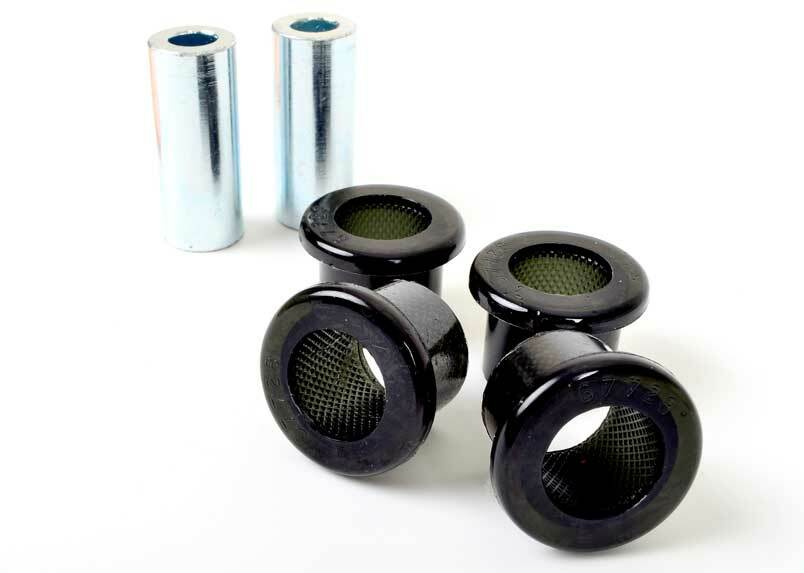

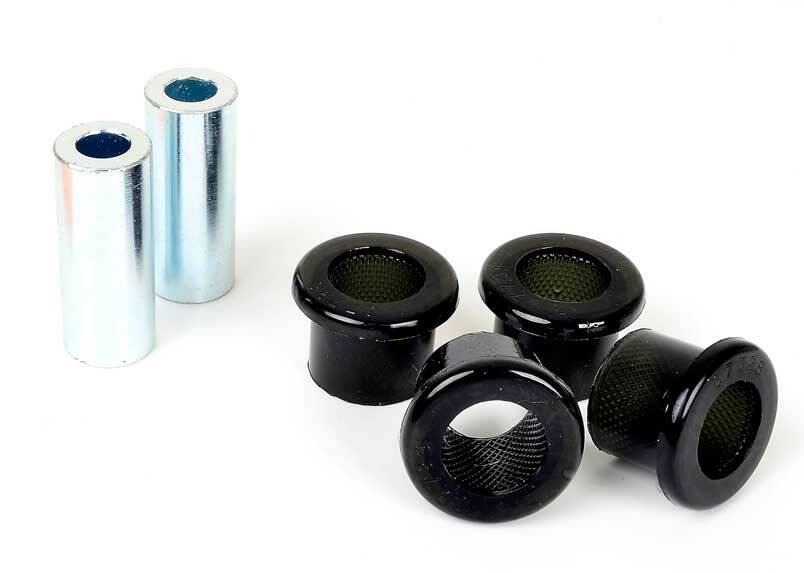

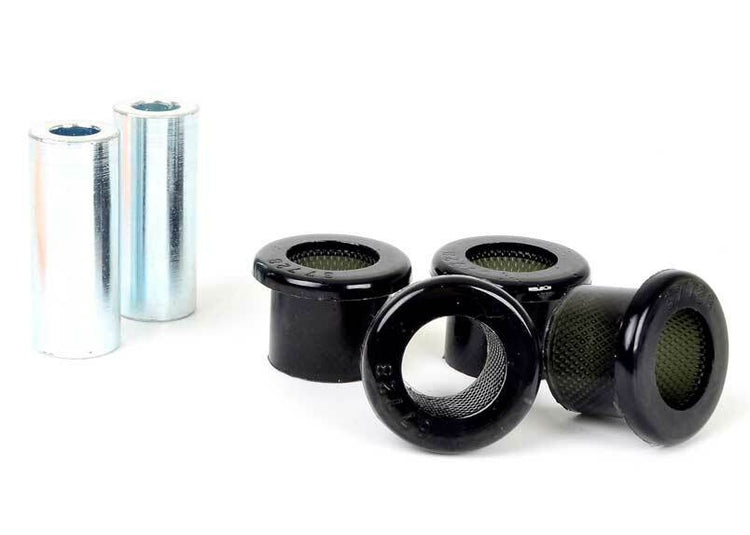

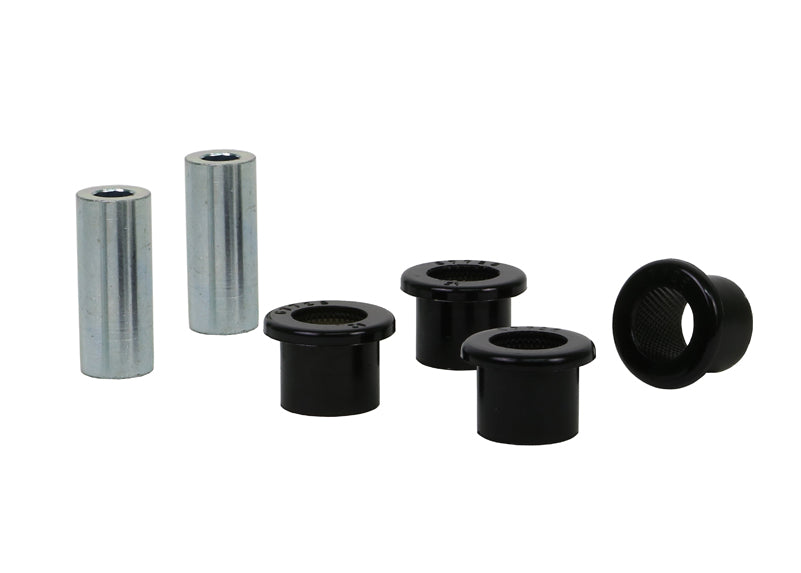

This Whiteline Front Steering Rack And Pinion Mount Bushing fits the 2015-2016 Scion FR-S Base (ZN6). Position: front. Order it as part number KSR210. In the box: 4 bushings, 2 tubes, and grease.
Wide tires, lower profiles, and sharper alignment settings load the steering rack harder than the original design expected, and the rubber bushings holding it in place are not always up to the extra work. Firmer mounts hold the rack more steadily, so steering input reaches the wheels with less lost motion.
Expect a moderate job of about 2 hours. An alignment is required after installation. Other Whiteline parts we list for the FR-S: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.
Features
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Finish: The metal is powder coated, which resists corrosion and wear.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
- Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
| Part Number | KSR210 |
| Part Name | Steering Rack Mount Bushing Kit |
| Vehicle | 2015-2016 Scion FR-S Base |
| Chassis Code | ZN6 |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Durometer | 85 |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Bushings, 2 Tubes, Grease |
| Universal or Specific Fit | Specific Fit |
| Wheel Alignment Required | Yes |
| Notes | - |
