Product Details

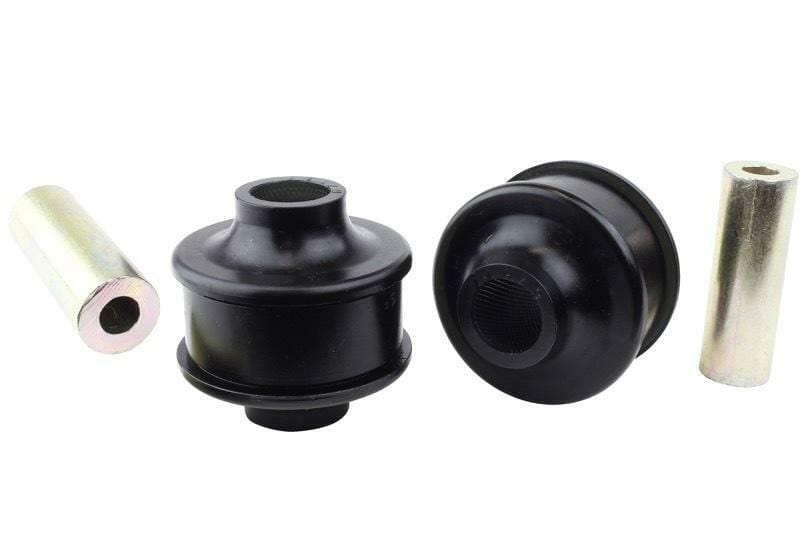

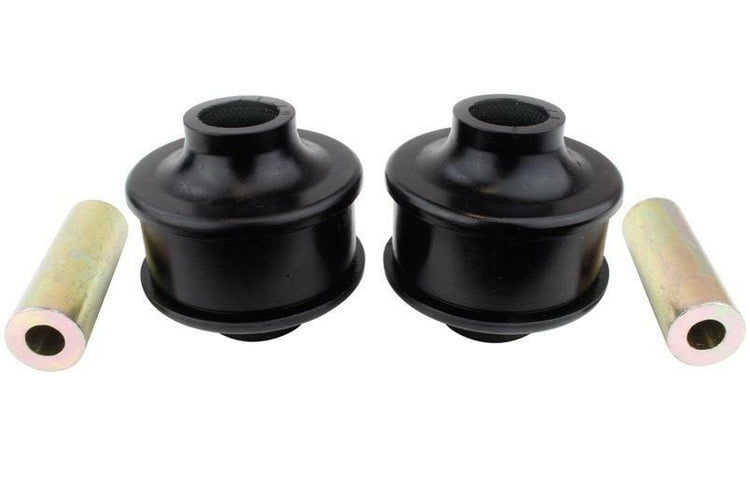

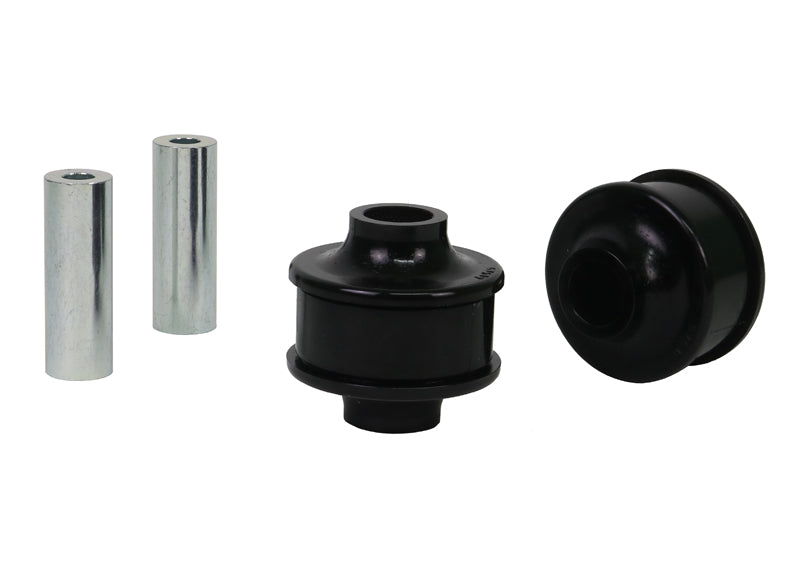

This Whiteline Front Lower Radius Arm Bushing (Standard Repl.) fits the 2008-2013 BMW 128i 1 Series (E82/E88). In the box: 2 bushings, 2 tubes, an install guide, and grease. Order it as part number W83391. It goes on the front of the vehicle.
When a radius arm bushing fails, the wheel is no longer held where it should be under braking and over bumps. This is a like-for-like replacement: it restores the original pivot behavior and ride comfort rather than changing them.
Whiteline rates the install as moderate and lists about 1.5 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the 128i 1 Series: Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Rear Subframe Mount Bushing.
Features
- Material: Polyurethane construction.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Install guide: Written install instructions are included with the part.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
Specifications
| Part Number | W83391 |
| Part Name | Radius Arm Bushing |
| Vehicle | 2008-2013 BMW 128i 1 Series |
| Chassis Code | E82/E88 |
| Bushing Color | Black |
| Bushing Inside Diameter | 25.2 mm |
| Bushing Length | 76.4 mm |
| Bushing Material | Polyurethane |
| Bushing Outside Diameter | 70.7 mm |
| Bushing Quantity | 2 |
| Durometer | 85 |
| Grade Type | Regular |
| Hardware Included | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1.5 |
| Kit Contents | 2 Bushings, 2 Tubes, Install Guide, Grease |
| Material | Polyurethane |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
