Product Details

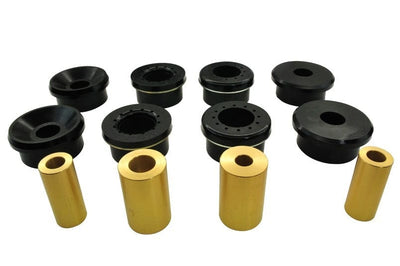

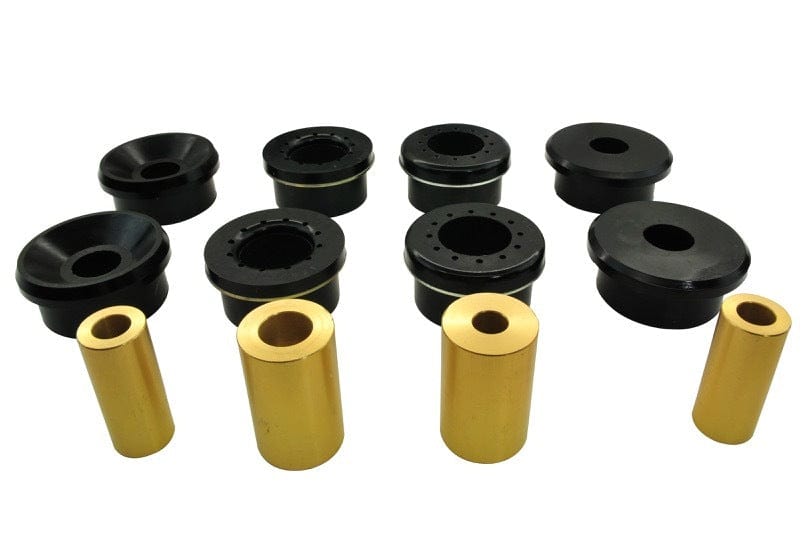

This Whiteline Rear Subframe Mount Bushing fits the 2008-2011 BMW 128i 1 Series (E82/E88). The part number is KDT917. In the box: 8 bushings, 4 tubes, an install guide, and grease. Chassis code: E82/E88. It goes on the rear of the vehicle.

Rubber subframe mounts compress and stretch every time the car loads up, and the subframe moves with them. Reducing that lost motion tends to show up as steadier tracking and a more immediate rear end in corners.

Installation is rated difficult, with about 4 hours of work listed. An alignment is required after installation. To go with it on the 128i 1 Series, see Adjustable Front Sway Bar Link, Heavy Duty 20mm Rear Sway Bar, and Front and Rear Essential Vehicle Kit.

Features

  • Corrosion protection: Plated finish keeps rust off the hardware.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Install guide: Whiteline packs an install guide with it.
  • Finish: The metal parts are powder coated for durability.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number KDT917
Part Name Subframe Mount Bushing
Vehicle 2008-2011 BMW 128i 1 Series
Chassis Code E82/E88
Bushing Color Black
Bushing Material Polyurethane
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Bushings, 4 Tubes, Install Guide, Grease
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008BMW128iRWD
2009BMW128iRWD
2010BMW128iRWD
2011BMW128iRWD
