Product Details

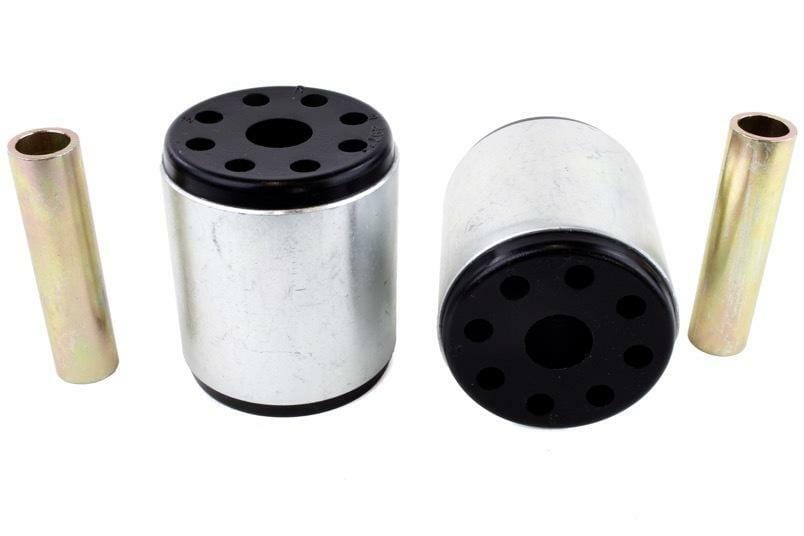

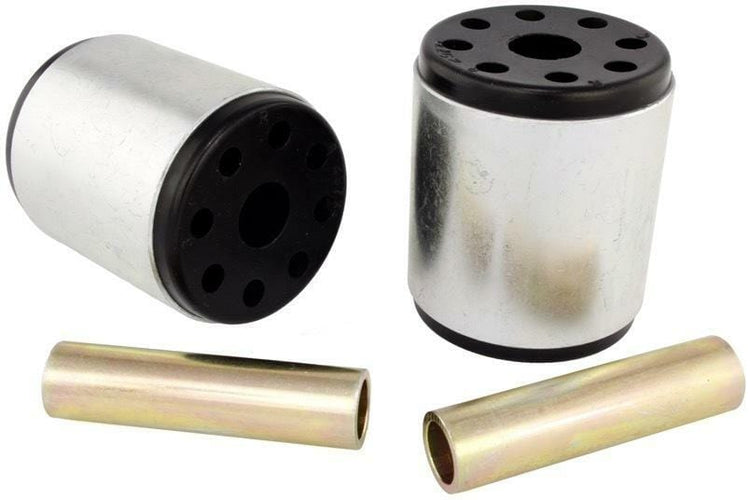

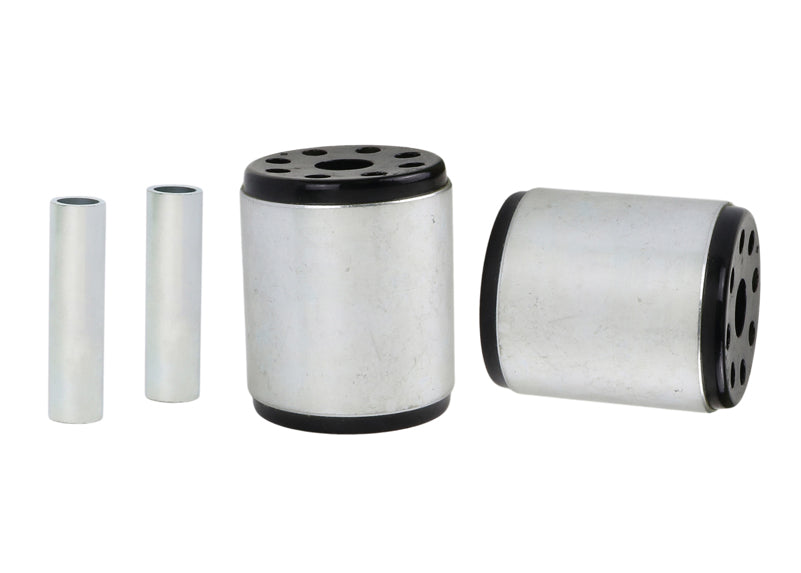

This Whiteline Front Lower Radius Arm Bushing fits the 2012 Land Rover Range Rover Autobiography, HSE Lux (L322). In the box: 2 shell bushings and 2 tubes. It goes on the front of the vehicle. The part number is W82977.

Every time the wheel moves, the radius arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 2 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Range Rover: 16mm Adjustable Front Camber Bolts, Front Sway Bar Link Assembly, and Rear Sway Bar Link.

Features

  • Bonded design: Bonding adds durability in high-load use.
  • Material: The part is made of polyurethane.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
Part Number W82977
Part Name Radius Arm Bushing
Vehicle 2012 Land Rover Range Rover Autobiography, HSE Lux
Chassis Code L322
Bushing Color Black
Bushing Inside Diameter 19 mm
Bushing Length 76 mm
Bushing Material Polyurethane
Bushing Outside Diameter 66.2 mm
Bushing Quantity 2
Durometer 85
Grade Type Regular
Hardware Included No
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012Land RoverRange Rover4WD
