Product Details

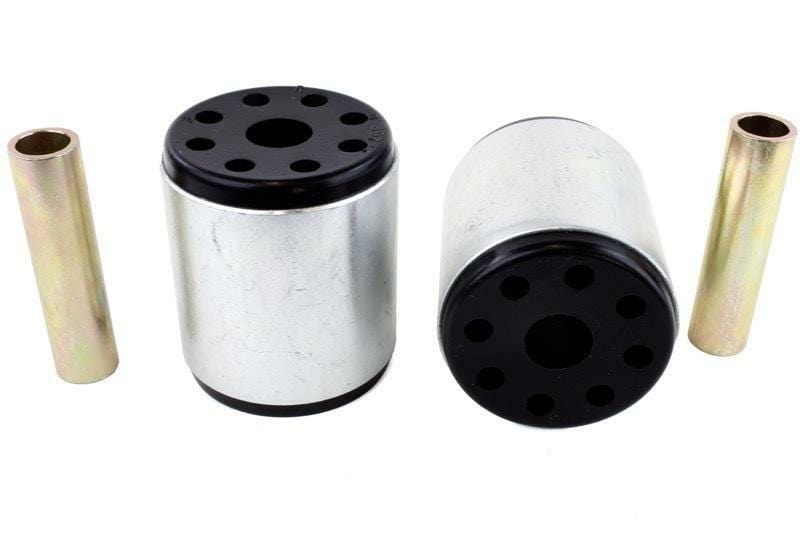

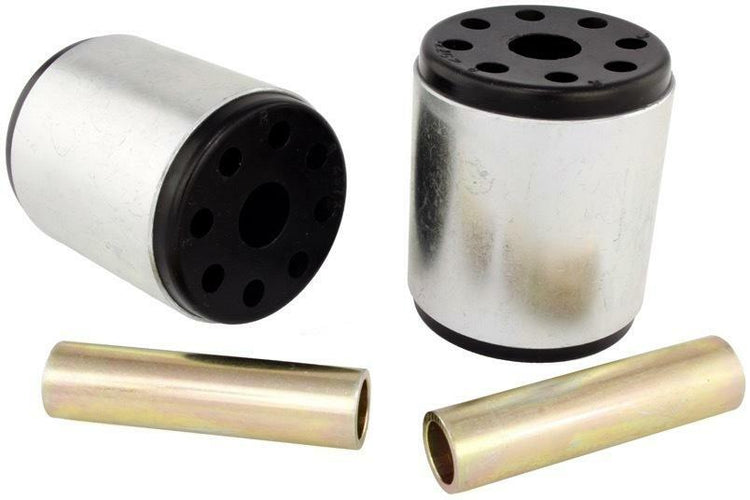

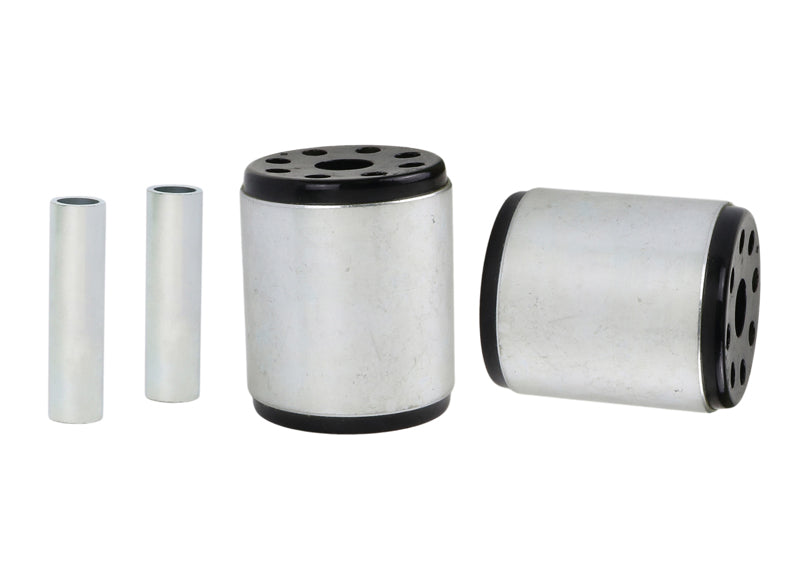

This Whiteline Front Lower Radius Arm Bushing fits the 2002-2012 Land Rover Range Rover HSE (L322). This part is for the front of the vehicle. In the box: 2 shell bushings and 2 tubes. Part number W82977.

Bushings work out of sight, but they decide how well a suspension holds its geometry. A soft or tired radius arm bushing allows play that shows up as vague steering, a wandering feel under braking, or a clunk over bumps. Fitting a firmer one takes that slack out. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a moderate job of about 2 hours. An alignment is required after installation. To go with it on the Range Rover, see 16mm Adjustable Front Camber Bolts, Front Sway Bar Link Assembly, and Rear Sway Bar Link.

Features

  • Finish: A powder coated finish resists corrosion and wear.
  • Material: Built from polyurethane.
  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Bonded design: The bushing is bonded for extra strength under heavy loads.
Specifications
Part Number W82977
Part Name Radius Arm Bushing
Vehicle 2002-2012 Land Rover Range Rover HSE
Chassis Code L322
Drivetrain 4WD
Bushing Color Black
Bushing Inside Diameter 19 mm
Bushing Length 76 mm
Bushing Material Polyurethane
Bushing Outside Diameter 66.2 mm
Bushing Quantity 2
Durometer 85
Grade Type Regular
Hardware Included No
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 2 Shell Bushings, 2 Tubes
Material Polyurethane
Vehicle Placement Front
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002Land RoverRange Rover4WD
2003Land RoverRange Rover4WD
2004Land RoverRange Rover4WD
2005Land RoverRange Rover4WD
2006Land RoverRange Rover4WD
2007Land RoverRange Rover4WD
2008Land RoverRange Rover4WD
2009Land RoverRange Rover4WD
2010Land RoverRange Rover4WD
2011Land RoverRange Rover4WD
2012Land RoverRange Rover4WD
