Product Details

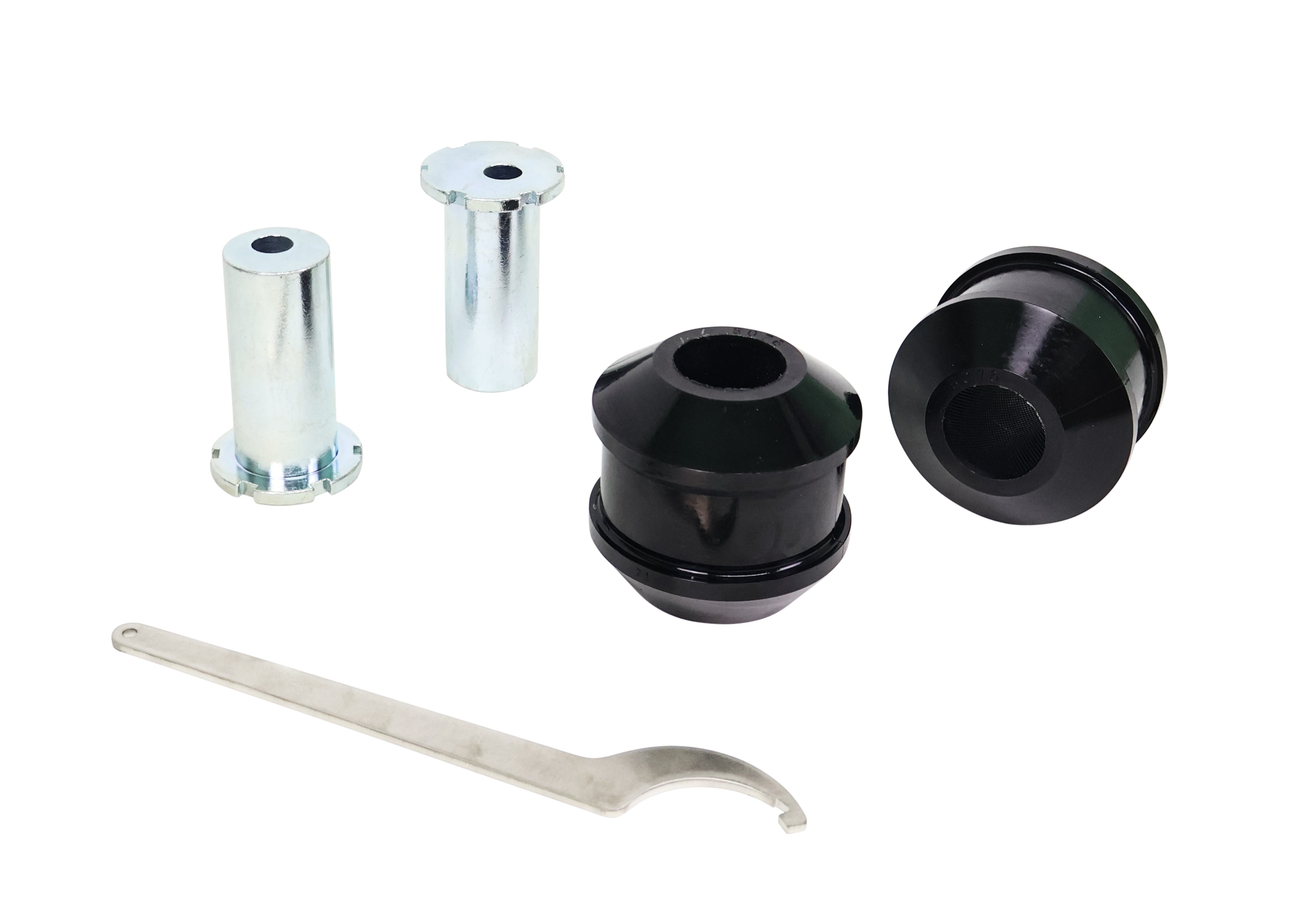

This Whiteline Front Lower Radius Arm Bushing fits the 2010-2015 BMW X1. Whiteline's note for this fit: Adds +/- 0.5 degrees Caster. It goes on the front of the vehicle. The kit contains 2 bushings and 2 tubes. The chassis code on the listing is E84. The part number is KCA430.
A standard bushing only restores what the factory built. This one is designed to change the geometry, adding positive caster and changing front anti-dive behavior, in addition to resisting the deflection that soft rubber allows.
Installation is rated moderate, with about 3 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the BMW X1: Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Rear Subframe Mount Bushing.
Features
- Material: Built from polyurethane.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Install guide: Instructions for fitting are packed in the box.
Specifications
| Part Number | KCA430 |
| Part Name | Radius Arm Bushing |
| Vehicle | 2010-2015 BMW X1 |
| Chassis Code | E84 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 70.7 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Performance |
| Inside Diameter | 12.2 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 70.7 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.5 Deg Caster |
Fitment for X1 radius arm bushings
Fits the 2010-2015 BMW X1. Each model year is listed below.
