Product Details

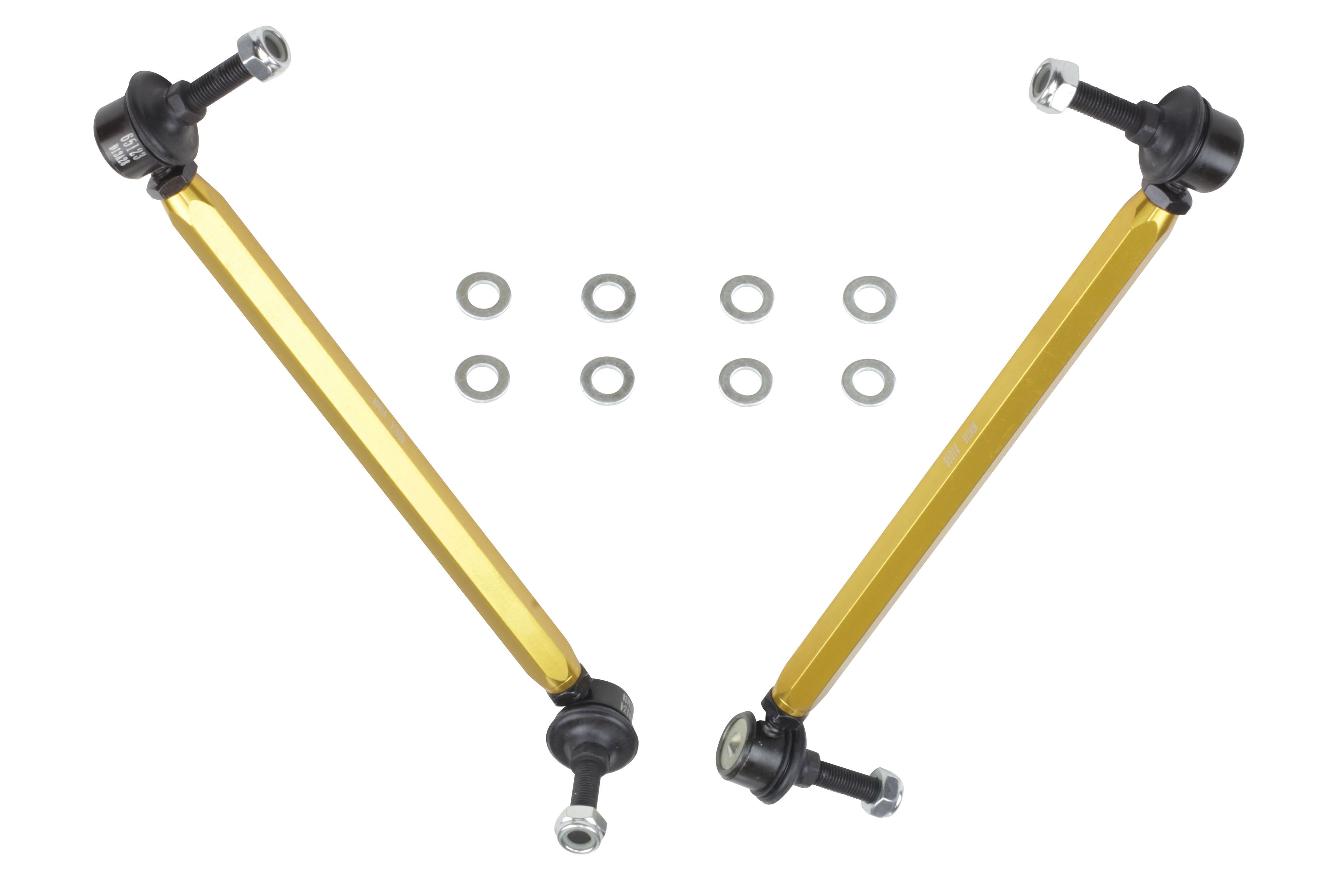

This Whiteline Adjustable Front Sway Bar Link fits the 2013-2015 BMW X1 (E84). Included: 2 links and 8 washers. Whiteline part number: KLC154. Chassis code: E84. Position: front. Application note: Adjustable extra heavy duty.

A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Expect a moderate job of about 1 hour. A wheel alignment is not required. To go with it on the BMW X1, see Adjustable Rear Sway Bar Link, Rear Subframe Mount Bushing, and Front and Rear Essential Vehicle Kit.

Features

  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Hardware: The kit includes locking nuts and washers.
  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
Specifications
Part Number KLC154
Part Name Sway Bar Link
Vehicle 2013-2015 BMW X1
Chassis Code E84
Drivetrain RWD
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 8 Washers
Length 290-315 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Front
Wheel Alignment Required No
Notes Adjustable extra heavy duty. Length 290-315mm. Bolt diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2013BMWX1RWDAdjustable extra heavy duty. Length 290-315mm. Bolt diameter 10mm.
2014BMWX1RWDAdjustable extra heavy duty. Length 290-315mm. Bolt diameter 10mm.
2015BMWX1RWDAdjustable extra heavy duty. Length 290-315mm. Bolt diameter 10mm.
