Product Details

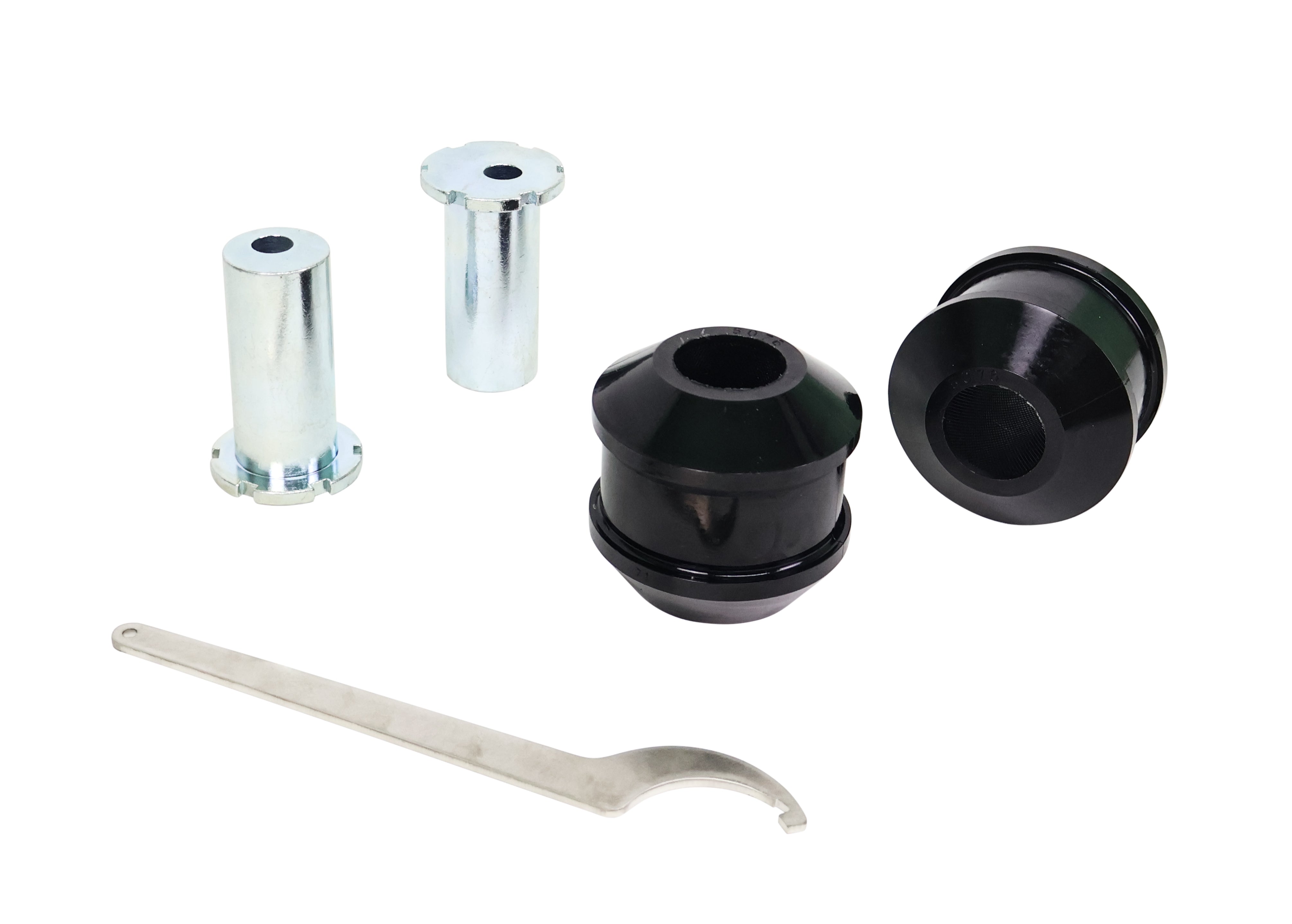

This Whiteline Front Lower Radius Arm Bushing fits the 2009-2016 BMW Z4 (E89). It goes on the front of the vehicle. Application note: Adds +/- 0.5 degrees Caster. Order it as part number KCA430. Included: 2 bushings and 2 tubes.

This kit does more than replace rubber. Its offset design moves the pivot point of the lower control arm to add positive caster and change how the front end resists dive under braking, which improves straight-line stability and turn-in feel.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the BMW Z4: Adjustable Front Sway Bar Link, Rear Sway Bar Link, and Rear Trailing Arm Lower Front Bushing.

Features

  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Material: Made from polyurethane.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
Specifications
Part Number KCA430
Part Name Radius Arm Bushing
Vehicle 2009-2016 BMW Z4
Chassis Code E89
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 70.7 mm
Bushing Quantity 2 Bushings
Grade Type Performance
Inside Diameter 12.2 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 70.7 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +/- 0.5 Deg Caster

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009BMWZ4RWDAdds +/- 0.5 Deg Caster
2010BMWZ4RWDAdds +/- 0.5 Deg Caster
2011BMWZ4RWDAdds +/- 0.5 Deg Caster
2012BMWZ4RWDAdds +/- 0.5 Deg Caster
2013BMWZ4RWDAdds +/- 0.5 Deg Caster
2014BMWZ4RWDAdds +/- 0.5 Deg Caster
2015BMWZ4RWDAdds +/- 0.5 Deg Caster
2016BMWZ4RWDAdds +/- 0.5 Deg Caster
