Product Details

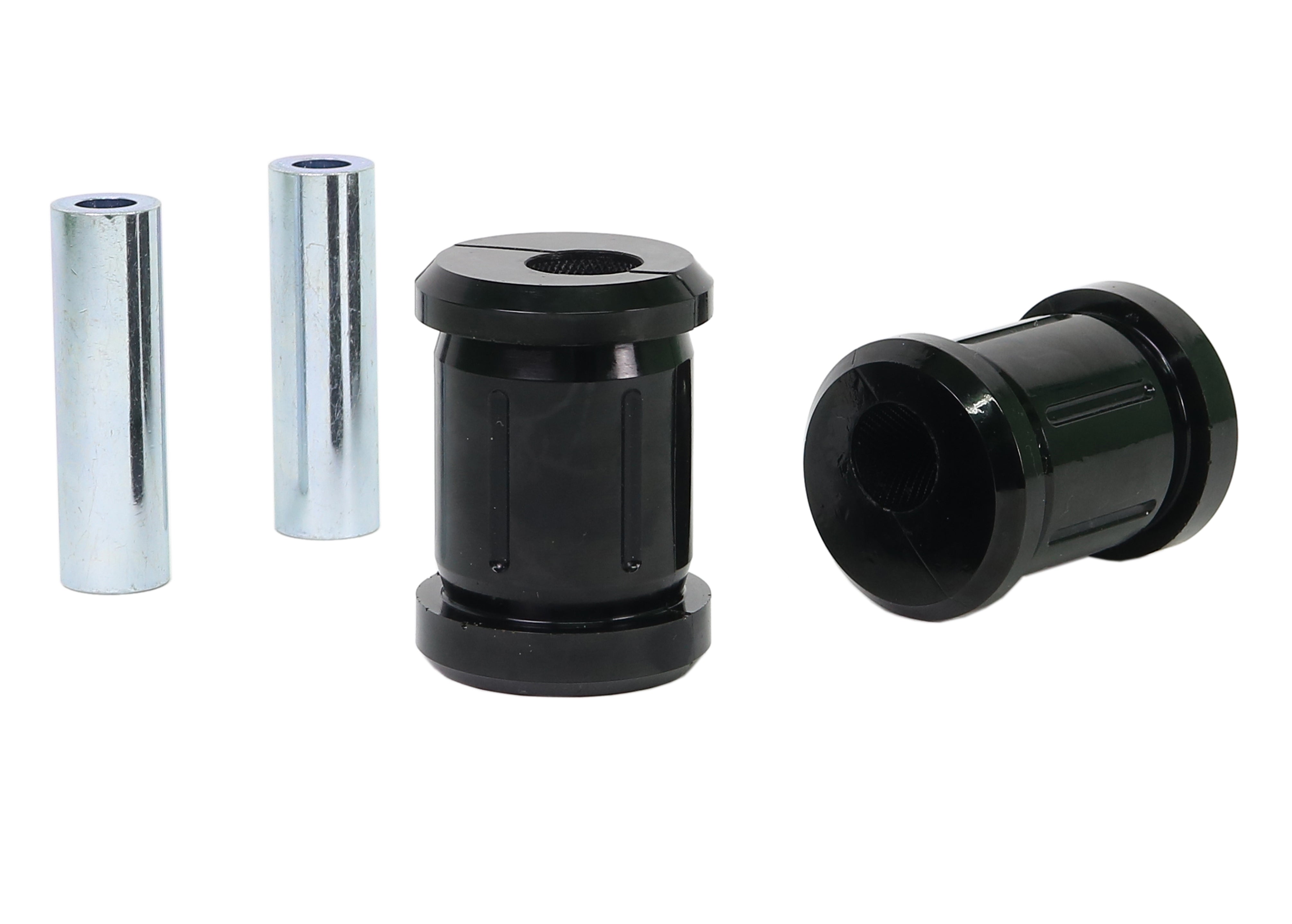

This Whiteline Front Lower Inner Rear Control Arm Bushing Kit (Camber Correction) fits the 2007-2009 Toyota FJ Cruiser (J150). Whiteline's note for this fit: Alignment Correction. 0.6 degrees of Camber Adjustment. It goes on the front of the vehicle. Order it as part number KCA509. The kit contains 2 bushings and 2 tubes.
Camber is the sideways lean of the wheel when viewed from the front. An offset control arm bushing places the pivot slightly off-center, which shifts the wheel's camber by a small, fixed amount without replacing the arm. On a lowered car that is often enough to bring the tires back toward an even footprint.
Installation is rated difficult, with about 3 hours of work listed. Get the car aligned once it is back on the ground. Working on the same car? We also list Rear Sway Bar Link, Front Sway Bar Link, and Front Steering Rack And Pinion Mount Bushing for the FJ Cruiser.
Features
- Install guide: Whiteline packs an install guide with it.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Material: Built from polyurethane.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
| Part Number | KCA509 |
| Part Name | Control Arm Bushings |
| Vehicle | 2007-2009 Toyota FJ Cruiser |
| Chassis Code | J150 |
| Drivetrain | 4WD/RWD |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Outer Diameter | 56 mm |
| Bushing Quantity | 2 Bushings |
| Grade Type | Performance |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Alignment Correction; 0.6 Degrees of Camber Adjustment. |
