Product Details

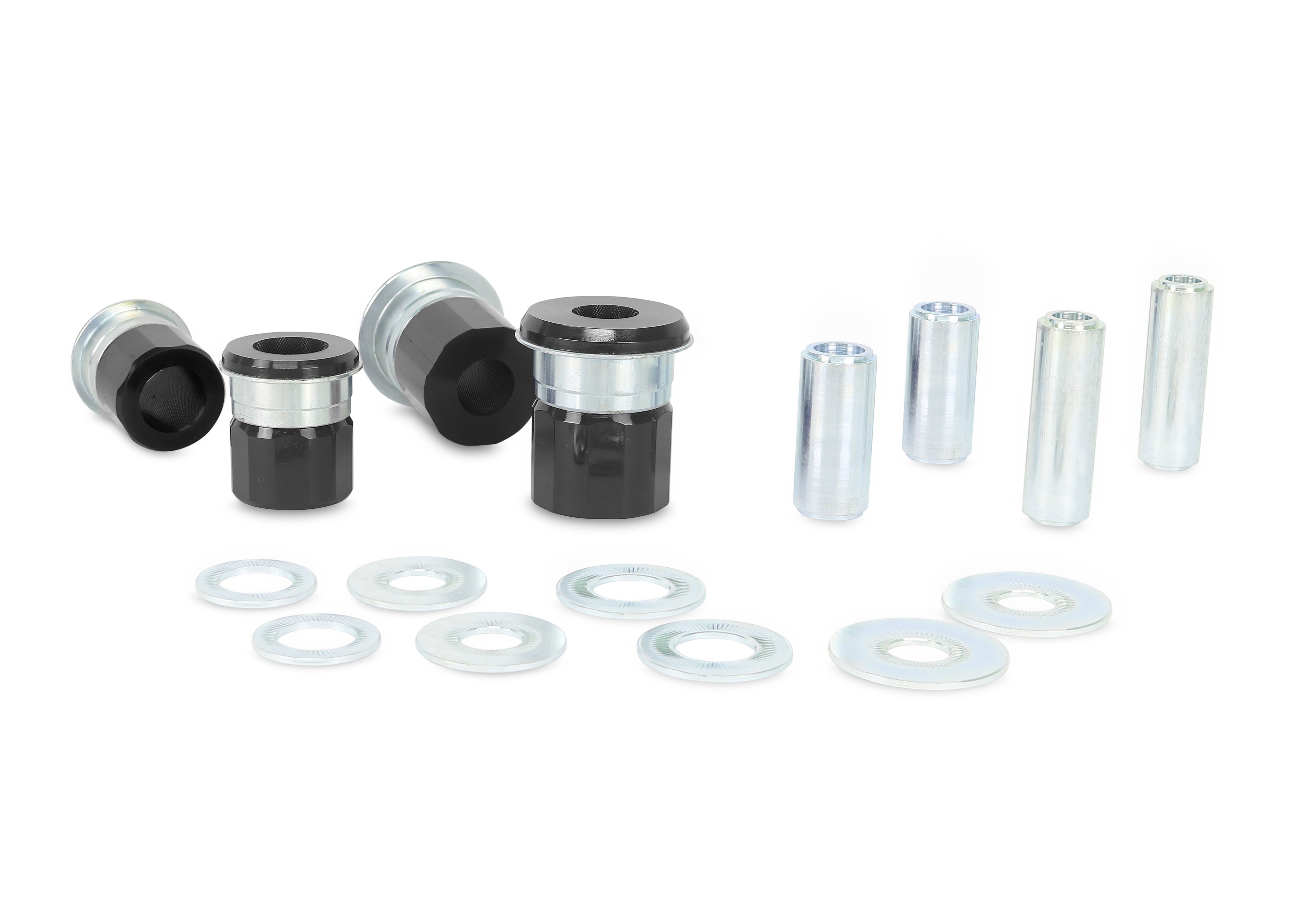

This Whiteline Front Lower Inner Control Arm Bushing Kit fits the 2010-2014 Toyota FJ Cruiser (J150). Included: 4 bushings, 4 tubes, and 8 washers. Position: front. Part number W53522.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 4 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the FJ Cruiser: Rear Sway Bar Link, Front Sway Bar Link, and Front Steering Rack And Pinion Mount Bushing.
Features
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Material: Built from polyurethane.
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
- Install guide: Whiteline packs an install guide with it.
Specifications
| Part Number | W53522 |
| Part Name | Control Arm Bushings |
| Vehicle | 2010-2014 Toyota FJ Cruiser |
| Chassis Code | J150 |
| Bushing 1 Inner Diameter | 16.2 mm |
| Bushing 1 Outer Diameter | 50.8 mm |
| Bushing 2 Inner Diameter | 21.5 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing Quantity | 4 Bushings |
| Color | Black |
| Durometer | 85 |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 4 Bushings, 4 Tubes, 8 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Mounting Type | Press In |
| Set | Yes |
| Universal or Specific Fit | Specific Fit |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | - |
