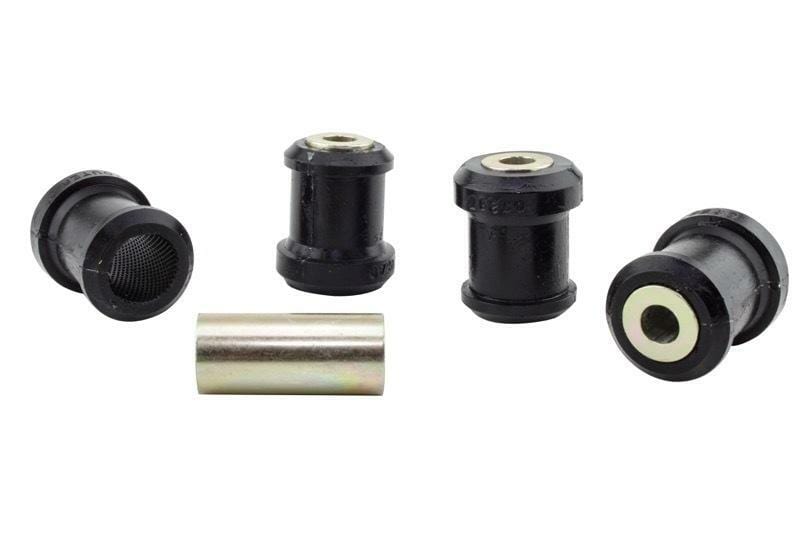

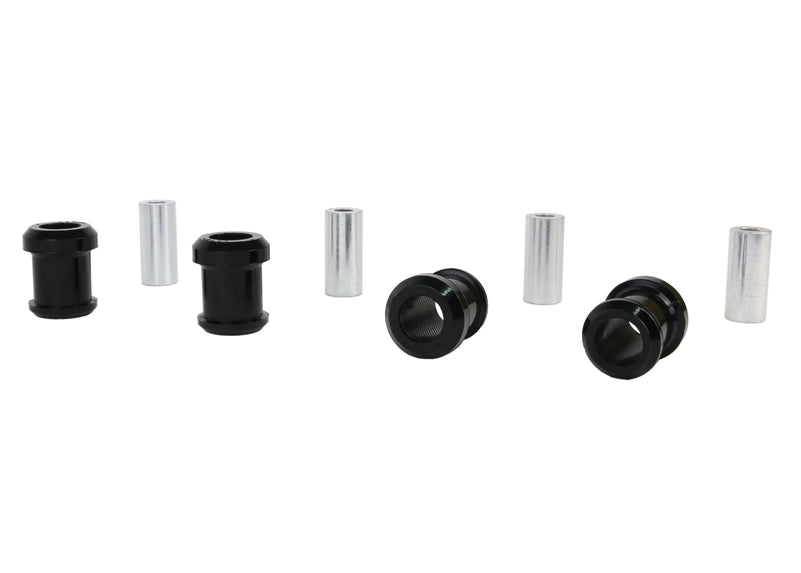

This Whiteline Front Upper Control Arm Bushing Kit (Standard Repl.) fits the 2006 Mazda MX-5 Miata Base, Club Spec (NC). Whiteline part number: W53415. Placement: front. Application note: Standard Replacement. In the box: 4 bushings and 4 tubes.

Control arm bushings wear out quietly. Over time the rubber hardens, cracks, or tears, and the arm starts to move in ways its designers did not intend, which shows up as clunks, vague steering, or uneven tire wear. A standard replacement bushing puts the pivot back to the way the car was built.

Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. To go with it on the MX-5 Miata, see Adjustable Rear Sway Bar Link, Adjustable Sway Bar Vehicle Link Kit, and Adjustable Front Sway Bar Link.

Features

  • Material: Made from polyurethane.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
Part Number W53415
Part Name Control Arm Bushing
Vehicle 2006 Mazda MX-5 Miata Base, Club Spec
Drivetrain RWD
Chassis Code NC
Bushing 1 Inner Diameter 12.2 mm
Bushing 1 Outer Diameter 33.1 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Standard Replacement

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006MazdaMX-5 MiataRWDStandard Replacement
