Product Details

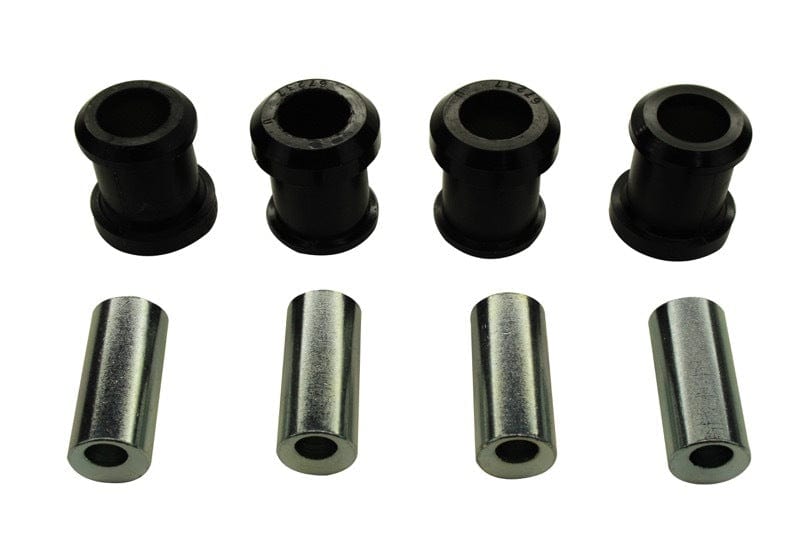

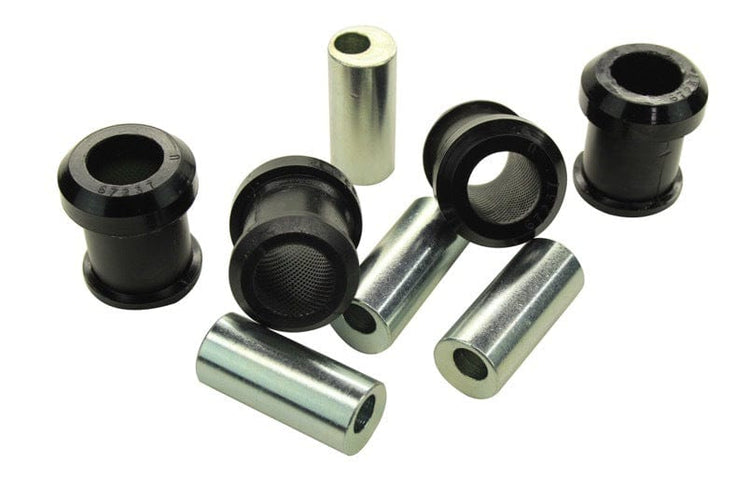

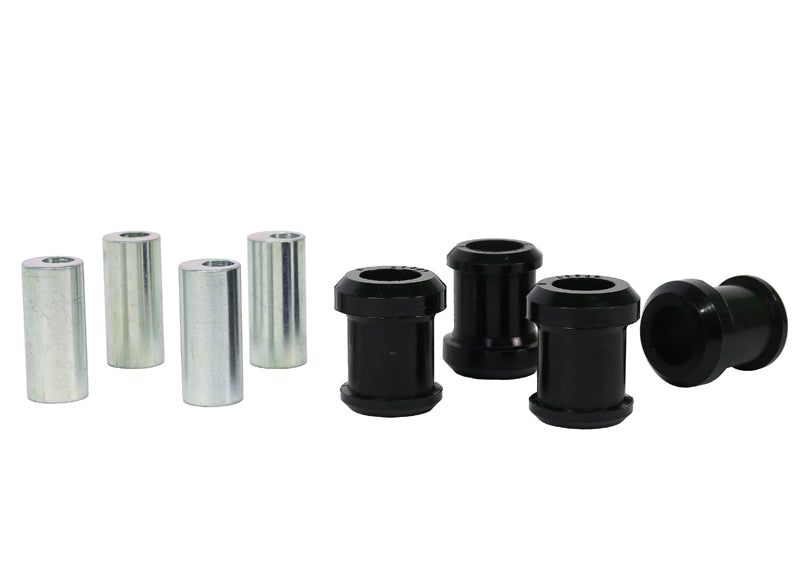

This page covers the Whiteline Front Upper Control Arm Bushing Kit for the 2011-2012 Mazda MX-5 Miata Special Edition. Included: 4 bushings and 4 tubes. It is listed for the NC chassis. Trim named on the listing: Special Edition. Application note: Adds 0.5 degrees Camber. Placement: front. Whiteline part number: KCA421.
Camber is the sideways lean of the wheel when viewed from the front. An offset control arm bushing places the pivot slightly off-center, which shifts the wheel's camber by a small, fixed amount without replacing the arm. On a lowered car that is often enough to bring the tires back toward an even footprint.
Expect a moderate job of about 3 hours. Plan on a wheel alignment afterward. To go with it on the MX-5 Miata, see Adjustable Rear Sway Bar Link, Adjustable Sway Bar Vehicle Link Kit, and Adjustable Front Sway Bar Link.
Features
- Finish: The metal is powder coated, which resists corrosion and wear.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Material: The part is made of polyurethane.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Camber adjustment: Designed to optimize camber alignment and offset the effect of body roll and tire roll in corners.
Specifications
| Part Number | KCA421 |
| Part Name | Control Arm Bushing |
| Vehicle | 2011-2012 Mazda MX-5 Miata Special Edition |
| Drivetrain | RWD |
| Chassis Code | NC |
| Bushing 1 Inner Diameter | 12.5 mm |
| Bushing 1 Outer Diameter | 33.1 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Performance |
| Inside Diameter | 10.2 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 33.1 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds 0.5Degree Camber |
