Product Details

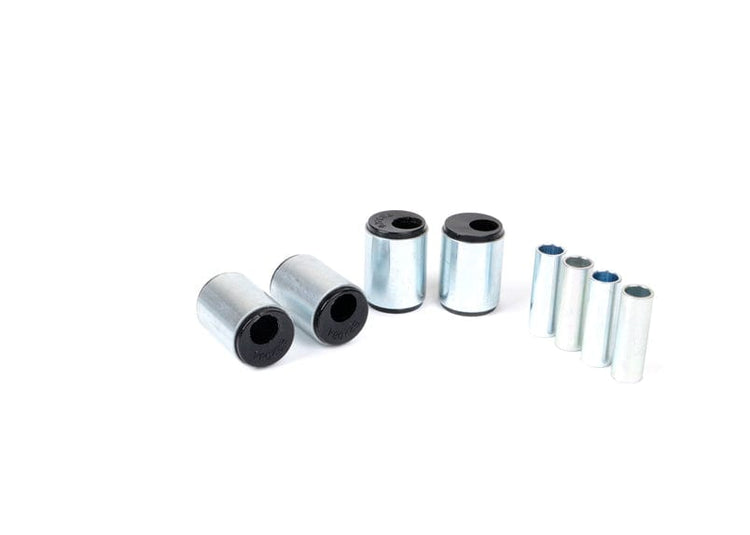

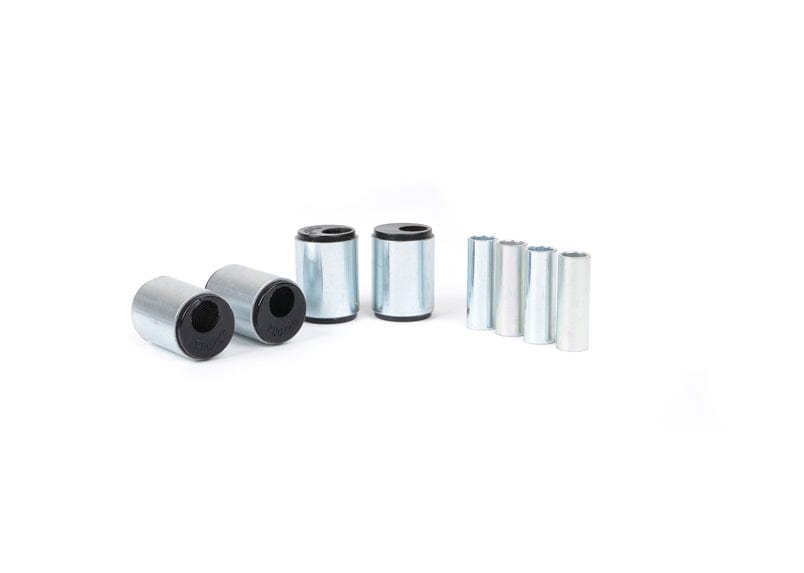

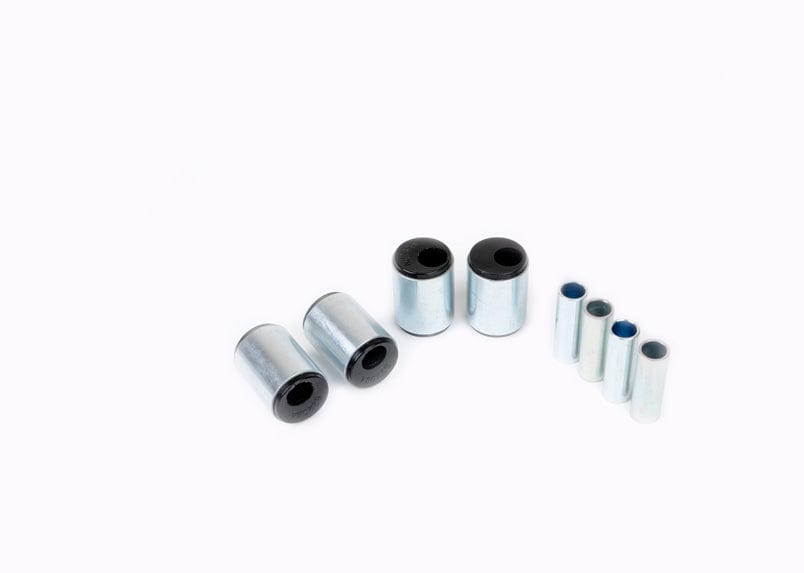

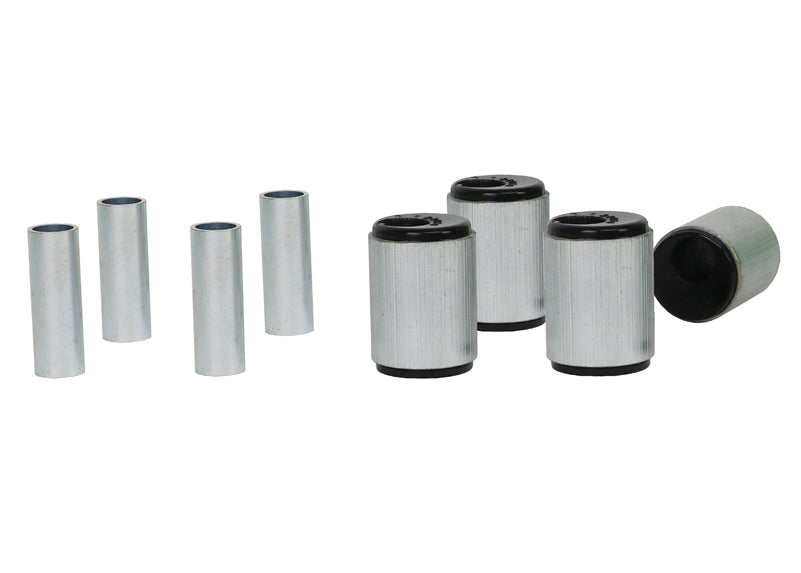

This Whiteline Front Upper Control Arm Bushing Kit fits the 2003 Mazda MX-5 Miata Shinsen (NB). In the box: 4 bushings and 4 tubes. Placement: front. Application note: Adds 0.5 degrees Camber: "Approved for Spec Miata in both SCCA and NASA". The part number is KCA452.

Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.

Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front Strut Tower Brace for the MX-5 Miata.

Features

  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Camber adjustment: Designed to optimize camber alignment and offset the effect of body roll and tire roll in corners.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Finish: A powder coated finish resists corrosion and wear.
  • Install guide: Written install instructions are included with the part.
Specifications
Part Number KCA452
Part Name Control Arm Bushing
Vehicle 2003 Mazda MX-5 Miata Shinsen
Chassis Code NB
Bushing 1 Inner Diameter 15 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Inside Diameter 14.3 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 40.3 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2003MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
