Product Details

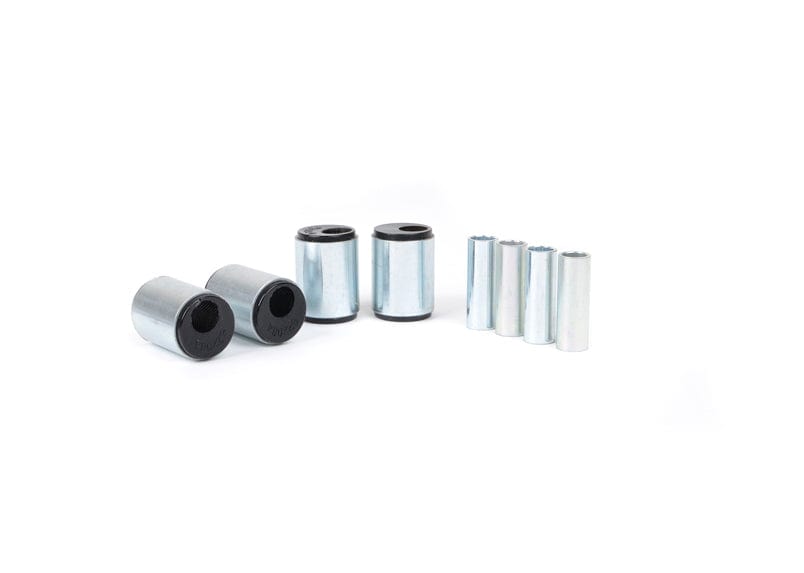

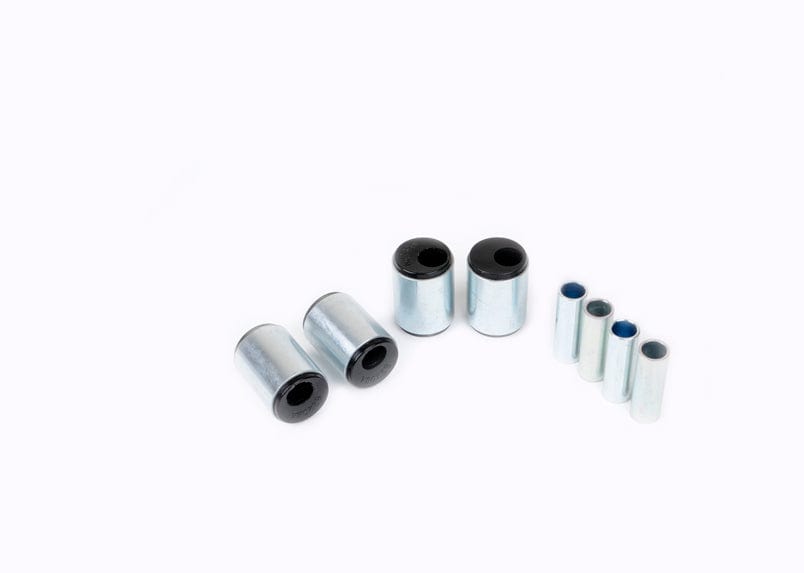

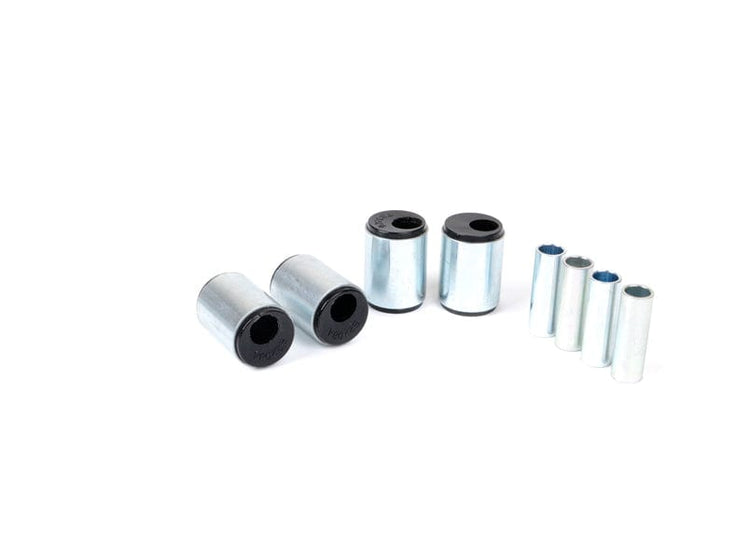

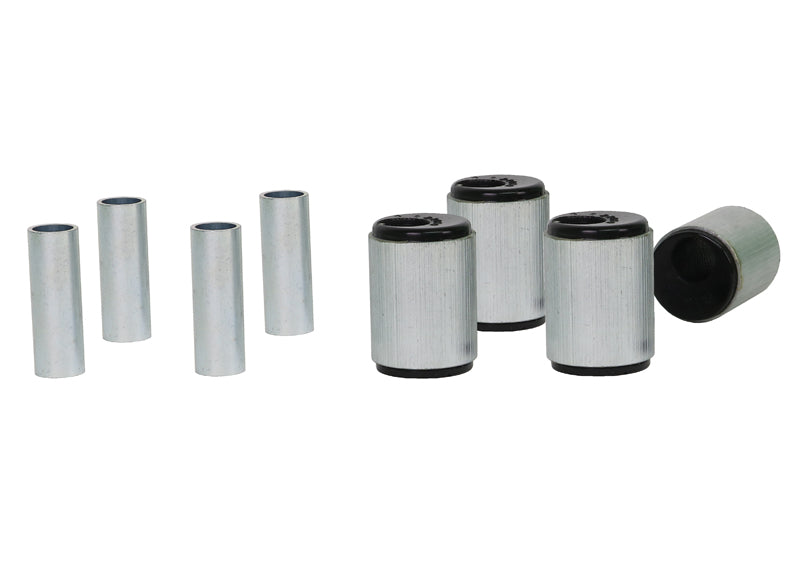

This Whiteline Front Upper Control Arm Bushing Kit fits the 2000-2005 Mazda MX-5 Miata LS (NB). It goes on the front of the vehicle. In the box: 4 bushings and 4 tubes. Application note: Adds 0.5 degrees Camber: "Approved for Spec Miata in both SCCA and NASA". The part number is KCA452.

Most factory control arm bushings are centered and fixed. An offset one is built so the arm sits at a slightly different angle, which changes camber, and the firmer material stops that setting drifting under load.

Installation is rated moderate, with about 3 hours of work listed. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front Strut Tower Brace for the MX-5 Miata.

Features

  • Material: The part is made of polyurethane.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Camber adjustment: Helps hold the tire flatter on the road by correcting camber changes through roll.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
Part Number KCA452
Part Name Control Arm Bushing
Vehicle 2000-2005 Mazda MX-5 Miata LS
Chassis Code NB
Bushing 1 Inner Diameter 15 mm
Bushing 1 Outer Diameter 40.3 mm
Bushing Quantity 4 Bushings
Grade Type Performance
Inside Diameter 14.3 mm
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 4 Bushings, 4 Tubes
Material Polyurethane
Mounting Hardware Included No
Outside Diameter 40.3 mm
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2000MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
2001MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
2002MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
2003MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
2004MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
2005MazdaMX-5 MiataRWDAdds 0.5Degree Camber - "Approved for Spec Miata in both SCCA and NASA"
