Product Details

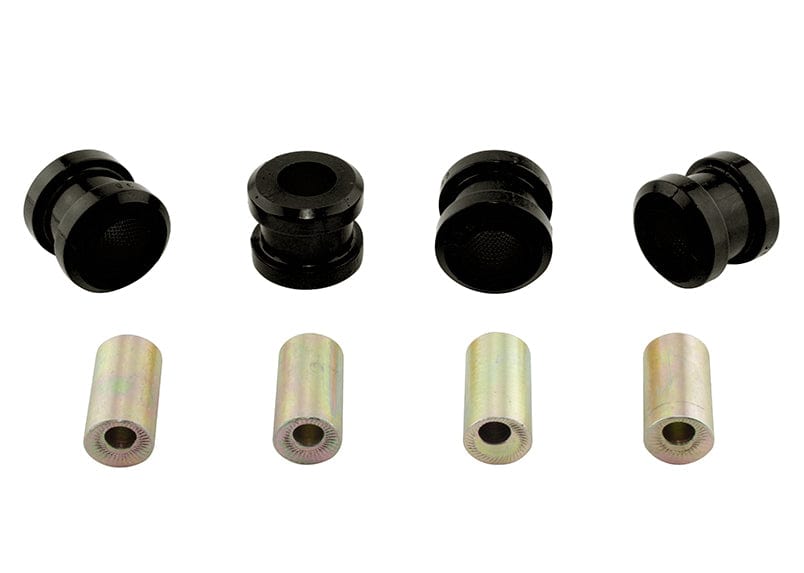

This Whiteline Front Upper Control Arm Bushing Kit fits the 1994-2001 Acura Integra LS (DC2/DB8). It goes on the front of the vehicle. Order it as part number KCA378. The kit contains 4 bushings and 4 tubes.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect a moderate job of about 3 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Integra: 2-Point Adjustable 22mm Rear Sway Bar, Front Roll Center Correction Kit, and 24mm Rear Sway Bar Bushing Kit.
Features
- Finish: Powder coating covers the metal for protection against chips and rust.
- Camber adjustment: Helps hold the tire flatter on the road by correcting camber changes through roll.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Material: Made from polyurethane.
Specifications
| Part Number | KCA378 |
| Part Name | Control Arm Bushing |
| Vehicle | 1994-2001 Acura Integra LS |
| Chassis Code | DC2/DB8 |
| Bushing 1 Inner Diameter | 10.2 mm |
| Bushing 1 Outer Diameter | 34.4 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Performance |
| Inside Diameter | 12.2 mm |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 4 Bushings, 4 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 34.4 mm |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | 34mm OD bushing adds 1.0 Degrees |
